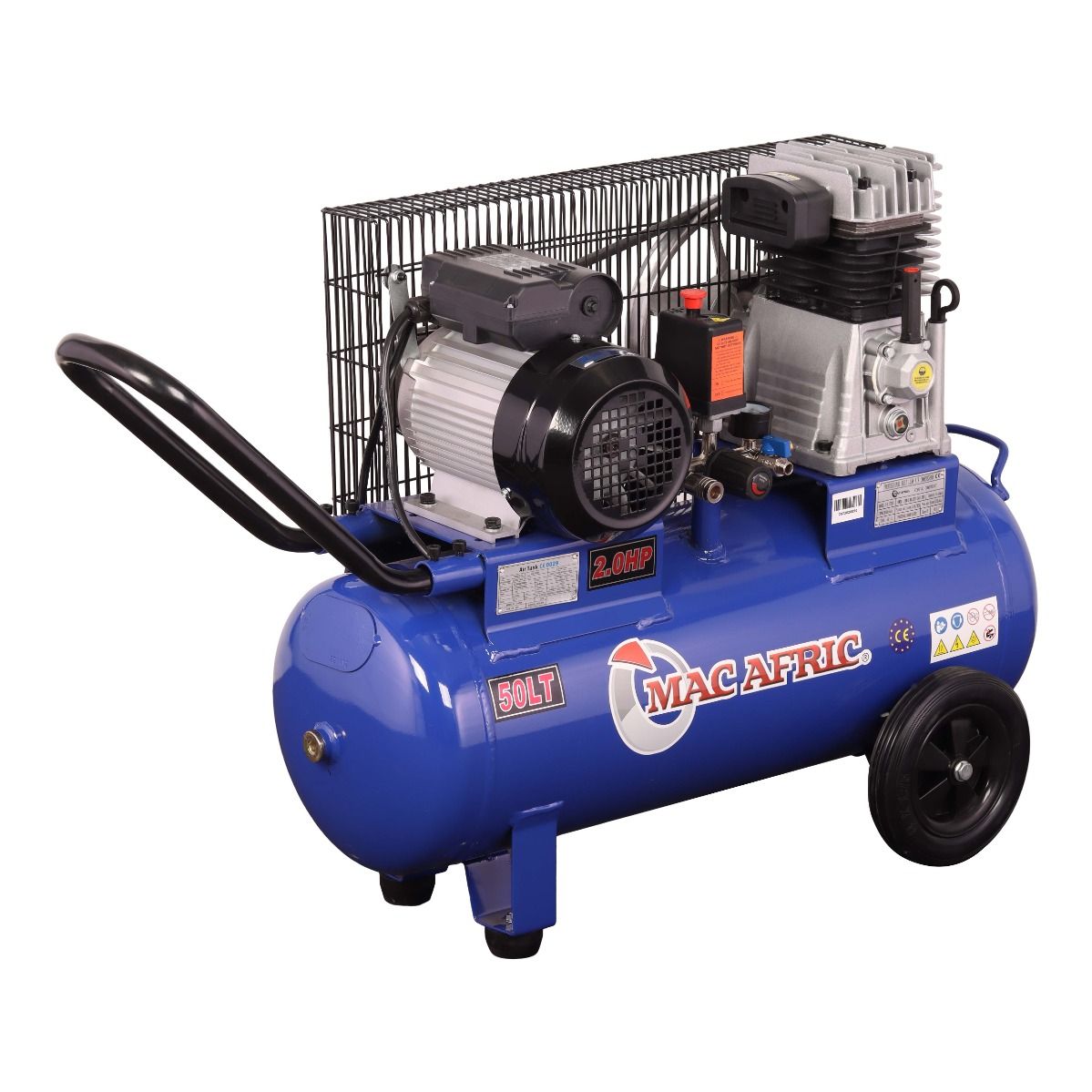

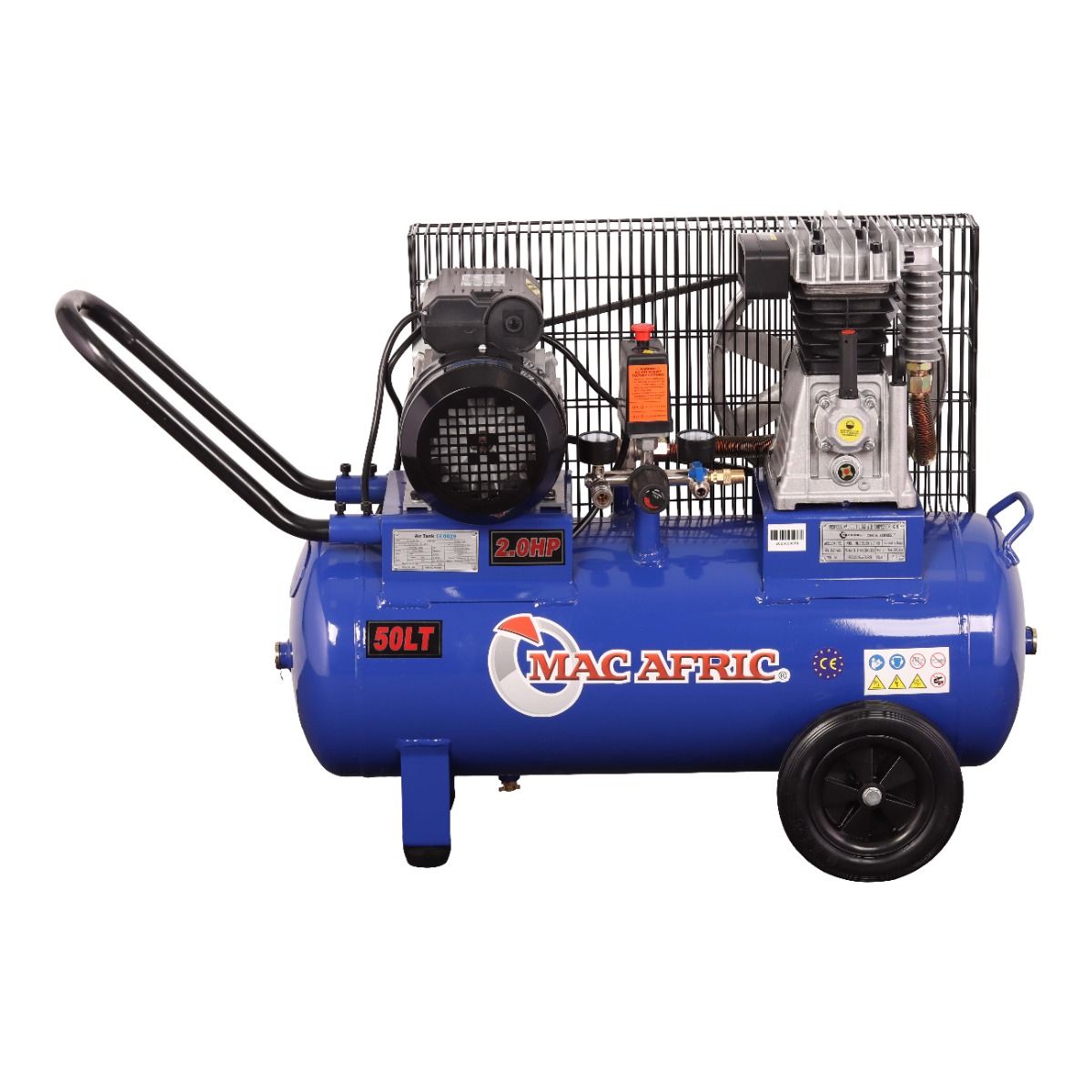

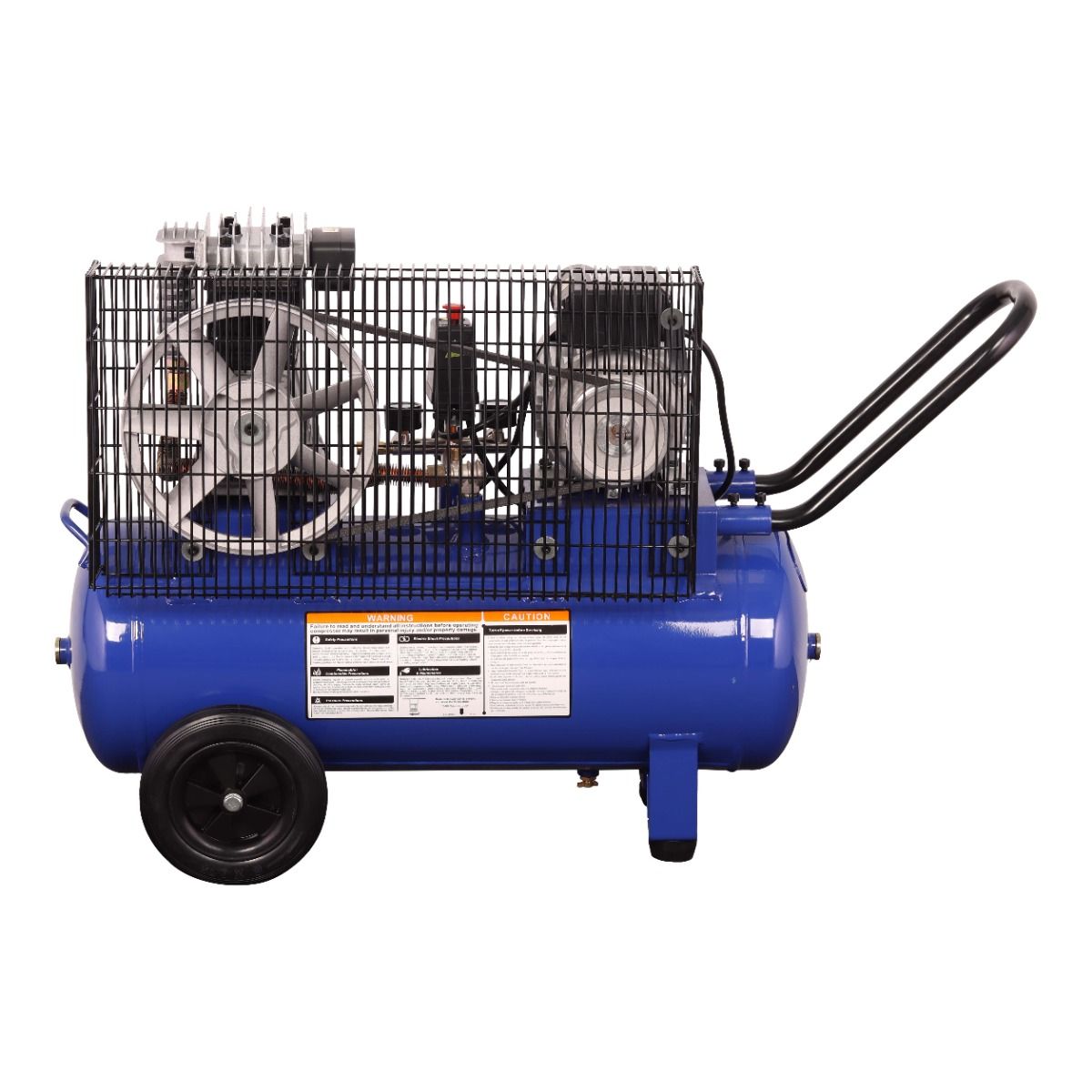

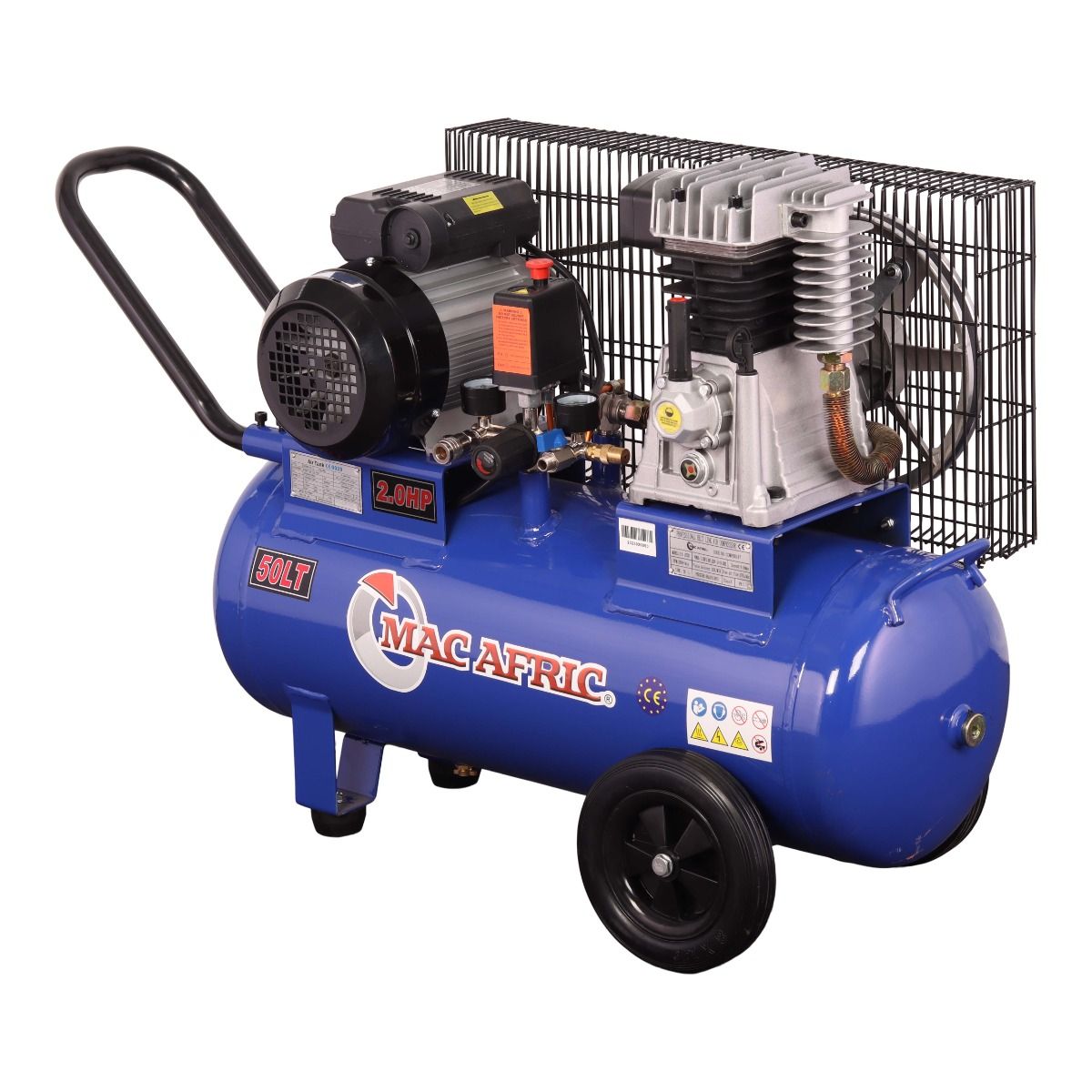

MAC AFRIC 50 Litre 1.5 KW (2 HP) 230 V Belt Driven Compressor
This MAC AFRIC 50L Belt Drive compressor is a great value, high-performance compressor. Ideal for the serious DIY enthusiast who prefers the reliability of belt drive technology. Features lower noise compared to direct drive models, air regulator & gauge, sturdy handle & wheels for easy mobility.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 50 L |
| Motor Output | 1.5 KW (2 HP) |
| Outlet Air Flow | 6 CFM (170 L/MIN) |
| Max Tank Pressure | 8 BAR (116 PSI) |
| Amperage | 9.4 A |
| Compressor Type | Belt Driven |
| RPM | 2 850 RPM |
| Replacement Head | COMPRH013 |
| Fuel Type | NA |
| Voltage | 230 V @ 50 HZ |
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 86.50 |
| Package Width (cm) | 38.00 |
| Package Height (cm) | 64.00 |
| Package Weight (kg) | 59.000000 |
| Compressor Type | Belt Driven |
