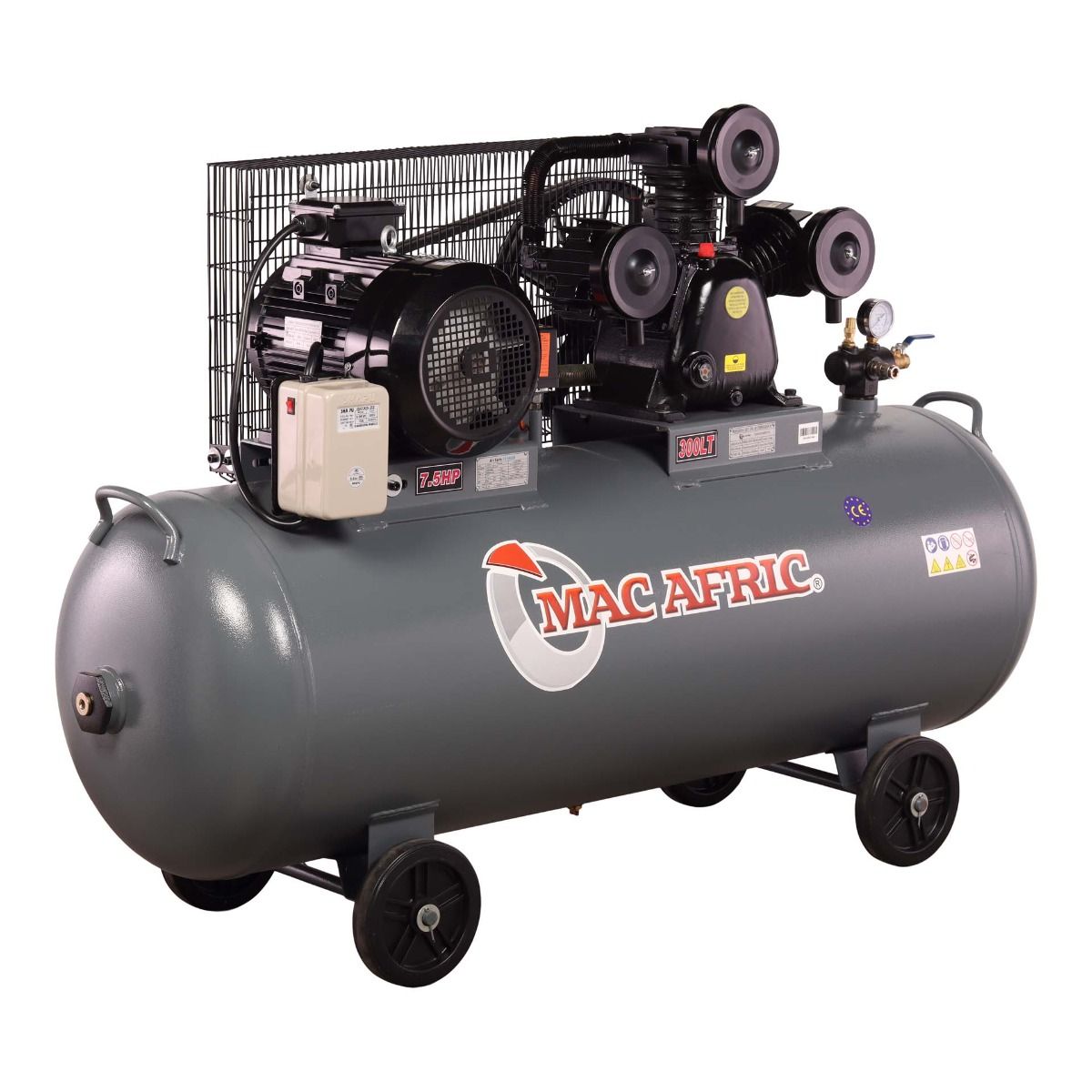

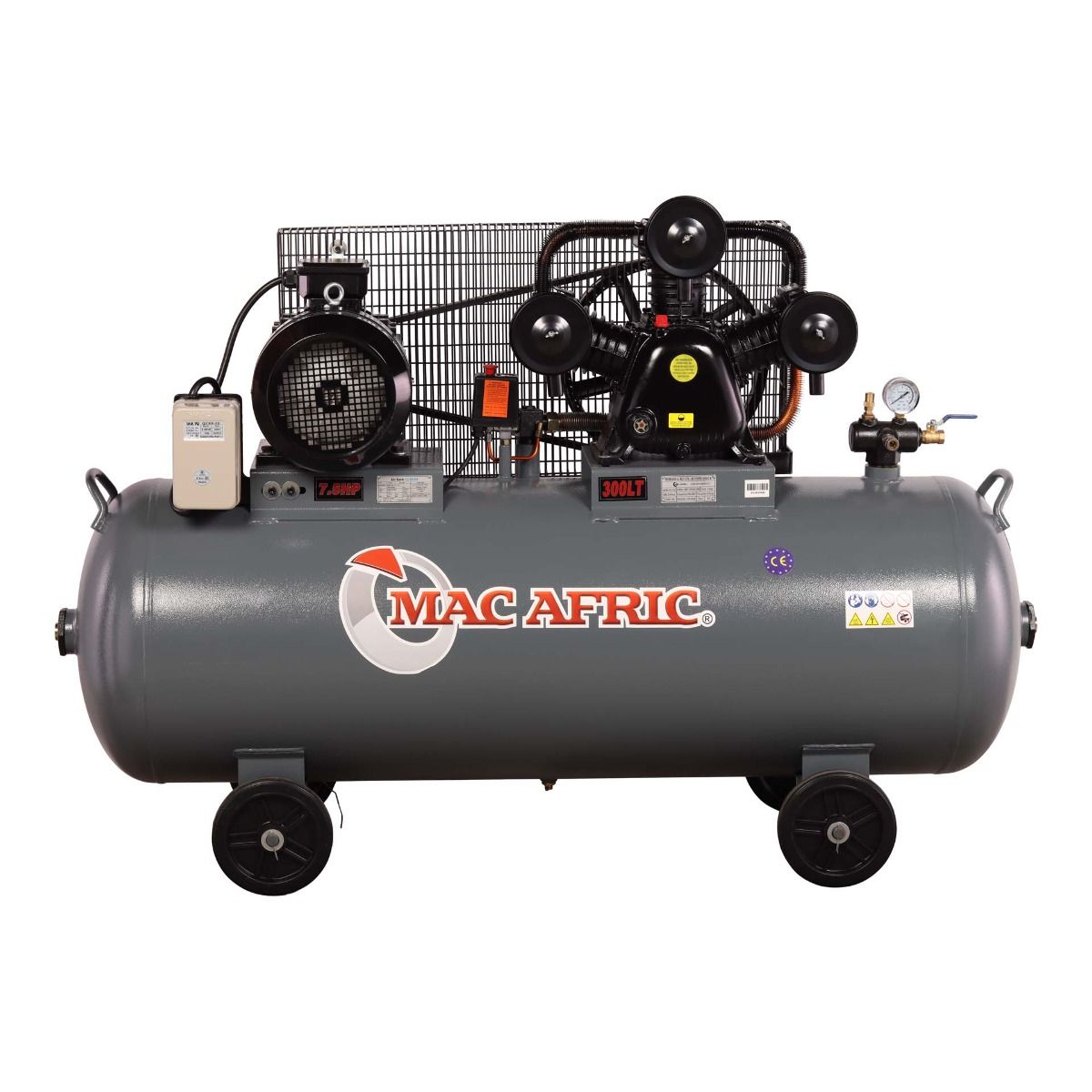

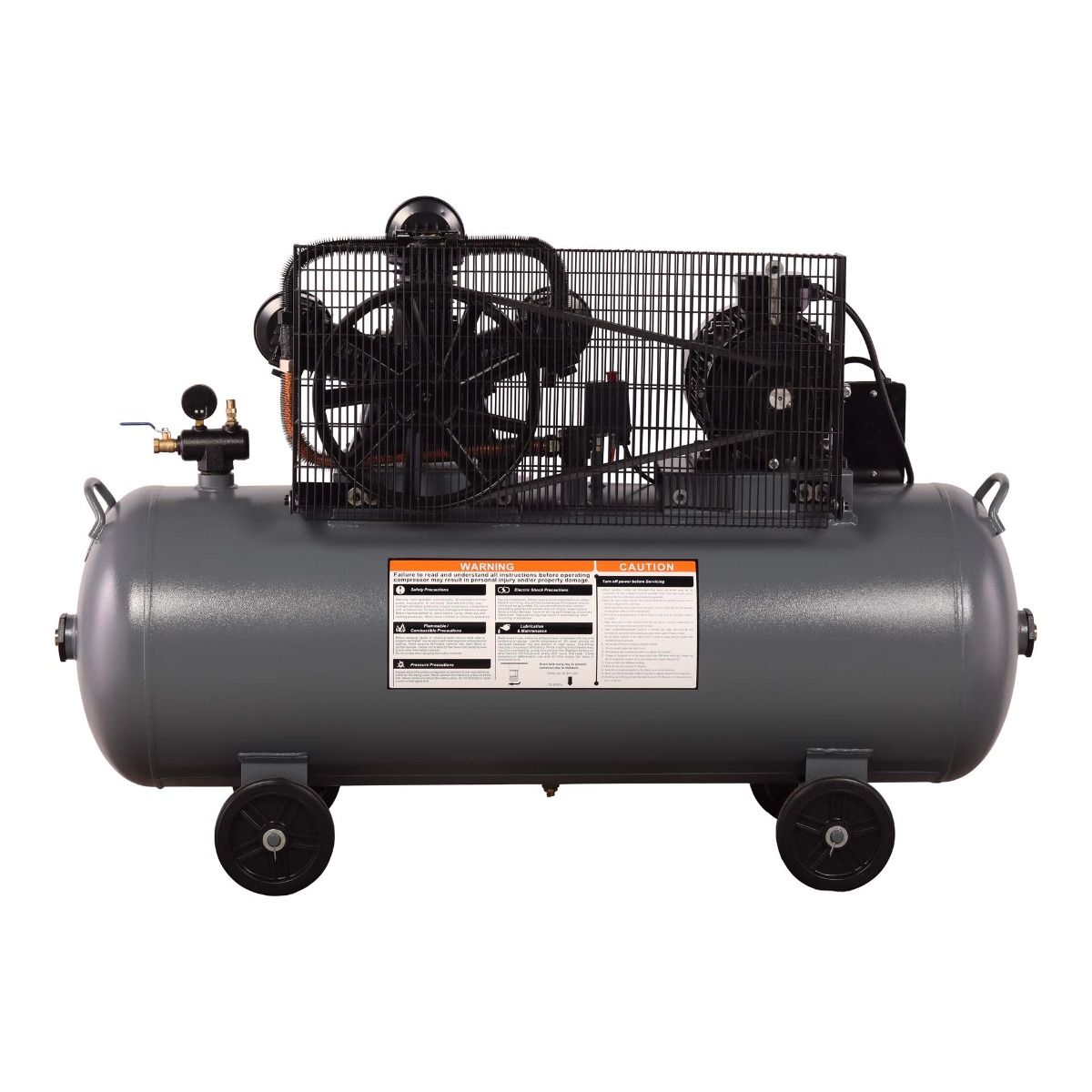

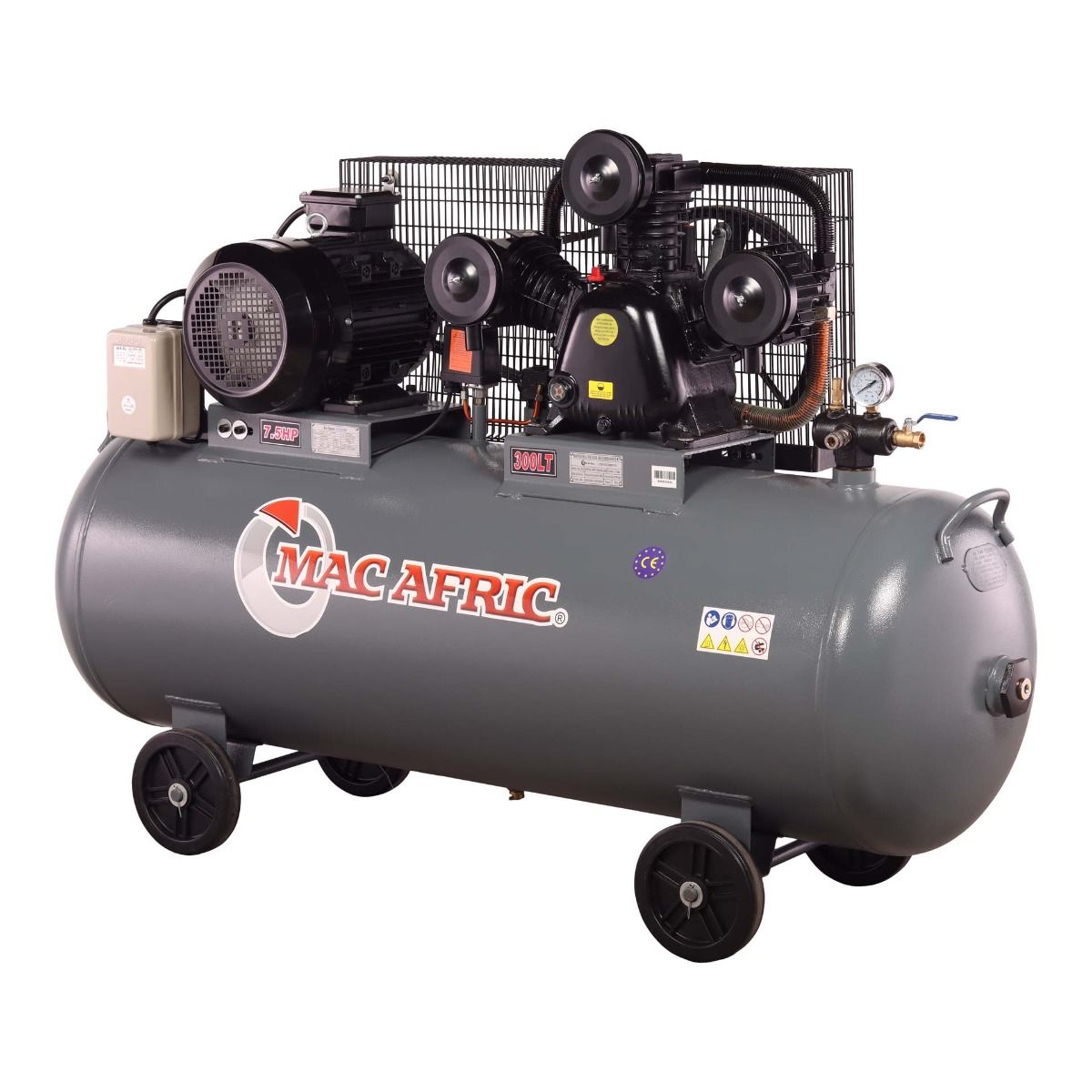

MAC AFRIC 300 Litre 5.5 KW (7.5 HP) 380 V Belt Driven "V-Type" Compressor
Features a powerful silent running copper three-phase motor. Aluminium 2-stage (v-type) air pump with cast iron cylinder sleeves. 2-Stage air pumps allow intermittent cooling in between stages as well as increased air delivery and maximum pressure. Ideal size for most workshops.
| Package Length (cm) | 165.00 |
|---|---|
| Package Width (cm) | 53.00 |
| Package Height (cm) | 103.00 |
| Package Weight (kg) | 220.000000 |
| Tank Capacity | 300 L |
| Motor Output | 5.5 KW (7.5 HP) |
| Outlet Air Flow | 27.49 CFM (778 L/MIN) |
| Max Tank Pressure | 8 Bar (116 PSI) |
| Amperage | 11.5 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 850 RPM |
| Voltage | 380 V @ 50 HZ |
Compressor Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 300 L |
| Rated Power | 5500 W |
| Peak Power | 7.5 HP |
| Motor Speed | 2850 R.P.M |
| Pump Speed | 848 R.P.M |
| Cylinder Bore | 80 mm |
| Piston Stroke | 60 mm |
| Max Air Delivery | 27.49 CFM (778 L/MIN) |
| Output Delivery @ 4 BAR | 25.92 CFM (734 L/MIN) |
| Output Delivery @ 6 BAR | 24.58 CFM (696 L/MIN) |
| Output Delivery @ 8 BAR | 23.73 CFM (672 L/MIN) |
| Max Tank Pressure | 8 BAR (116 PSI) |
| Amperage | 11.5 A |
Expert Advice
- The air delivery test is conducted at sea level (0–10 meters). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
