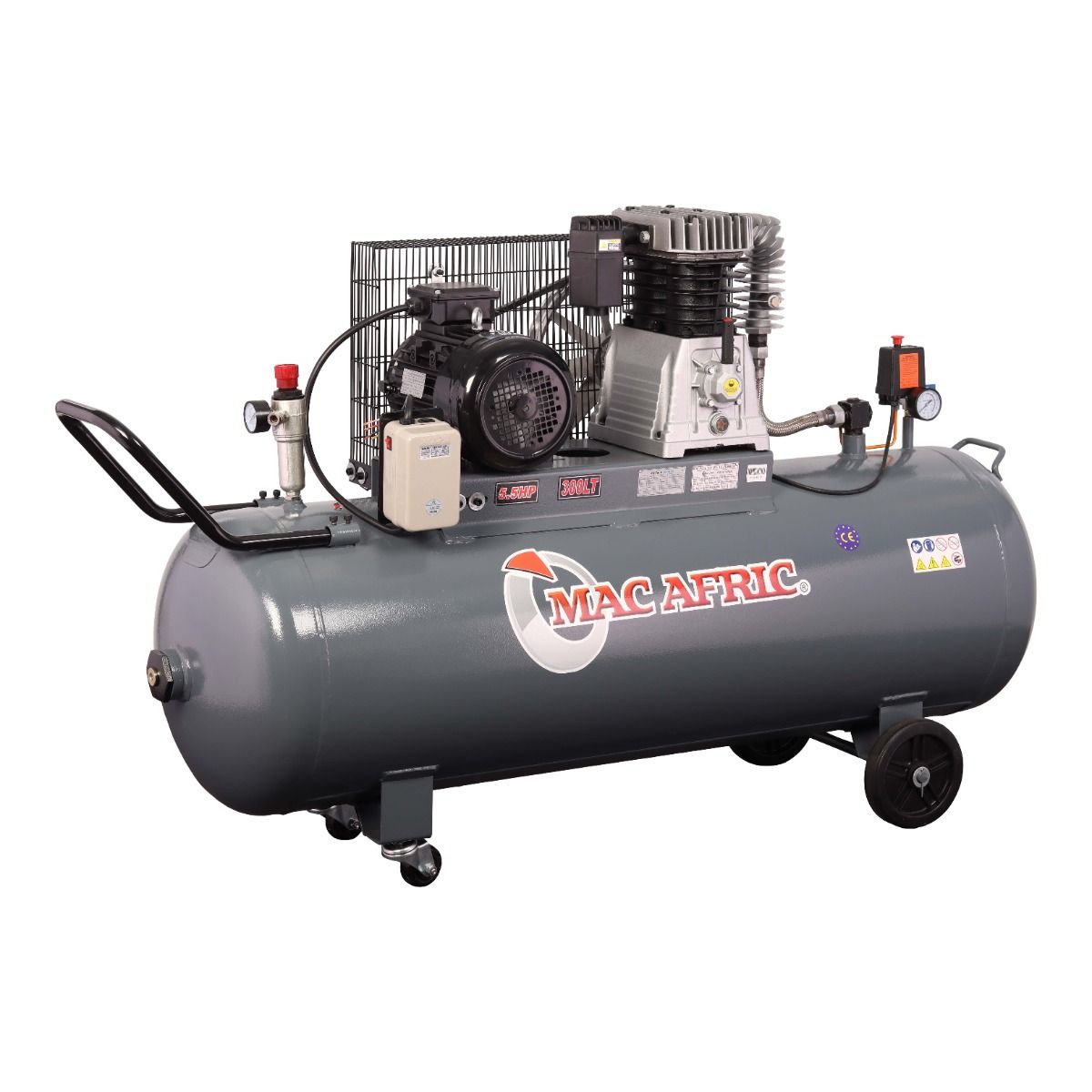

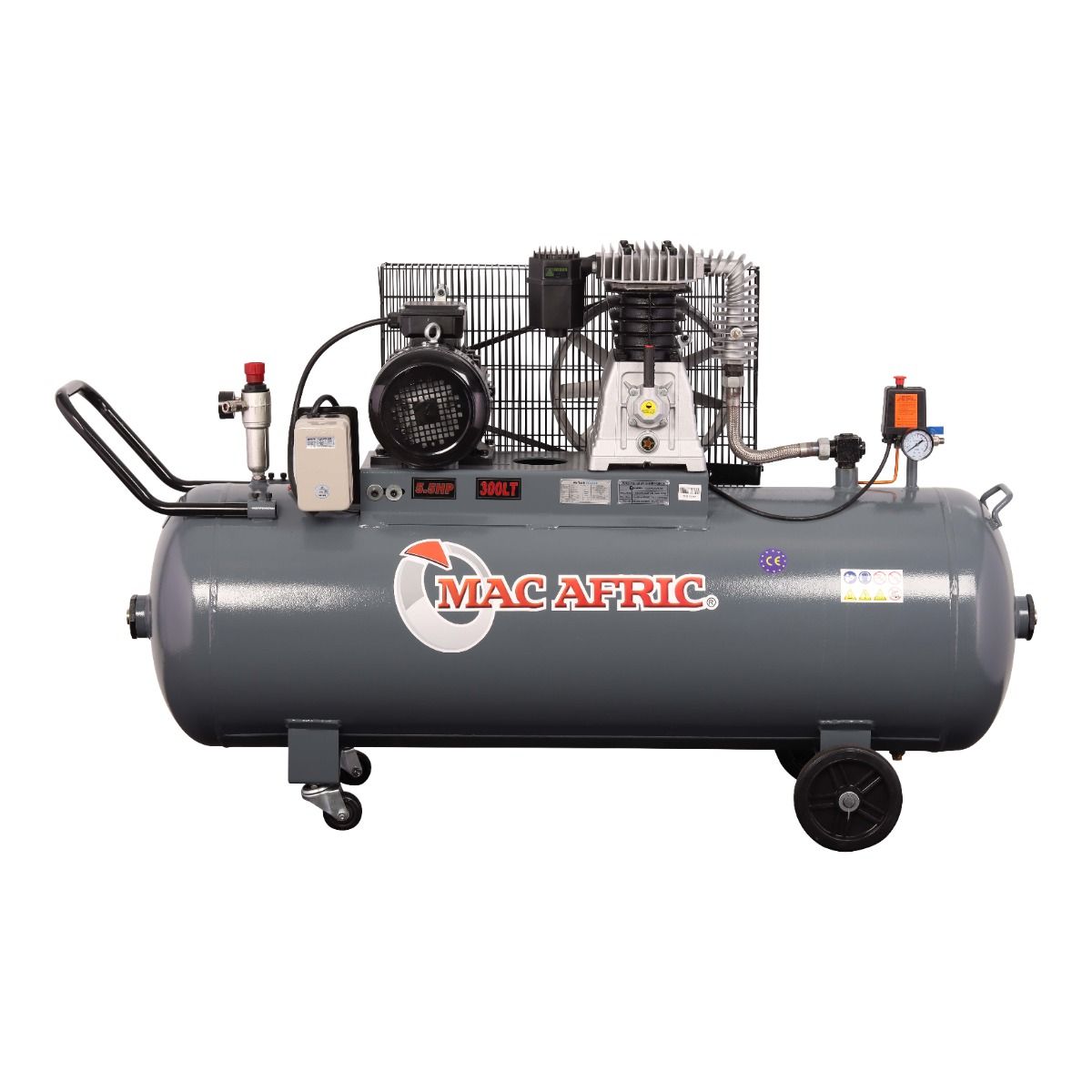

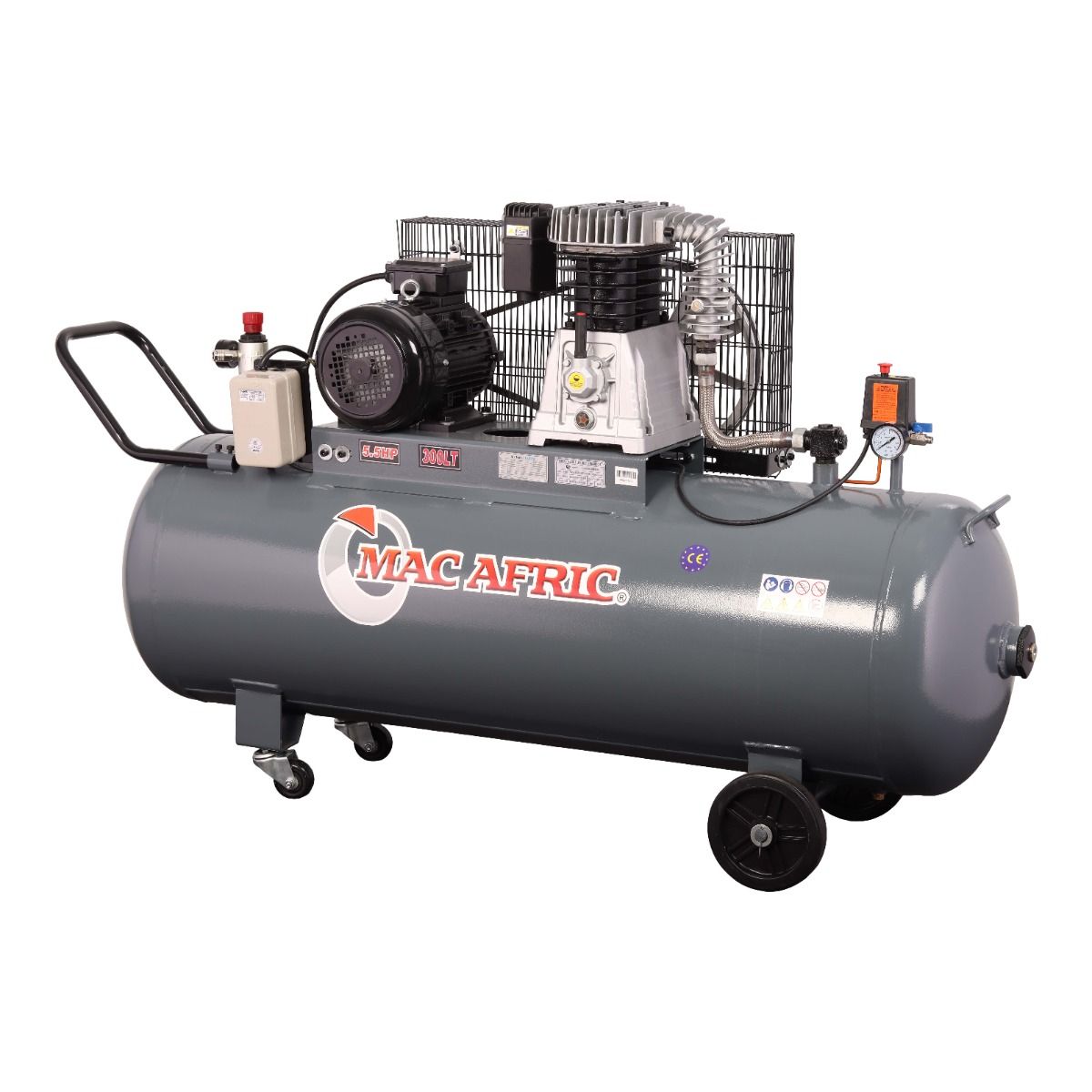

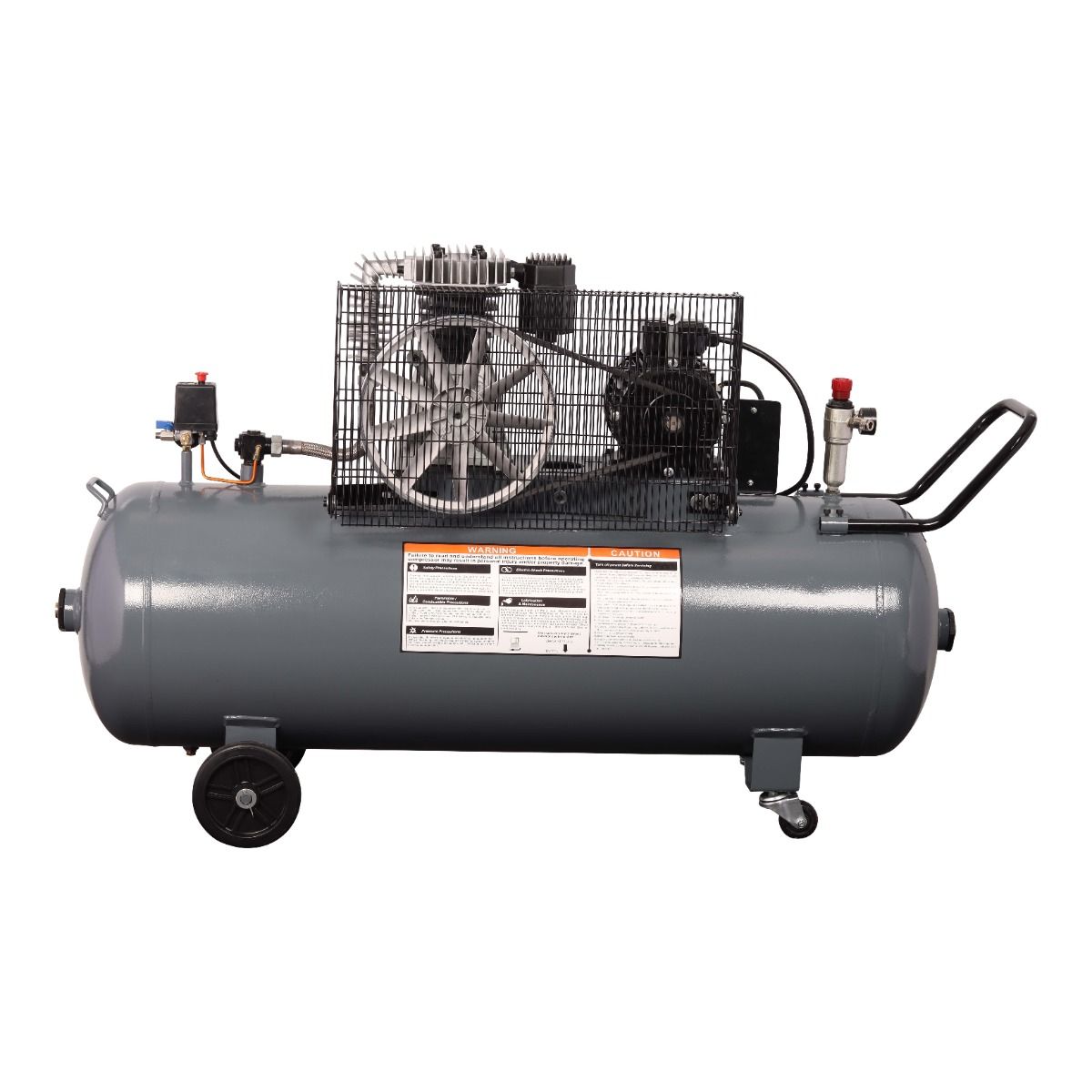

MAC AFRIC 300 Litre 4 KW (6 HP) 380 V Belt Driven Compressor
The Mac Afric 300 L three-phase compressor is the ideal entry-level model for small commercial workshops. Features an Italian-style aluminum head with cast iron cylinders, 2x 90 mm pistons and 60 mm stroke to deliver 600 l/min.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 300 L |
| Motor Output | 4 KW (5.5 HP) |
| Outlet Air Flow | 21 CFM (600 L/MIN) |
| Max Tank Pressure | 8 BAR (116 PSI) |
| Amperage | 8 A |
| Compressor Type | Belt Driven |
| RPM | 2 850 RPM |
| Replacement Head | COMPRH014 |
| Fuel Type | NA |
| Voltage | 380 V Three Phase |
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 98.00 |
| Package Width (cm) | 160.00 |
| Package Height (cm) | 53.00 |
| Package Weight (kg) | 205.000000 |
| Compressor Type | Belt Driven |
