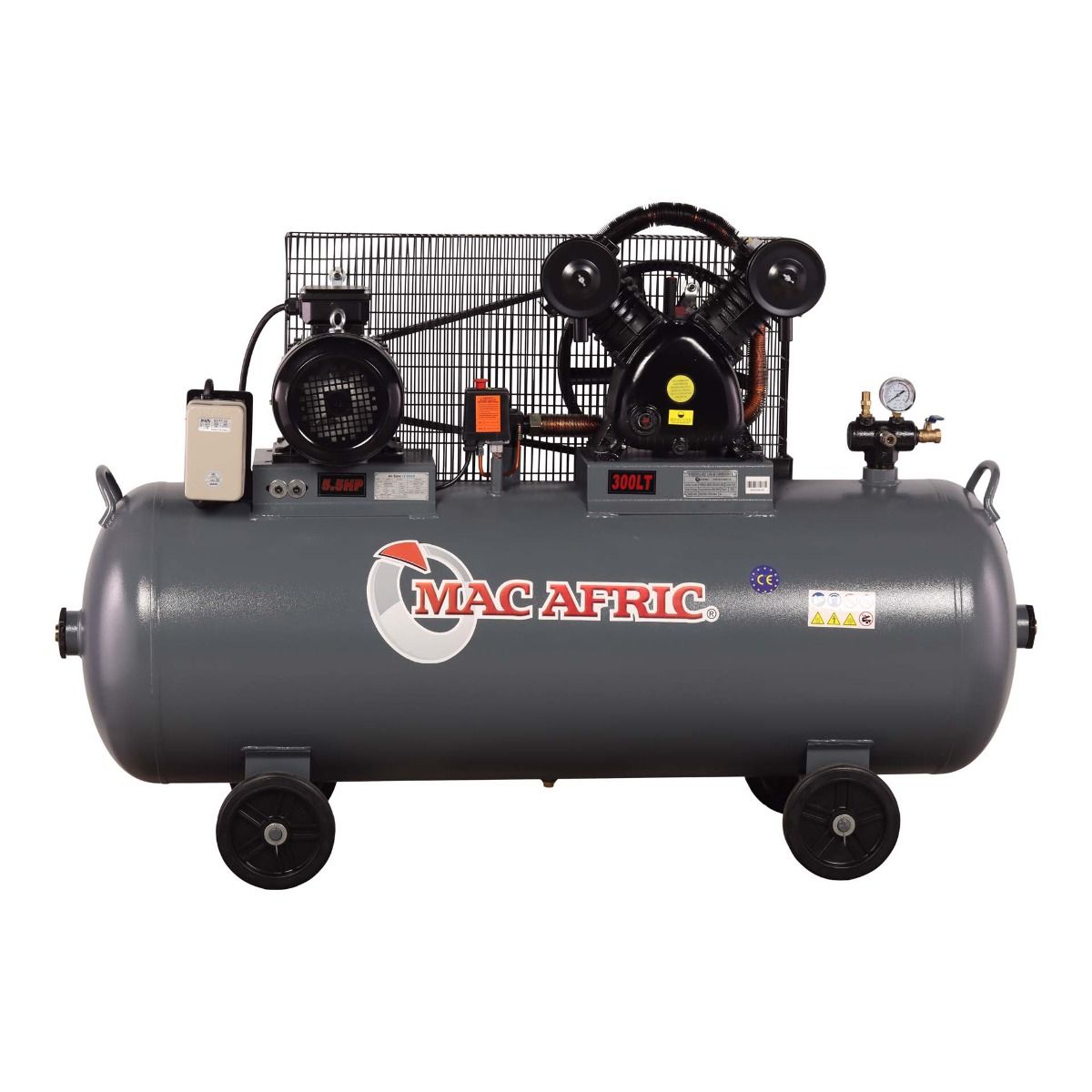

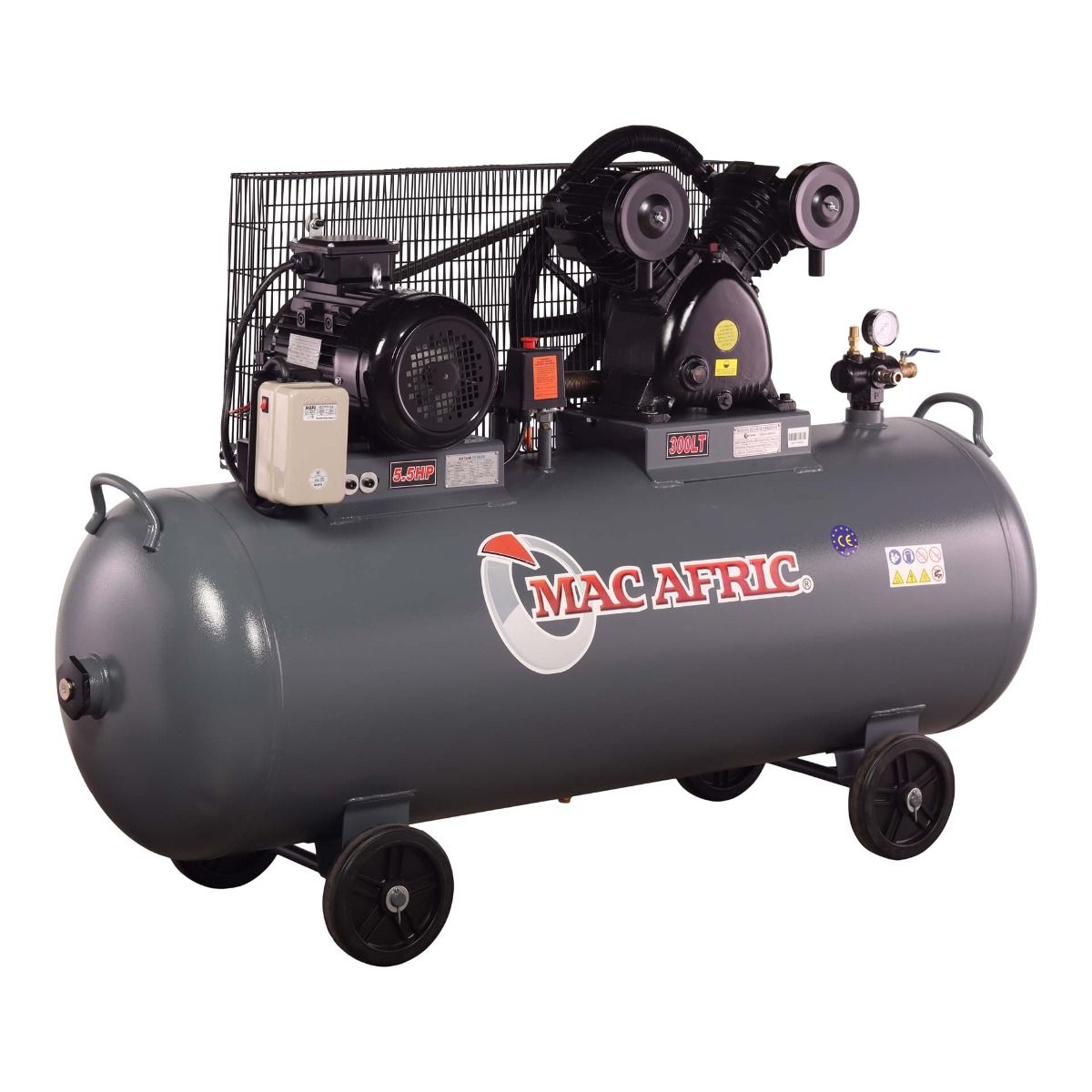

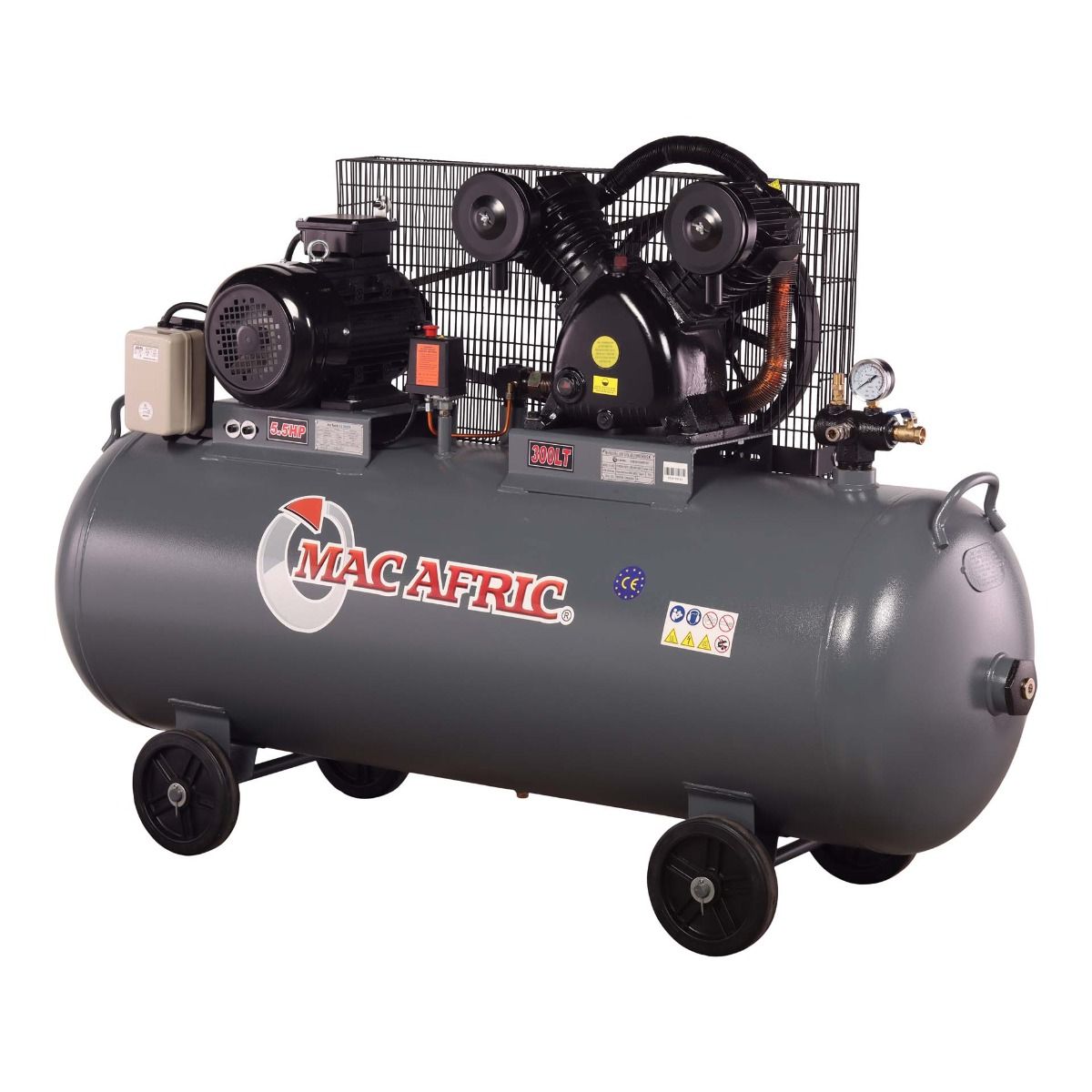

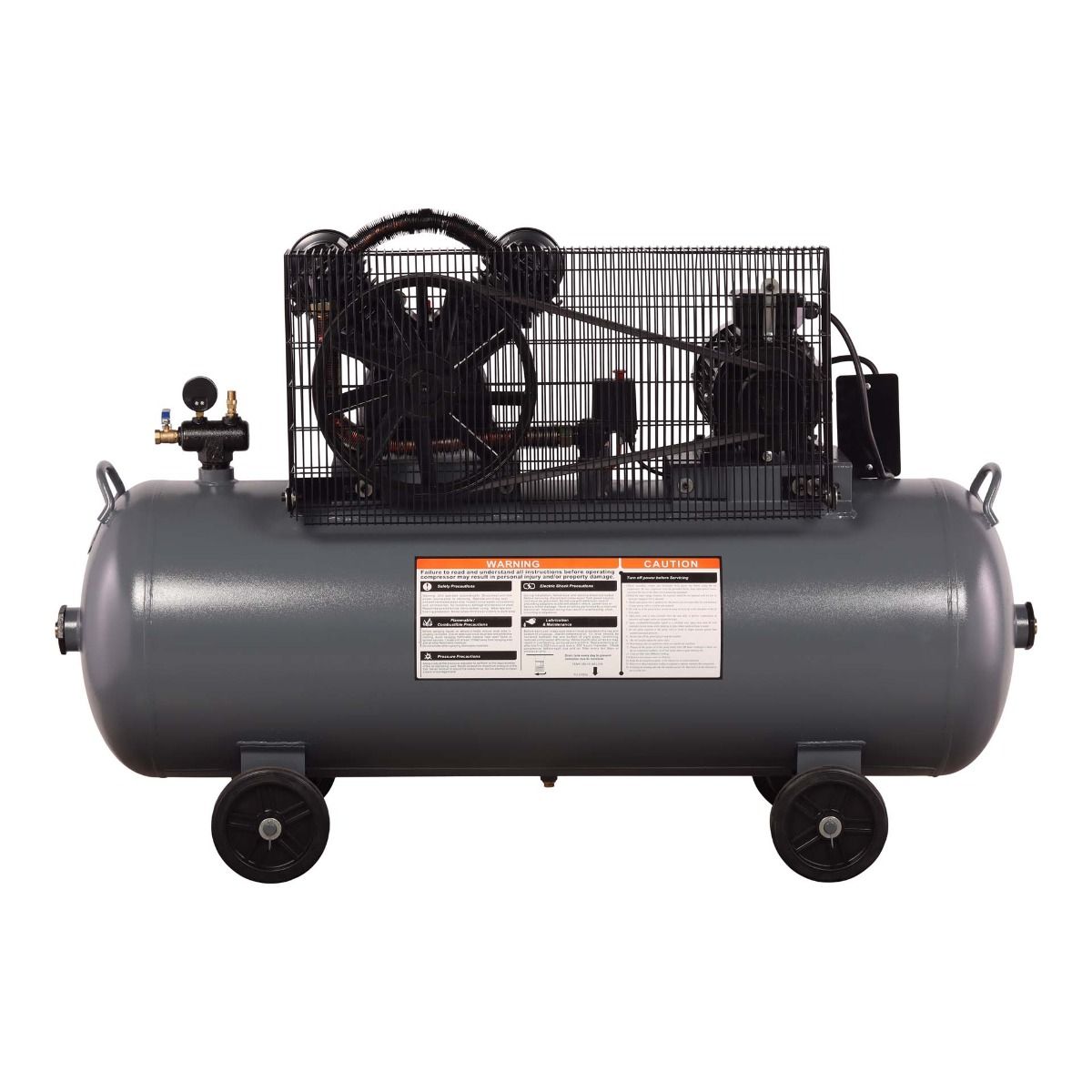

MAC AFRIC 300 Litre 4kW (5 HP) 380V Belt Driven Compressor
Features a powerful silent running copper three-phase motor. Aluminium 2-stage (v-type) air pump with cast iron cylinder sleeves. 2-Stage air pumps allow intermittent cooling in between stages as well as increased air delivery and maximum pressure. Entry level size for workshops requiring pneumatic tools.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 300 L |
| Motor Output | 3.6 KW (5 HP) |
| Outlet Air Flow | 21 CFM (594 L/MIN) |
| Max Tank Pressure | 8 BAR (115 PSI) |
| Amperage | 8 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 850 RPM |
| Fuel Type | NA |
| Voltage | 380 V @ 50 HZ |
Expert Advice
- The air delivery test is conducted at sea level (0–10 metres). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 165.00 |
| Package Width (cm) | 53.00 |
| Package Height (cm) | 103.00 |
| Package Weight (kg) | 220.000000 |
| Compressor Type | Belt Driven V-Head |
