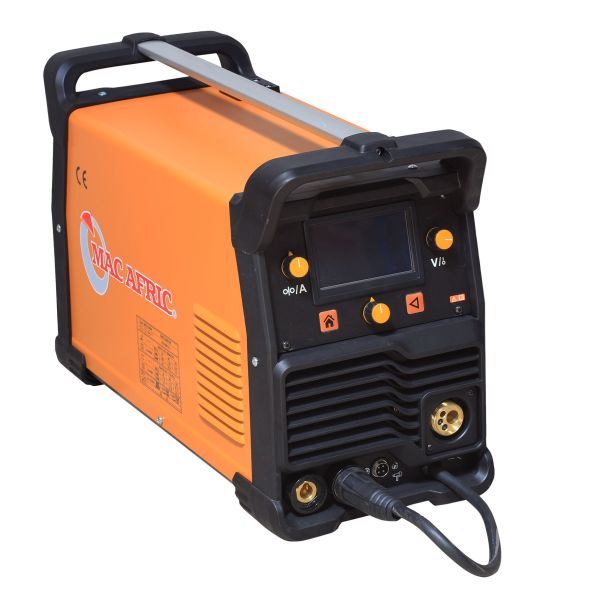

MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder With LCD Screen & PFC System

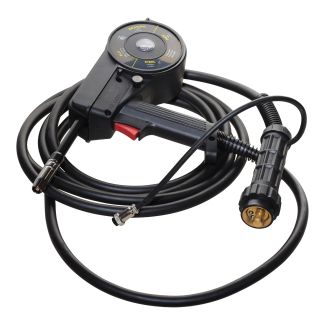

The MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder is an advanced and versatile welding solution, designed to tackle a range of welding processes with ease. Featuring an intuitive MCU controller and a TFT-LCD screen, it simplifies settings for enhanced precision. Capable of handling MIG, flux-cored arc, LIFT TIG, and MMA welding, this welder offers flexible functionality for various tasks, including optional aluminum welding with a spool gun. Equipped with PFC (Power Factor Correction), it maintains excellent performance even during voltage fluctuations.
Technical Specifications – MIG / FLUX
| Feature | Specification |
|---|---|
| Input Current | 39 A |
| Input Power | 9.0 kVA |
| No-Load Voltage | 56 V |
| Welding Current | 30 – 200 A |
| Welding Voltage | 15.5 – 24 V |
| Rated Duty Cycle | 25% |
| Efficiency | 85% |
| Power Factor | 0.7 |
Technical Specifications – MMA
| Feature | Specification |
|---|---|
| Input Current | 36 A |
| Input Power | 8.3 kVA |
| No-Load Voltage | 56 V |
| Welding Current | 20 – 175 A |
| Welding Voltage | 20.8 – 27 V |
| Rated Duty Cycle | 25% |
| Efficiency | 85% |
| Power Factor | 0.7 |
Technical Specifications – TIG (LIFT / DC)
| Feature | Specification |
|---|---|
| Input Current | 21 A |
| Input Power | 4.7 kVA |
| No-Load Voltage | 56 V |
| Welding Current | 20 – 175 A |
| Welding Voltage | 10.8 – 17 V |
| Rated Duty Cycle | 25% |
| Efficiency | 85% |
| Power Factor | 0.7 |
Write Your Own Review
| Package Weight (kg) | 26.000000 |
|---|---|
| Package Length (cm) | 69.00 |
| Package Width (cm) | 36.50 |
| Package Height (cm) | 49.00 |
