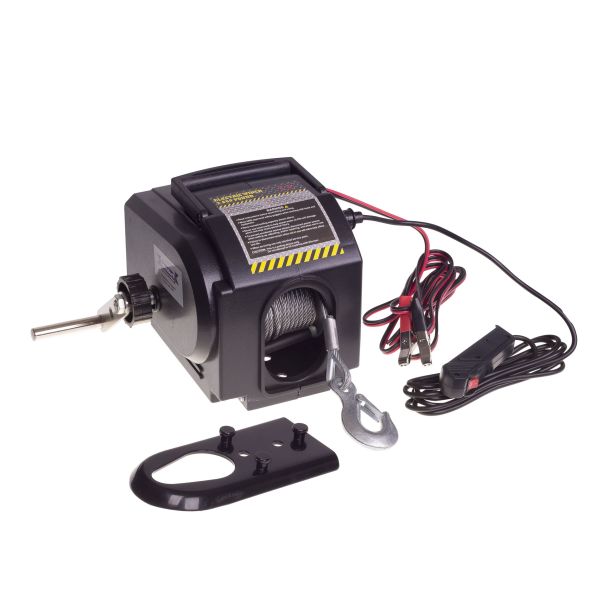

Convenient and portable, this unit is ideal for pulling boats, vehicles, ATVs and other heavy items. It features a built-in carrying handle and a quick attach mounting plate for fast, easy setup wherever needed.
| Feature | Specification |
|---|---|
| Power Supply | 12 V |
| Cable Length | 9.2 M |
| Cable Diameter | 4.8 MM |
| Line Speed | 1.68 M (5.5 FT) / MIN No-Load |
| End Hook Sizes | 1/4" IN |
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it's essential to understand how slope inclines affect the winch's effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
| Model | 0% (0°) | 5% (3°) | 10% (6°) | 20% (11°) | 30% (17°) | 50% (26°) | 70% (35°) | 100% (45°) |
|---|---|---|---|---|---|---|---|---|
| 8000 lb | 8000 / 3628 | 5336 / 2420 | 4016 / 1821 | 2720 / 1233 | 2088 / 947 | 1488 / 675 | 1224 / 555 | 1032 / 468 |
| 10000 lb | 10000 / 4536 | 6670 / 3025 | 5020 / 2277 | 3400 / 1542 | 2610 / 1184 | 1860 / 844 | 1530 / 694 | 1290 / 585 |
| 12000 lb | 12000 / 5443 | 8004 / 3630 | 6024 / 2732 | 4080 / 1850 | 3132 / 1420 | 2232 / 1012 | 1836 / 833 | 1548 / 702 |
| 15000 lb | 15000 / 6804 | 10005 / 4538 | 7530 / 3415 | 5100 / 2313 | 3915 / 1776 | 2790 / 1265 | 2295 / 1041 | 1935 / 878 |
Important Tips:
| Package Length (cm) | 39.80 |
|---|---|
| Package Width (cm) | 30.60 |
| Package Height (cm) | 28.40 |
| Package Weight (kg) | 10.080000 |
