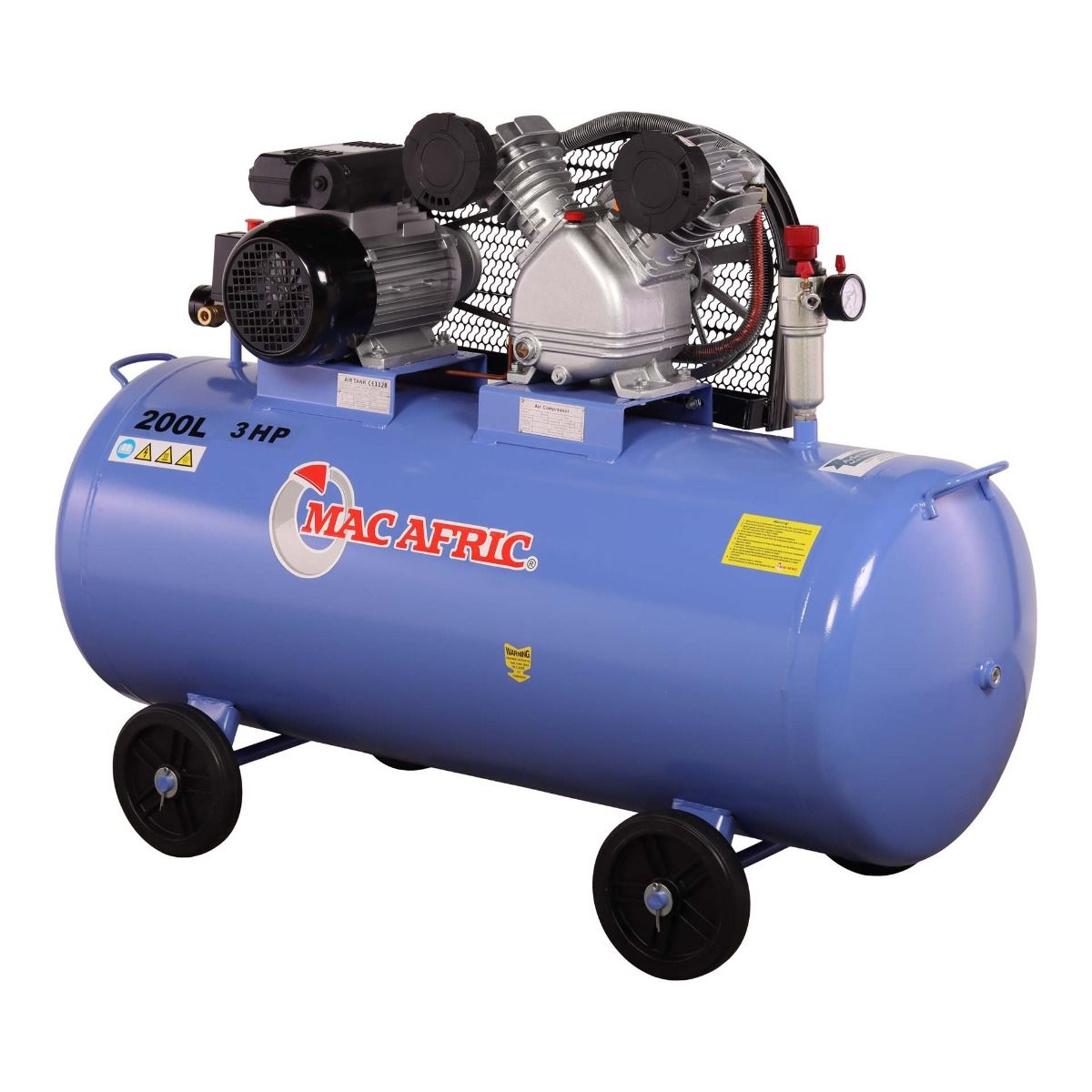

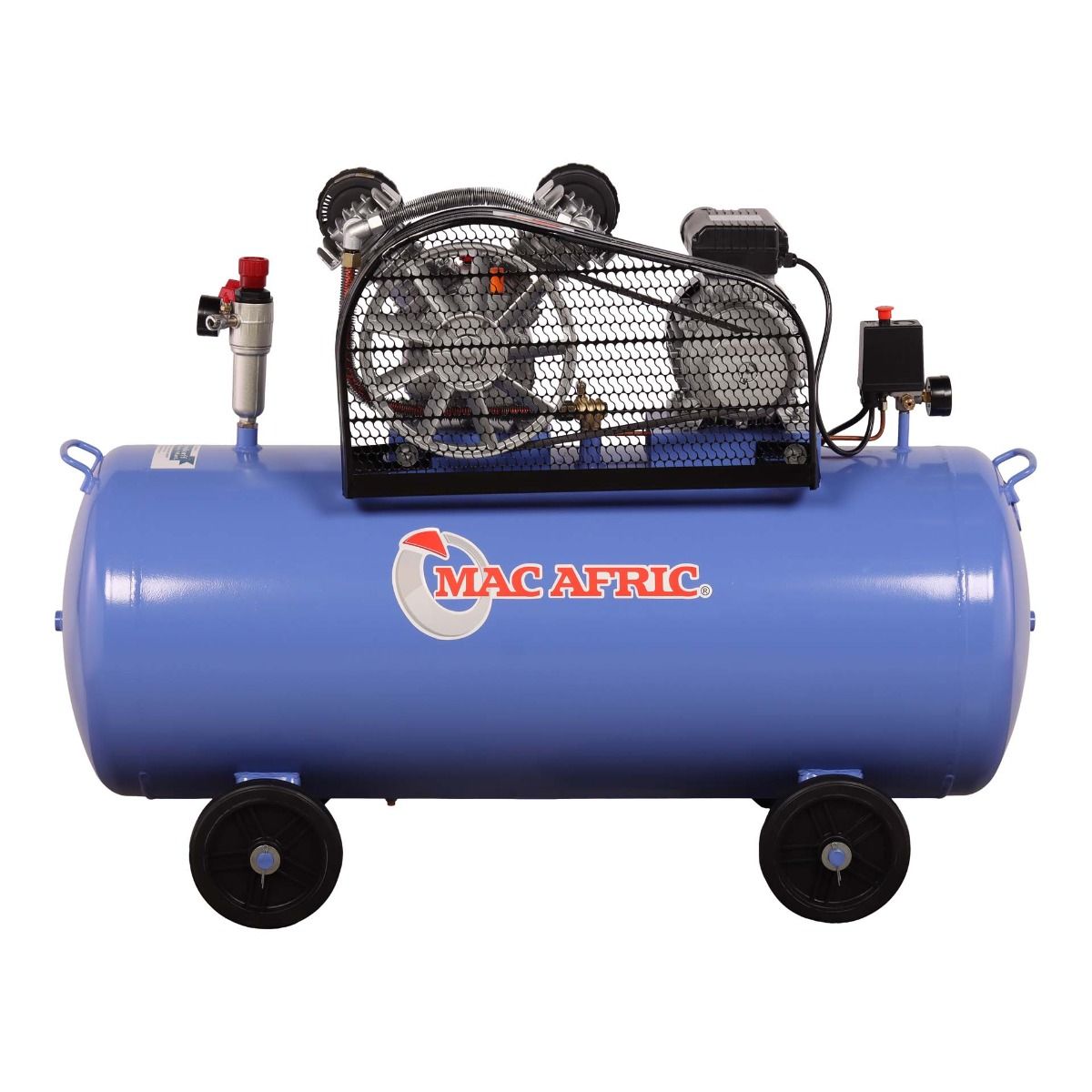

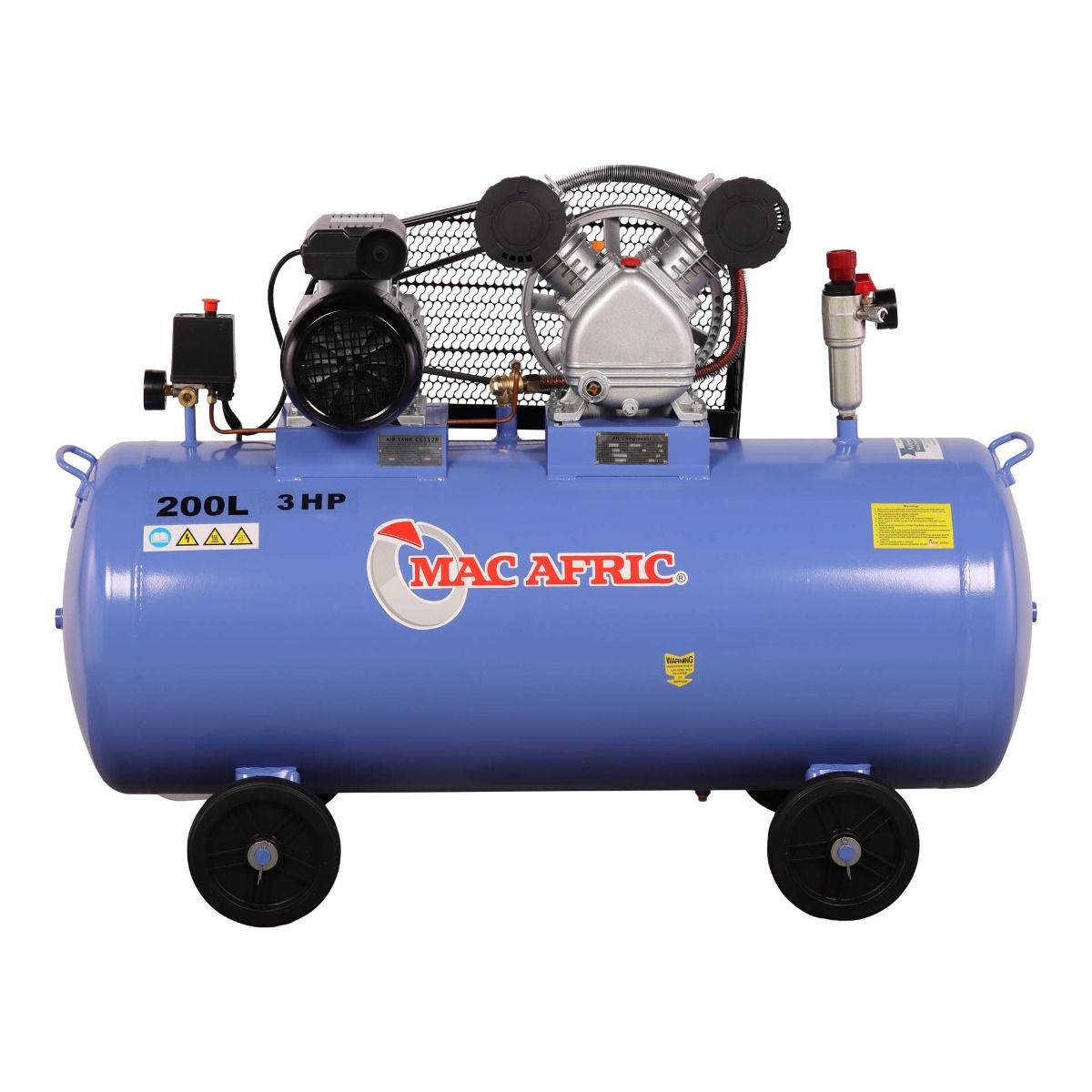

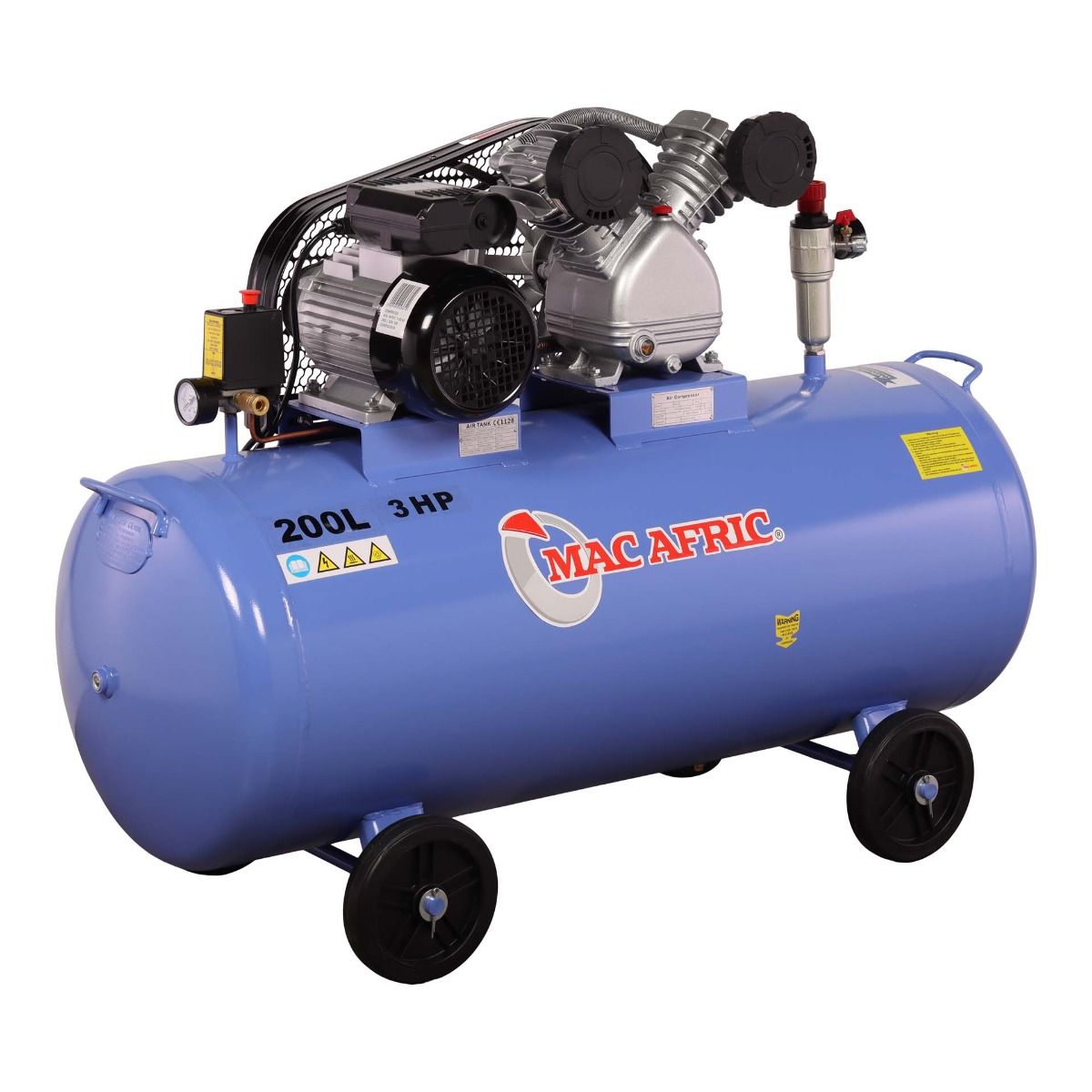

MAC AFRIC 200 Litre 2.2 KW (3 HP) 230 V Belt Driven "V-Type" Compressor
This MAC AFRIC 200L compressor is great value for the size, making it the ideal portable DIY compressor. Suitable for those DIY jobs around the house, garage and shed, such as nail and staple guns, air blowing and inflating, etc.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 200 L |
| Motor Output | 2.2 KW (3 HP) |
| Outlet Air Flow | 8.83 CFM (250 L/MIN) |
| Max Tank Pressure | 8 BAR (115 PSI) |
| Amperage | 9.4 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 800 RPM |
| Replacement Head | COMPRH003 |
| Fuel Type | NA |
| Voltage | 230 V @ 50 HZ |
Expert Advice
Drain your compressor tank daily after use to avoid build-up and contamination. Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 133.00 |
| Package Width (cm) | 52.50 |
| Package Height (cm) | 87.50 |
| Package Weight (kg) | 120.000000 |
| Compressor Type | Belt Driven V-Head |
| Specifications Description | Tank Capacity: 200 L Motor Output: 2.2 KW (3 HP) Outlet Air Flow: 8.83 CFM (250 L/MIN) Max Tank Pressure: 8 Bar (117 PSI) Amperage: 12.5 A Compressor Type: Belt Driven V-Head RPM: 2 800 RPM Voltage: 230 V @ 50 HZ Phase: Single Phase |
