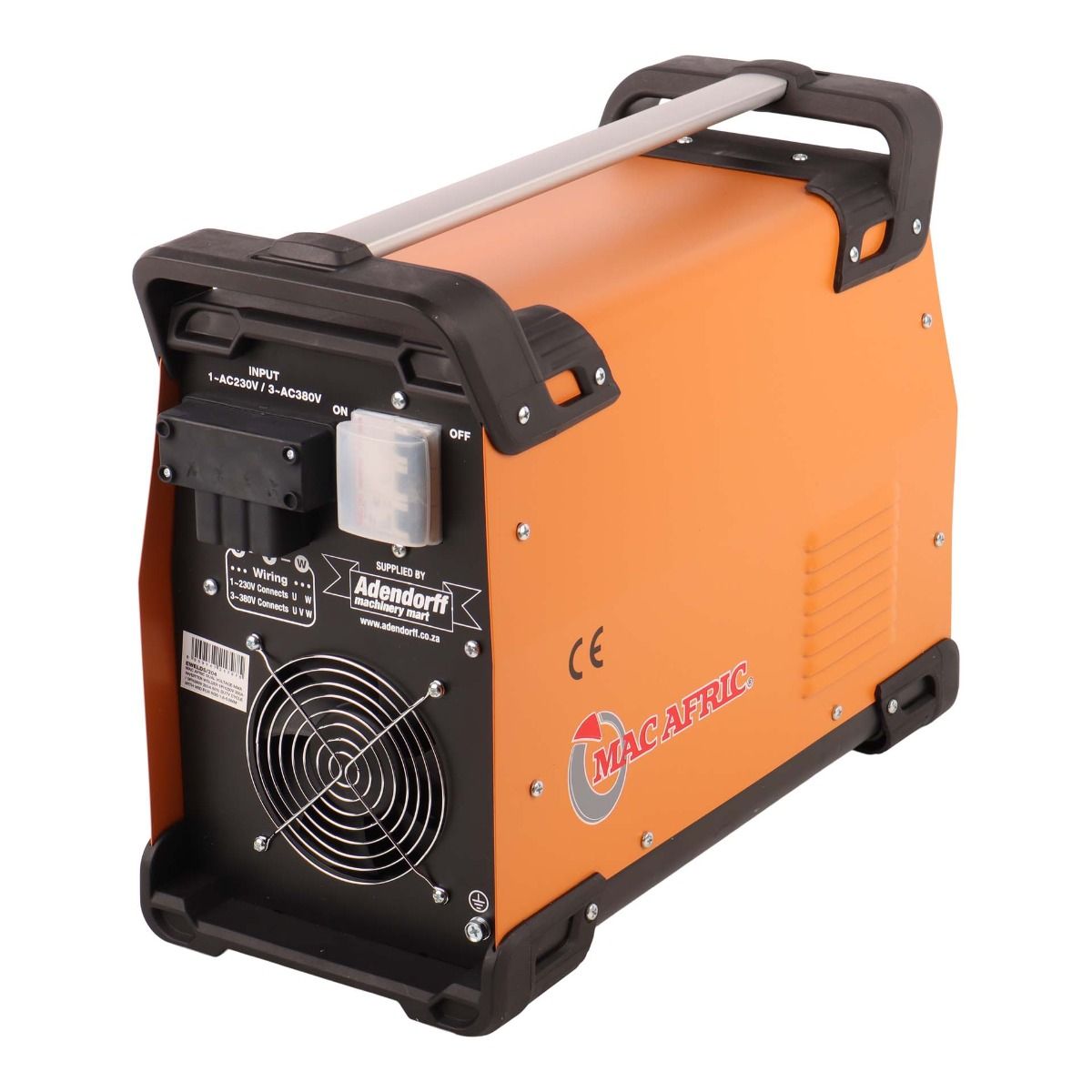

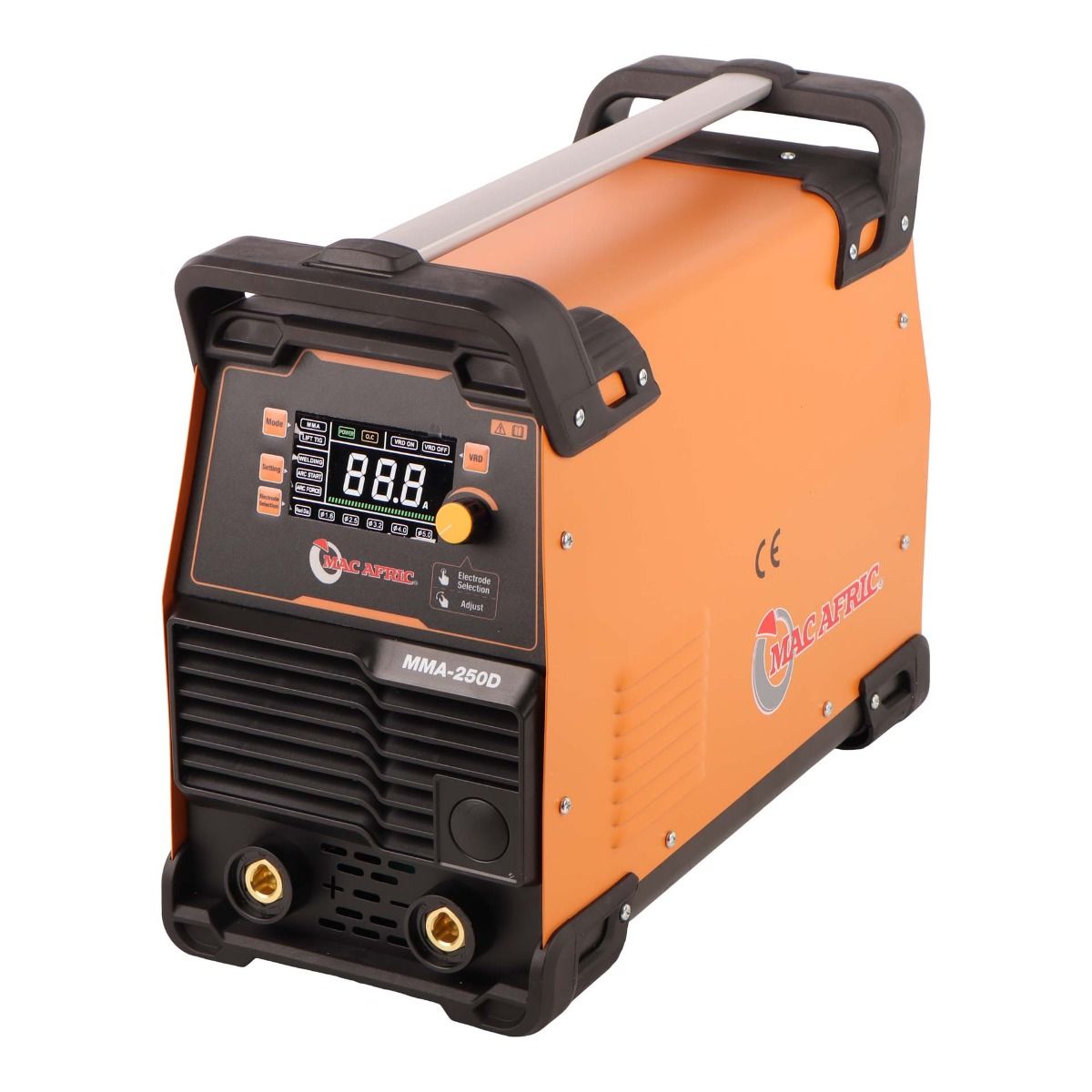

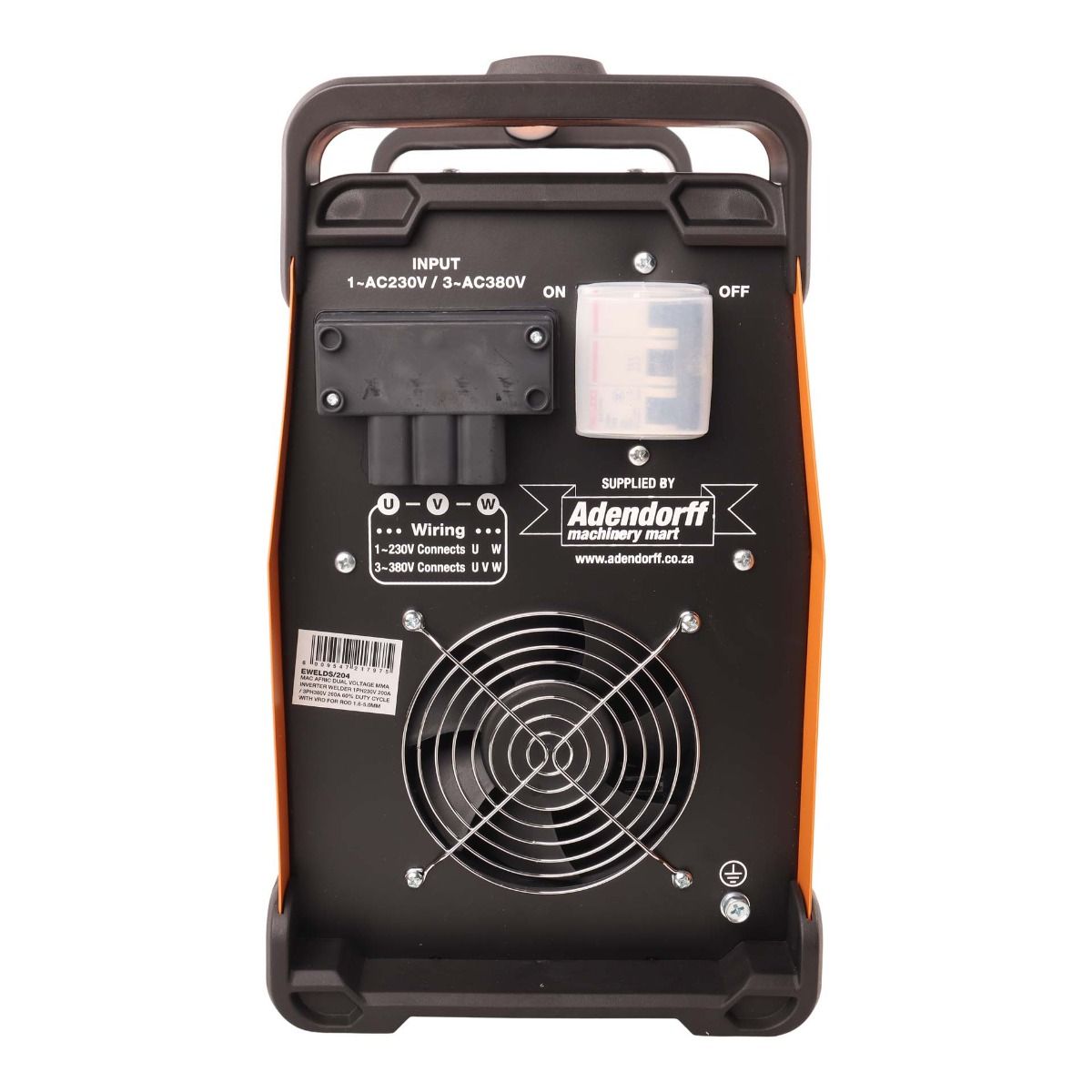

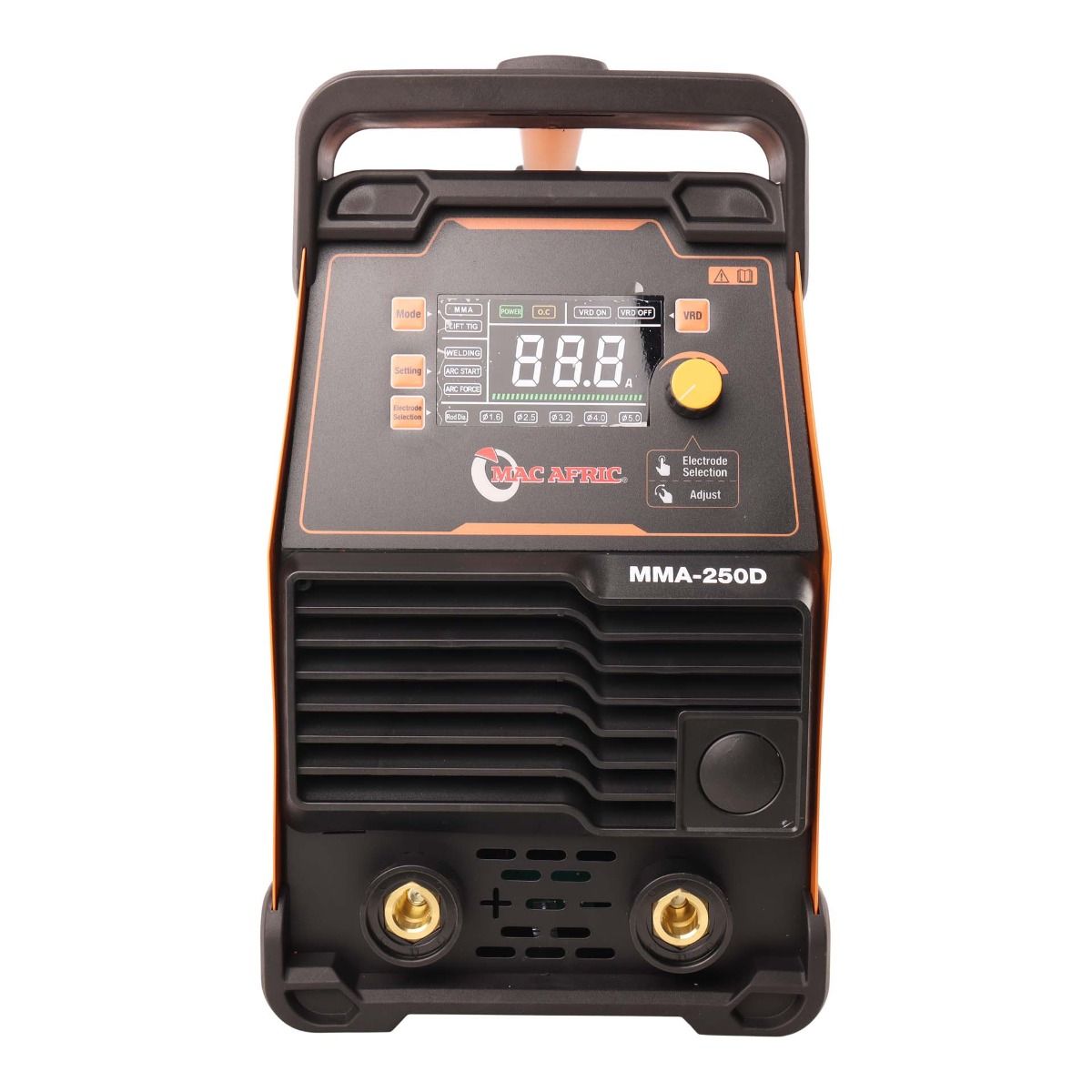

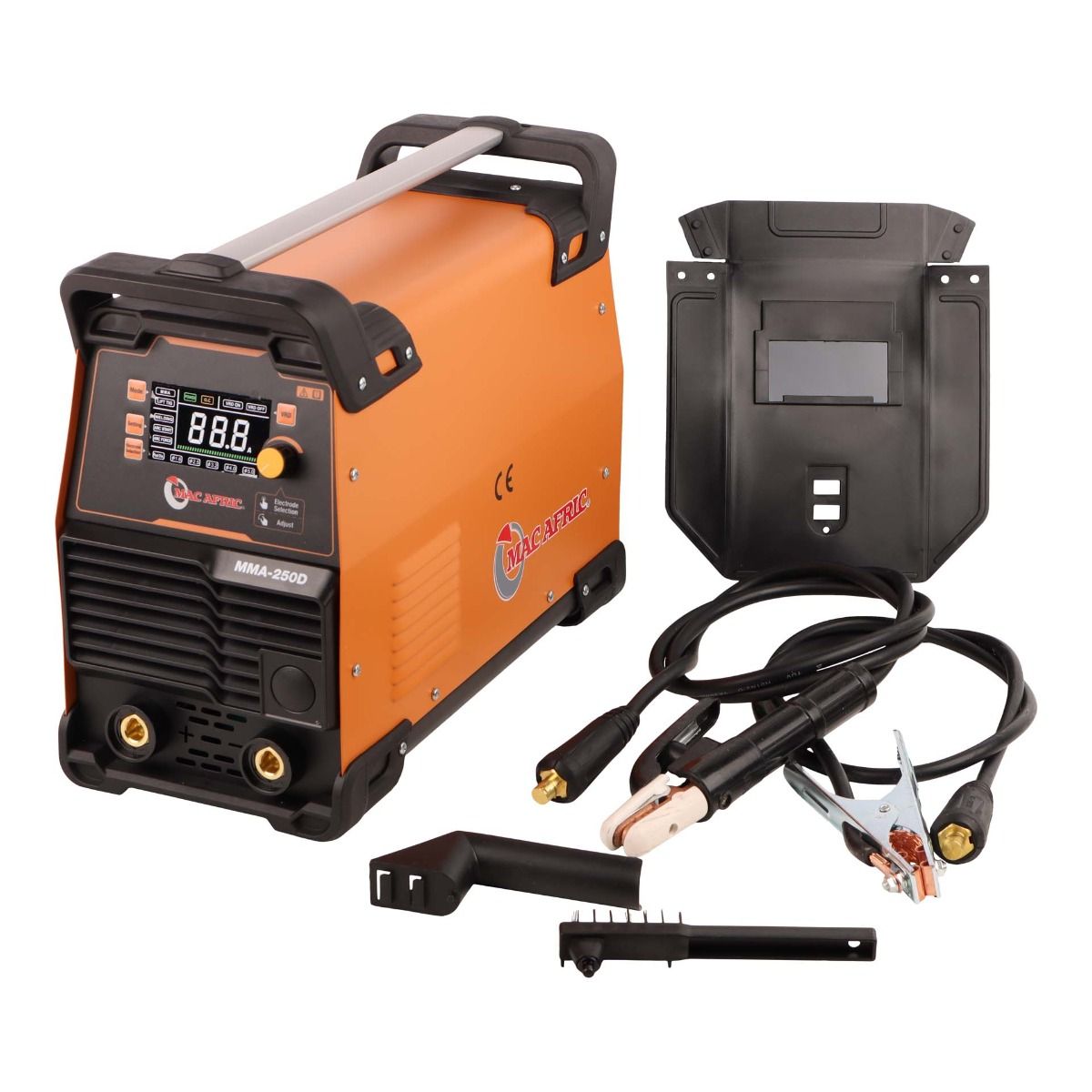

MAC AFRIC Dual Voltage MMA Inverter Welder
Introducing the MAC AFRIC 250 Amp Dual Voltage Welder: switch seamlessly between power inputs, enjoy precise control with advanced features, and tackle any welding task effortlessly. Compact, lightweight, and reliable - it's the ultimate choice for professionals.
Technical Specifications – Single Phase (1PH 230 V)
| Feature | Specification |
|---|---|
| Frequency | 50 Hz |
| Input Current | 39.3 A |
| Input Power | 9 kVA |
| No-Load Voltage | 85 V |
| Welding Current | 20 – 200 A |
| Welding Voltage | 20.8 – 28 V |
| Rated Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.7 |
Technical Specifications – Three Phase (3PH 380 V)
| Feature | Specification |
|---|---|
| Frequency | 50 Hz |
| Input Current | 19.2 A |
| Input Power | 12.5 kVA |
| No-Load Voltage | 75 V |
| Welding Current | 20 – 260 A |
| Welding Voltage | 20.8 – 30.4 V |
| Rated Duty Cycle | 60% |
| Efficiency | 85% |
| Power Factor | 0.9 |
Write Your Own Review
| Package Weight (kg) | 13.540000 |
|---|---|
| Package Length (cm) | 51.80 |
| Package Width (cm) | 31.20 |
| Package Height (cm) | 41.00 |
