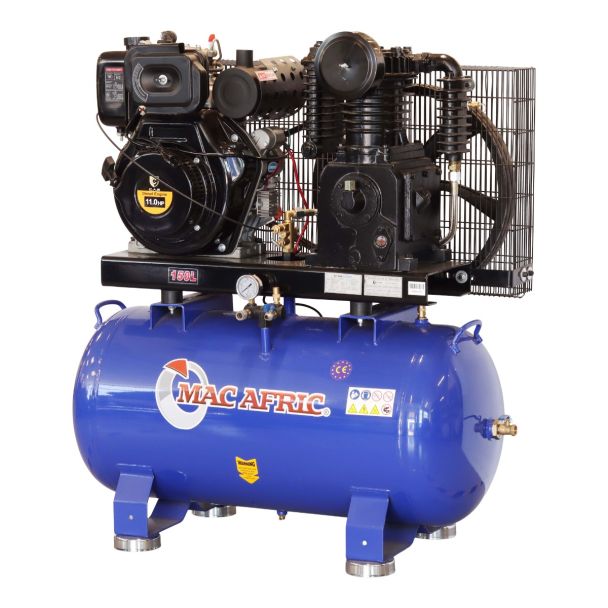

MAC AFRIC 150L Diesel Compressor
The MAC AFRIC 150L Diesel Compressor is a rugged, industrial-grade air compressor designed for heavy-duty applications. Built to deliver reliable performance, this compressor features an aerodynamically bladed flywheel for efficient cooling and positive splash-feed lubrication, ensuring smooth operation and extended life. With its powerful 11 HP diesel engine and high airflow capacity, this compressor is the ideal choice for industrial applications requiring robust and efficient air supply.
| Package Length (cm) | 118 |
|---|---|
| Package Width (cm) | 63 |
| Package Height (cm) | 125 |
| Package Weight (kg) | 245.000000 |
| Tank Capacity | 150 L |
| Motor Output | 8.2 KW (11 HP) |
| Outlet Air Flow | 30 CFM (850L/MIN) |
| Max Tank Pressure | 10 BAR (145 PSI) |
| Compressor Type | Belt Driven |
| Motor Type | Single Cylinder, 4 Stroke |
| RPM | 3 600 RPM |
| Displacement | 456cc |
Compressor Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 150 L |
| Engine Power | 11 HP (8.2 kW) 4 Stroke |
| Motor Speed | 3600 R.P.M |
| Pump Speed | 850 R.P.M |
| Cylinder Bore | 55 MM + 105 MM |
| Piston Stroke | 89 MM |
| Max Air Delivery | 28.33 CFM (802 L/MIN) |
| Output Delivery @ 4 BAR | 22.77 CFM (645 L/MIN) |
| Output Delivery @ 6 BAR | 21.68 CFM (614 L/MIN) |
| Output Delivery @ 8 BAR | 20.02 CFM (567 L/MIN) |
| Max Tank Pressure | 10 BAR (145 PSI) |
| Petrol Tank Capacity | 5.5 L |
Expert Advice
- The air delivery test is conducted at sea level (0–10 meters). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
