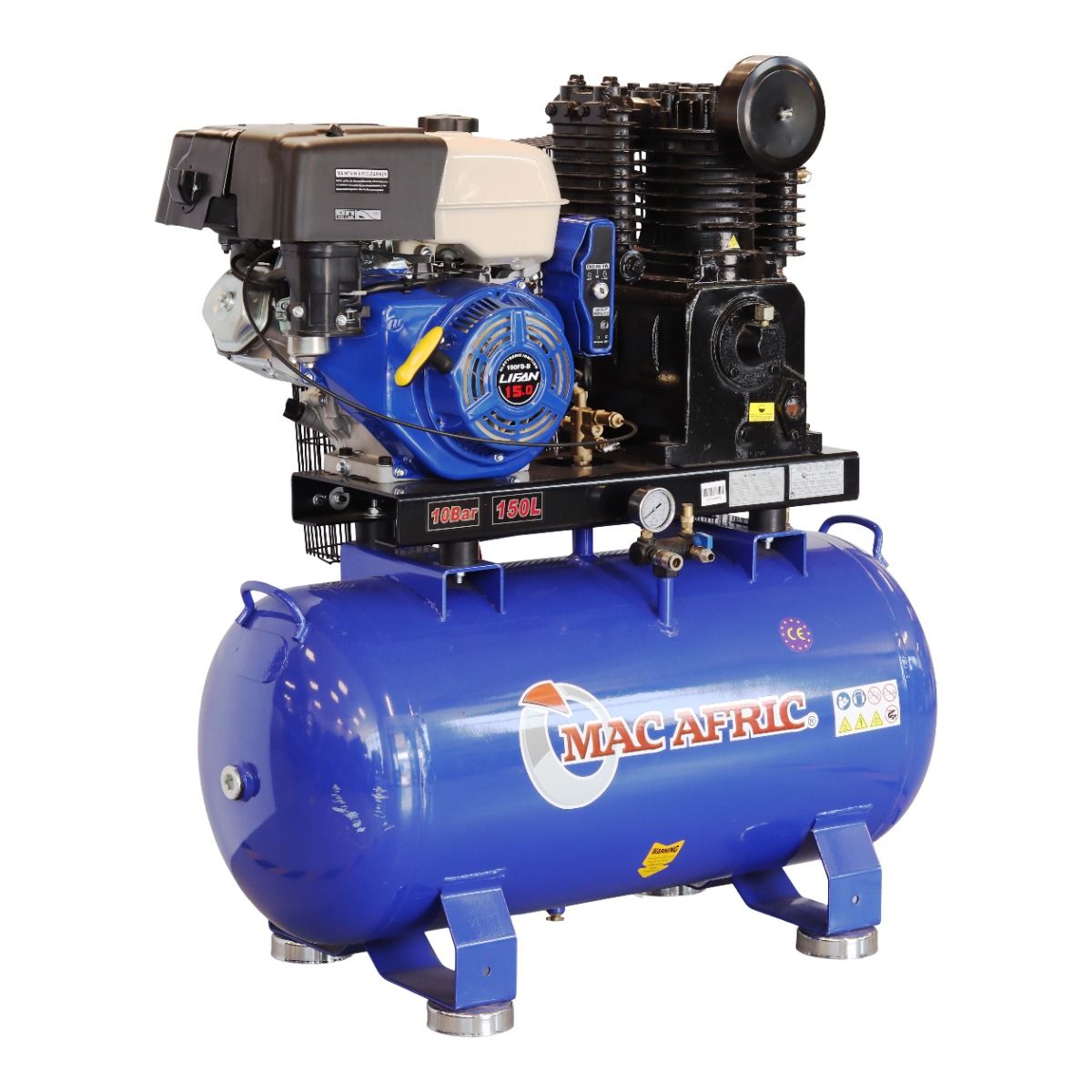

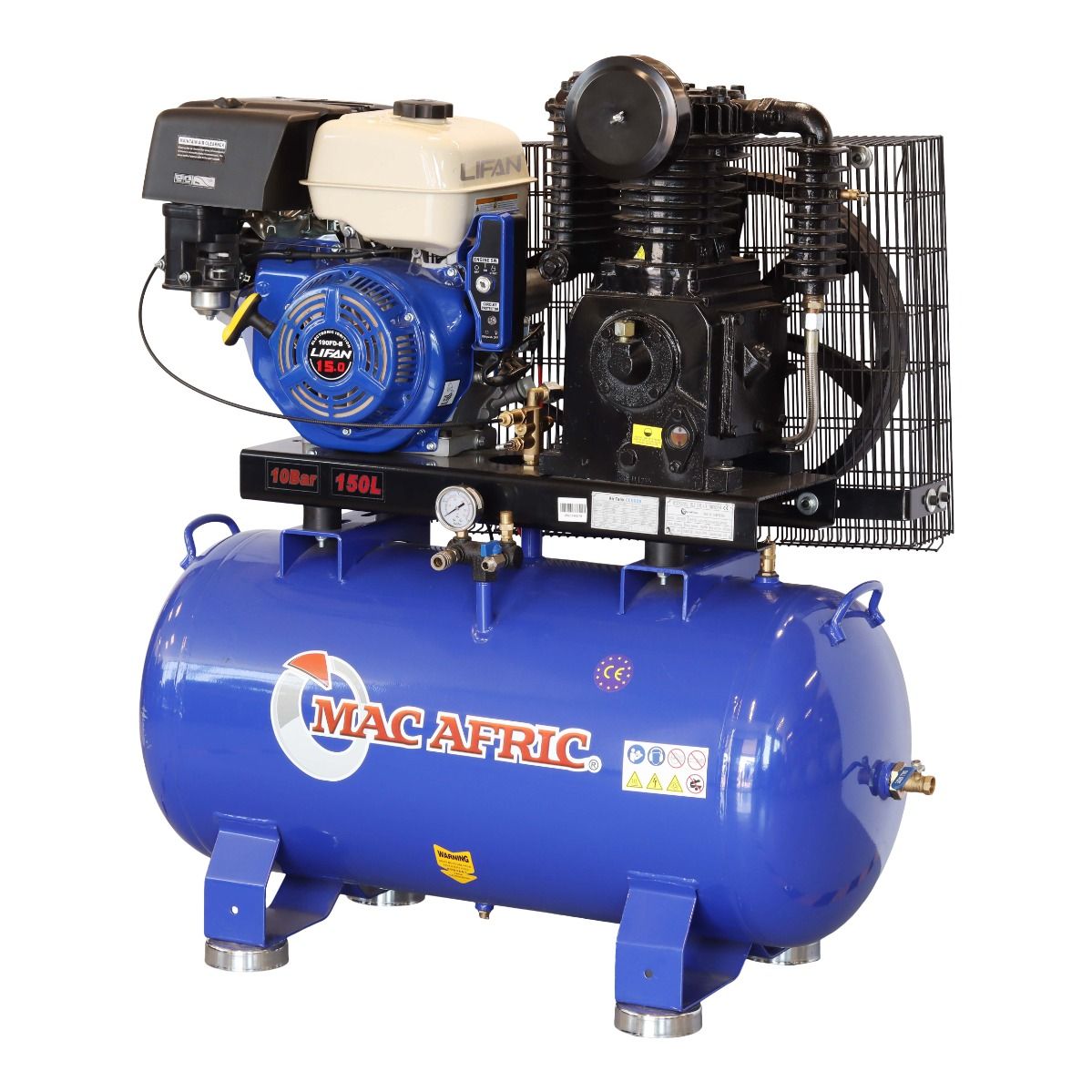

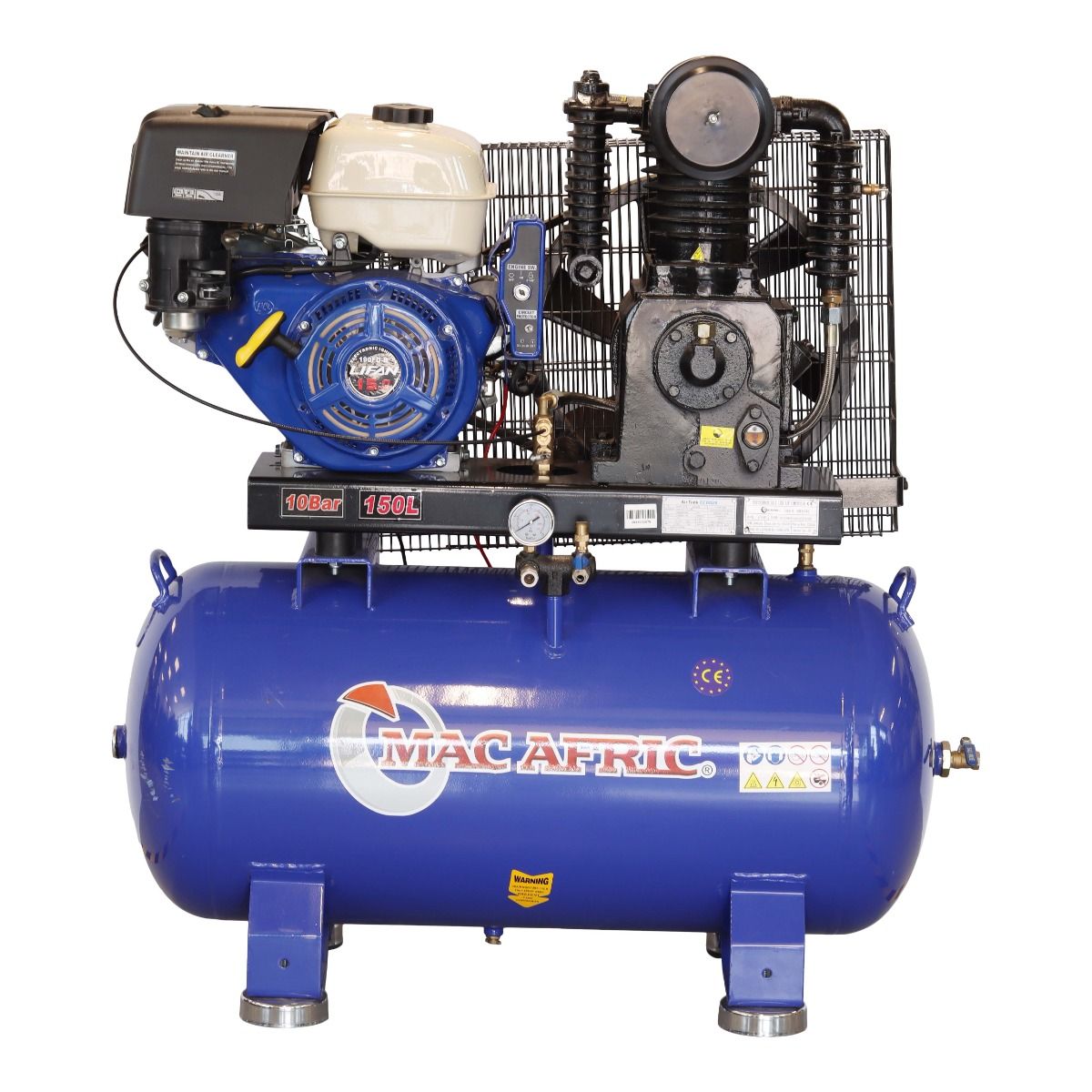

MAC AFRIC 150 Litre 10.5 KW (15 HP) Petrol Belt Driven Compressor
In a world where electricity can be a massive issue, it is always good to have a backup plan! Look no further than this fantastic MAC AFRIC 150 litre Belt-driven Petrol compressor. This 4 stroke 420cc motor can create 10.5KW of power! Creating a max air delivery rate of 555 litres per minute at 10 Bar, you won't have to worry about what tools you can use! It can power it all! If you want to pump up large tyres or use a pneumatic hammer to destroy some concrete this compressor can achieve this and more! Drill, paint, and sand - the applications are endless! The perfect compressor for your workshop!
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 150 L |
| Motor Output | 10.5 KW (14.2 HP) |
| Outlet Air Flow | 21 CFM (614 L/MIN) @ 6 BAR & 19 CFM (555 L/MIN) @ 10 BAR |
| Max Tank Pressure | 10 BAR (145 PSI) |
| Amperage | NA |
| Compressor Type | Belt Driven |
| RPM | 3 500 RPM |
| Replacement Head | COMPRH011 |
| Fuel Type | Petrol 4 Stroke |
| Voltage | 230 V @ 50 HZ |
Expert Advice
- The air delivery test is conducted at sea level (0-10 metres). As altitude increases, air delivery will decrease accordingly.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 117.00 |
| Package Width (cm) | 58.00 |
| Package Height (cm) | 110.00 |
| Package Weight (kg) | 215.000000 |
