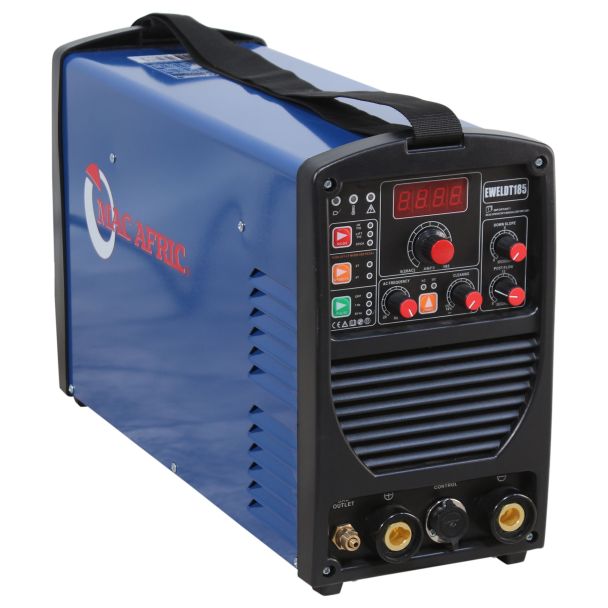

MAC AFRIC 185 A AC/DC TIG & MMA Inverter Welding Machine
The MAC AFRIC 185 A AC/DC TIG & MMA Inverter Welding Machine is a versatile and compact 2-in-1 solution for professional and DIY welding projects. This unit offers both AC and DC outputs, making it perfect for welding aluminum and other non-ferrous metals with precision. Its sturdy build and efficient design provide an excellent duty cycle, while also functioning as an MMA stick welder. For greater control, a foot pedal can be added (sold separately), making it ideal for more intricate TIG welding tasks.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | EWELDT185 |
| Input Voltage | AC220V – 240V / 50–60Hz |
| AC TIG Current Range | 20 – 185A |
| AC TIG No-Load Voltage | 80V |
| AC Balance Range | 10% – 90% |
| AC Square Wave Frequency | 20 – 250Hz |
| AC TIG Rated Duty Cycle | 35% |
| DC TIG Current Range | 5 – 185A |
| DC TIG Pulse Current Range | 5 – 185A |
| DC TIG Up-Slope Time | 0 Seconds |
| DC TIG Down-Slope Time | 0 – 10 Seconds |
| DC TIG Base Current | 5A |
| DC TIG Pulse Ratio | 0.5 |
| DC TIG Pulse Frequency | 1Hz or 50Hz |
| Post Flow Time | 0 – 25 Seconds |
| Arc Starting Mode | High Frequency or Lift Arc Start |
| MMA Welding Current Range | 5 – 150A (DC) 20 – 150A (AC) |
| MMA Rated Output Current | 150A |
| MMA Rated Duty Cycle | 35% |
| Efficiency | ≥83% |
| Protection Class | IP21S |
| Machine Weight | 25kg |
| Dimensions | 470 × 235 × 435mm |
Key Features
- AC/DC TIG and MMA welding capability for handling a wide range of fabrication, repair, and maintenance work.
- AC balance adjustment helps when welding aluminium by improving cleaning action and weld control.
- Adjustable AC frequency allows better arc focus and control on thinner materials and detailed TIG work.
- Pulse TIG functions assist with heat control, especially useful on thinner materials and precision welding jobs.
- Supports both high-frequency and lift arc starting for flexibility across different working environments.
- Compact inverter design helps with portability around workshops, garages, and onsite applications.
- IP21S protection rating suitable for indoor workshop and sheltered site use.
Why It Matters
- Suitable for aluminium, stainless steel, and mild steel welding applications when AC and DC TIG capability is required.
- The 185A output range makes it useful for light to medium fabrication, maintenance work, and general workshop welding.
- Pulse and AC frequency controls are important when cleaner weld appearance and heat management matter.
- 35% duty cycle is suitable for intermittent welding applications and general repair work rather than continuous heavy industrial production.
- Lift arc starting can be useful where reduced electronic interference is preferred.
