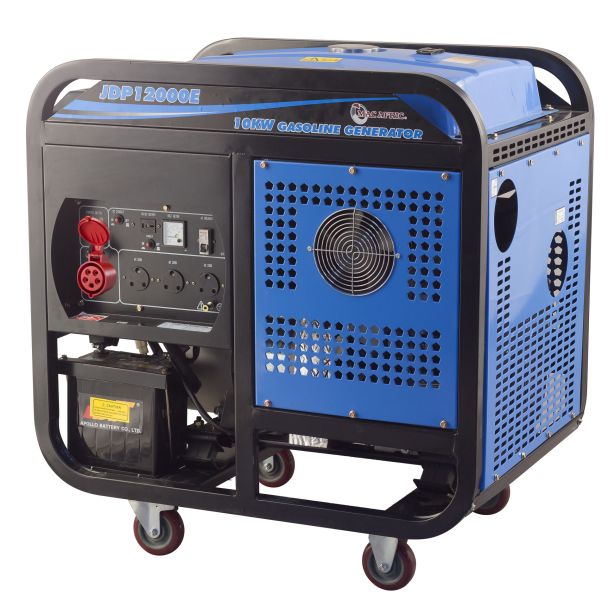

MAC AFRIC 12.5 kVA (10 KW) Standby Petrol Generator (380V)
This Three-phase generator is more than enough, it boasts a sturdy movable frame that is fan-cooled and fitted with an electric start. Suitable for small three-phase workshops or small businesses.
Technical Specifications
| Feature | Specification |
|---|---|
| Generator Type | Open Frame |
| Power Output | 10 kW (12.5 kVA) |
| Output Voltage | 380 V (Three‑Phase) @ 50 Hz |
| Amperage | 18 A Per Phase |
| Decibel Rating | 75 dB(A) |
| Fuel Consumption | 4.06 L/PH @ Full Load |
| Type | Petrol Powered |
| Tank Capacity | 46 L |
| Start Type | Electric Start |
| Voltage Regulator | Yes (AVR) |
| Oil Capacity | 2 L |
| Engine Displacement | 678 cc |
| Engine Model | JDP1200E |
| Total Running Time | 4–6 Hours |
Specifications Notification
Generators are rated to run at 80% of their maximum output at sea level in a neutral climate. Altitude and temperature can reduce engine efficiency and power output.
Expert Advice
Select a generator with at least 20% more capacity than your estimated need to avoid overloading and extend its lifespan.
Specifications Description
An electrician should conduct a load test to confirm compatibility for the required 18 A per phase.
Limitations of Use:
- Do not exceed 50% of the generator’s rated load for the first-step load.
- Do not exceed 75% of the generator’s rated load for the running load.
These guidelines account for natural current spikes or drops during petrol combustion.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 94.50 |
| Package Width (cm) | 70.50 |
| Package Height (cm) | 86.00 |
| Package Weight (kg) | 215.000000 |
| Generator Type | Open Frame |
| Power Output | 10 KW (12.5 KVA) |
| Output Voltage | 380 V (Three Phase) @ 50 HZ |
| Amperage | 18 A Per Phase |
| Decibel Rating | 75 DB(A) |
| Fuel Consumption | 4.06 L/PH @ Full Load |
| Type | Petrol Powered |
| Tank Capacity | 46 L |
| Start Type | Electric Start |
| Voltage Regulator | Yes (AVR) |
| Oil Capacity | 2 L |
| Engine Displacement | 678 CC |
| Engine Model | JDP1200E |
| Total Running Time | 4-6 Hours |
