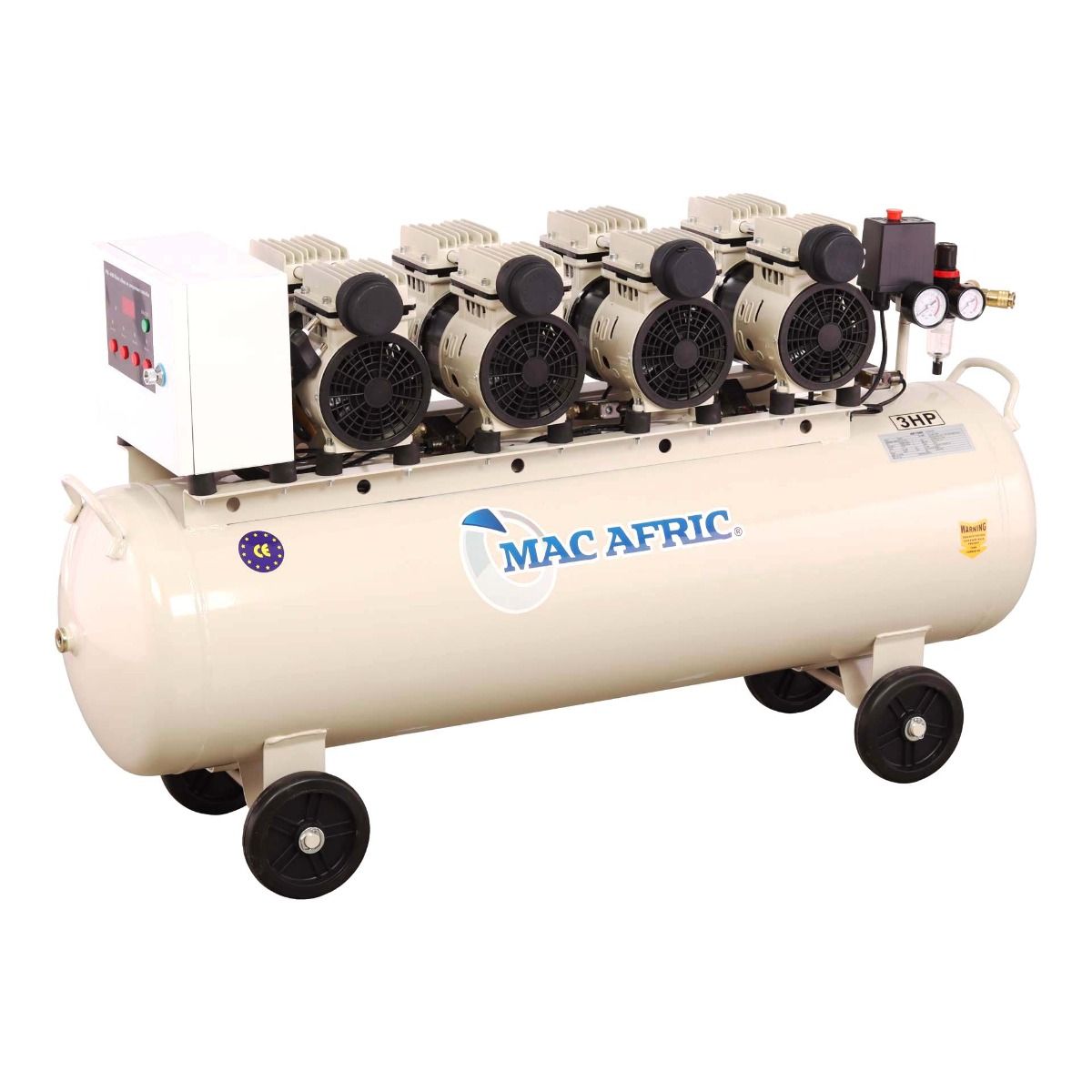

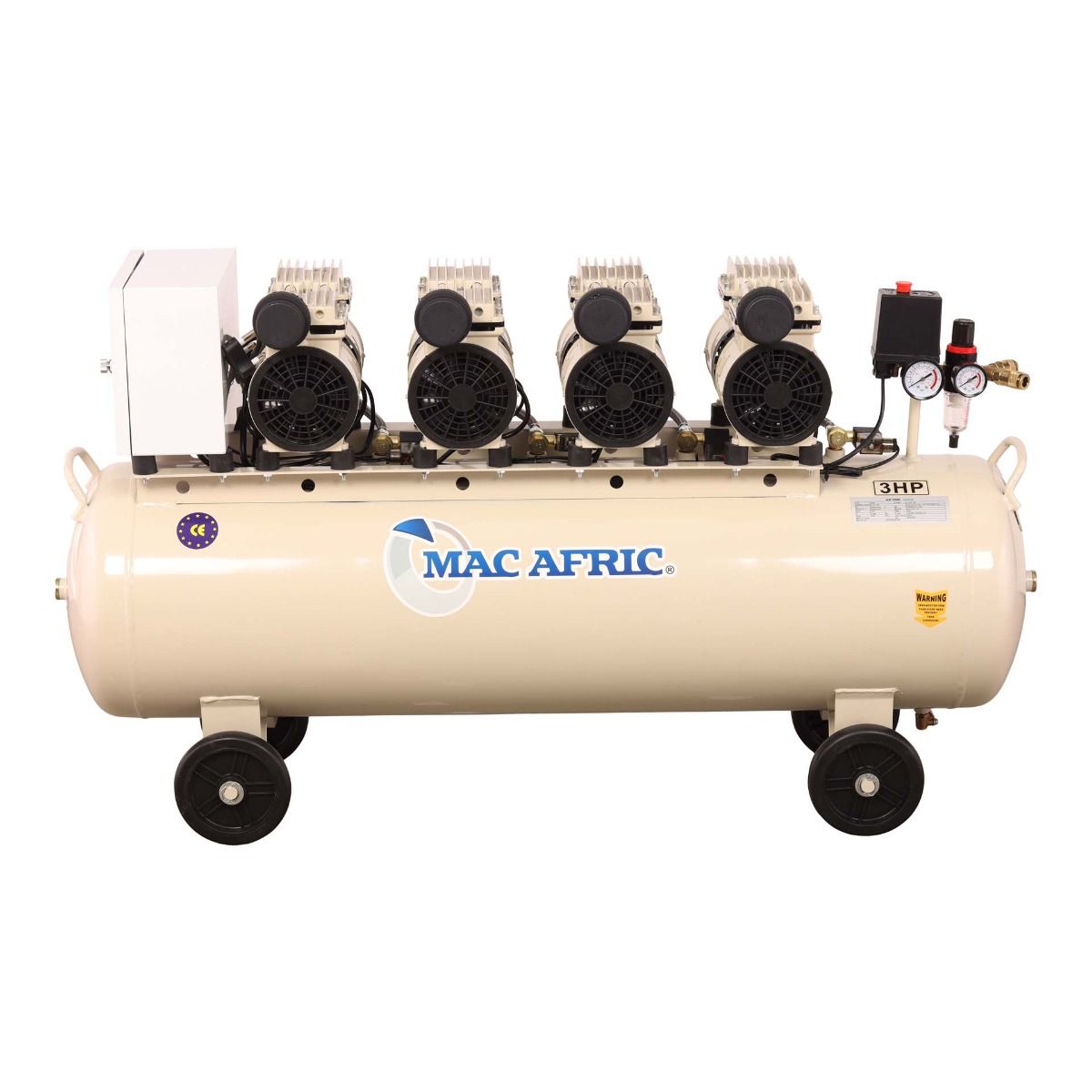

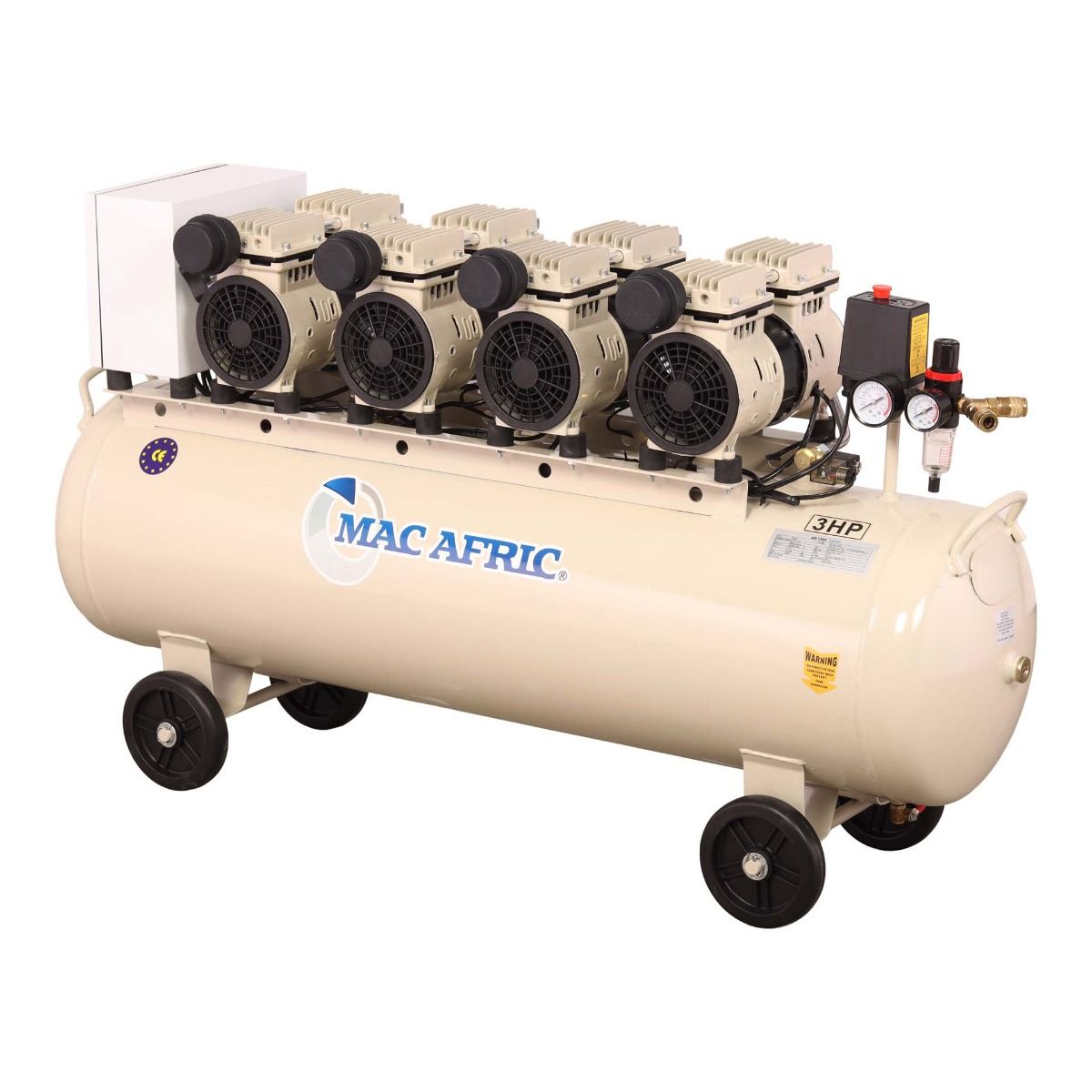

MAC AFRIC 100L Silent Oil Free Compressor 2.2 KW (3 HP) 230 V
Lightweight Oil-free air compressors specifically developed for your applications where air quality is essential for your end-product, ideal for uses such as dentistry, laboratories and so much more.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 100 L |
| Motor Output | 2.2 KW (3 HP) (x4 0.55 KW Motors) |
| Outlet Air Flow | 5.7 CFM (162 L/MIN) |
| Max Tank Pressure | 8 BAR (116 PSI) |
| Amperage | 11 A |
| Compressor Type | Silent Oil Free |
| RPM | 1 850 RPM |
| Replacement Head | NA |
| Fuel Type | NA |
| Voltage | 230 V @ 50 HZ |
Expert Advice
- Duty cycle of 40% i.e. the unit can load compressor air for 4 or fewer minutes continuously out of a 10 minute cycle.
- Drain your compressor tank daily after use to avoid build-up and contamination.
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Won’t start | Power issue / faulty switch | Check cable, socket, replace switch if faulty |
| Low pressure output | Air leaks / worn seals | Inspect and repair leaks, replace seals |
| Overheating | Continuous use beyond rating | Allow cooling breaks |
| Loud noise | Loose components / damaged motor | Tighten bolts, service motor |
| Moisture in air | Tank not drained regularly | Drain tank after every use |
FAQs
Do I need to change oil?
No, these are oil-free compressors designed for minimal maintenance.
Why is it so quiet?
It uses a special low-noise motor design and insulated components to reduce sound output.
Can it run spray guns?
Only suitable for small, low-consumption spray guns—not recommended for professional paint jobs.
How long can I run it?
Follow the duty cycle — typically 50%. For example, run for 5 minutes, then rest for 5 minutes.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 129.00 |
| Package Width (cm) | 43.00 |
| Package Height (cm) | 68.00 |
| Package Weight (kg) | 80.000000 |
| Tank Capacity | 100 L |
| Motor Output | 2.2 KW (3 HP) |
| Outlet Air Flow | 5.7 CFM (162 L/MIN) |
| Max Tank Pressure | 8 Bar (117 PSI) |
| Amperage | 11 A |
| Compressor Type | Silent Oil Free |
| RPM | 1 850 RPM |
| Voltage | 230 V @ 50 HZ |
