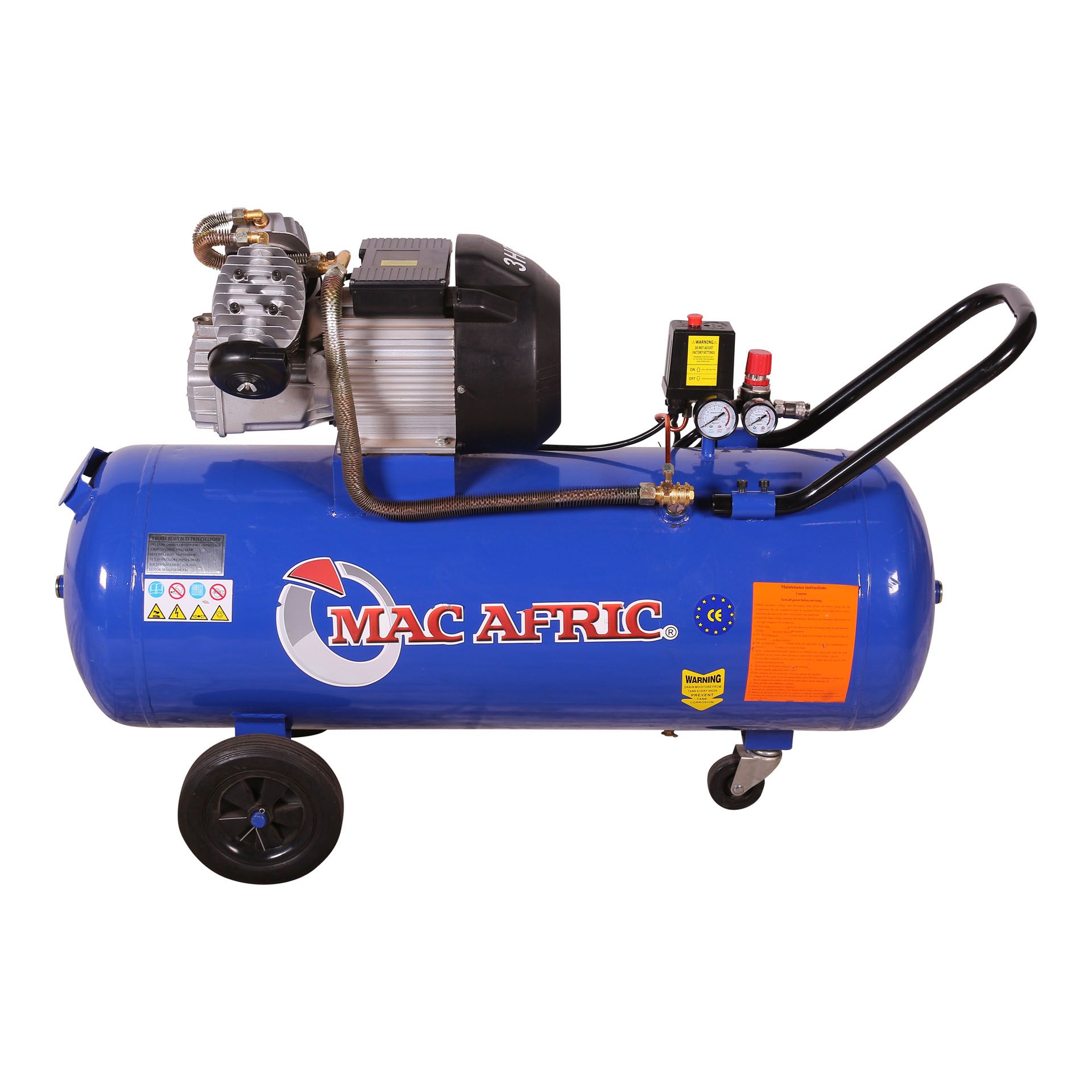

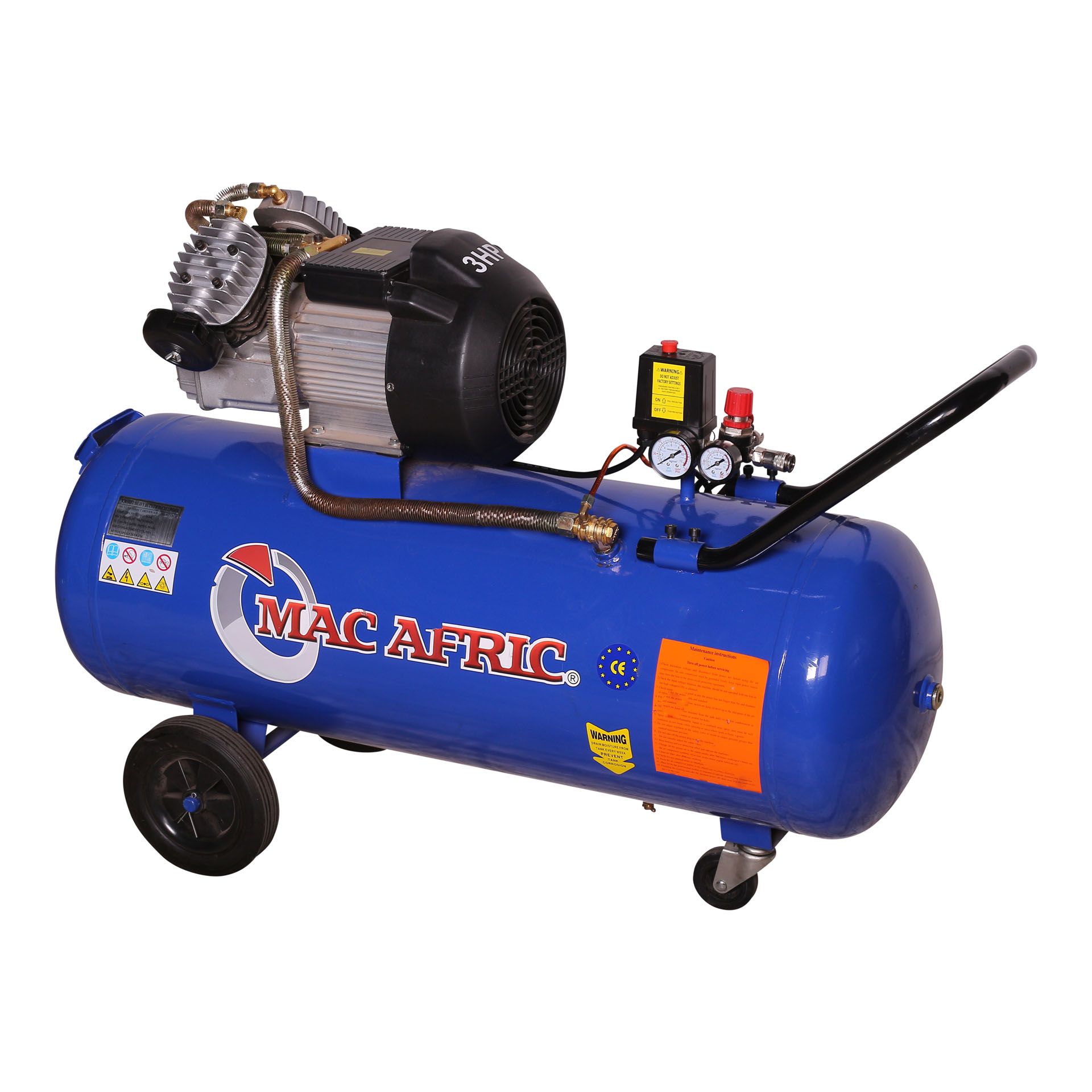

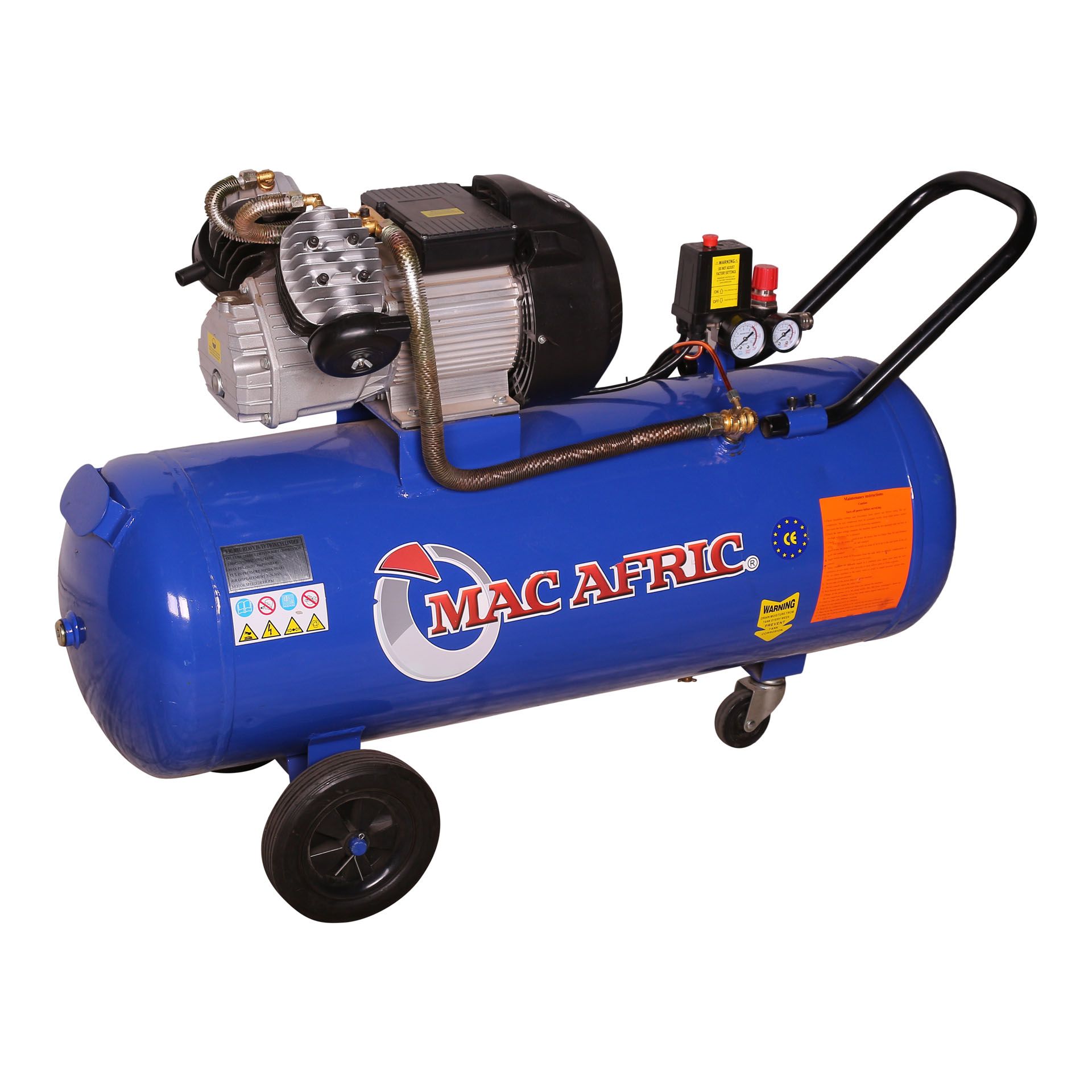

MAC AFRIC 100 Litre 2.2 KW (3 HP) 230 V Direct Drive "V-Type" Compressor
The MAC AFRIC 100 Litre "V-Type" Direct Drive Compressor is a high-performance machine designed for serious DIY enthusiasts and workshop use. Powered by a robust 3 HP electric motor, this compressor delivers excellent performance for a wide range of tasks around the workshop or home garage. Key features include an oil-lubricated twin-cylinder pump, 100-litre air tank capacity, and a maximum operating pressure of 8 bar. With an impressive air flow intake of 375 litres per minute, this compressor is perfect for demanding applications, offering reliability, power, and efficiency.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 100 L |
| Motor Output | 2.2 KW (3 HP) |
| Outlet Air Flow | 7 CFM (198 L/MIN) |
| Max Tank Pressure | 8 BAR (115 PSI) |
| Amperage | 12.5 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 850 RPM |
| Replacement Head | NA |
| Fuel Type | NA |
| Voltage | 230 V @ 50 HZ |
Key Features
- Belt-driven V-head design for efficient cooling and durability
- Powerful 3 HP motor suited for workshop and light industrial use
- Large 100L tank provides extended air supply without frequent cycling
- Delivers 198 L/min airflow for high-demand tools and applications
- Sturdy frame with vibration-damping feet and handle for portability
Expert Advice
- The air delivery test is conducted at sea level (0–10 meters). As altitude increases, air delivery will decrease accordingly
- Drain your compressor tank daily after use to avoid build-up and contamination
- Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor won’t start | Power not connected / faulty plug | Check plug, cable, and socket; ensure correct voltage |
| Motor hums but won’t run | Low voltage / jammed pump | Check power supply, inspect for debris in pump |
| Pressure builds too slowly | Air leaks / worn piston rings | Check hose and fittings for leaks, replace rings if worn |
| Excessive noise | Loose bolts / worn bearings | Tighten bolts, replace bearings if needed |
| Overheating | Poor ventilation / continuous use | Improve airflow around compressor, allow cooling breaks |
FAQs
How often should I drain the tank?
After every use to prevent rust and moisture buildup inside the tank.
What oil should I use?
Use compressor-grade oil (non-detergent) for optimal performance and long compressor life.
Can I use an extension cord?
Avoid it; use a thick, short cable only if absolutely necessary to prevent voltage drop.
How long can I run it continuously?
Operate for 15–20 minutes at a time, then allow the compressor to cool before continued use.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 110.00 |
| Package Width (cm) | 38.00 |
| Package Height (cm) | 69.00 |
| Package Weight (kg) | 68.000000 |
| Compressor Type | V-Type |
