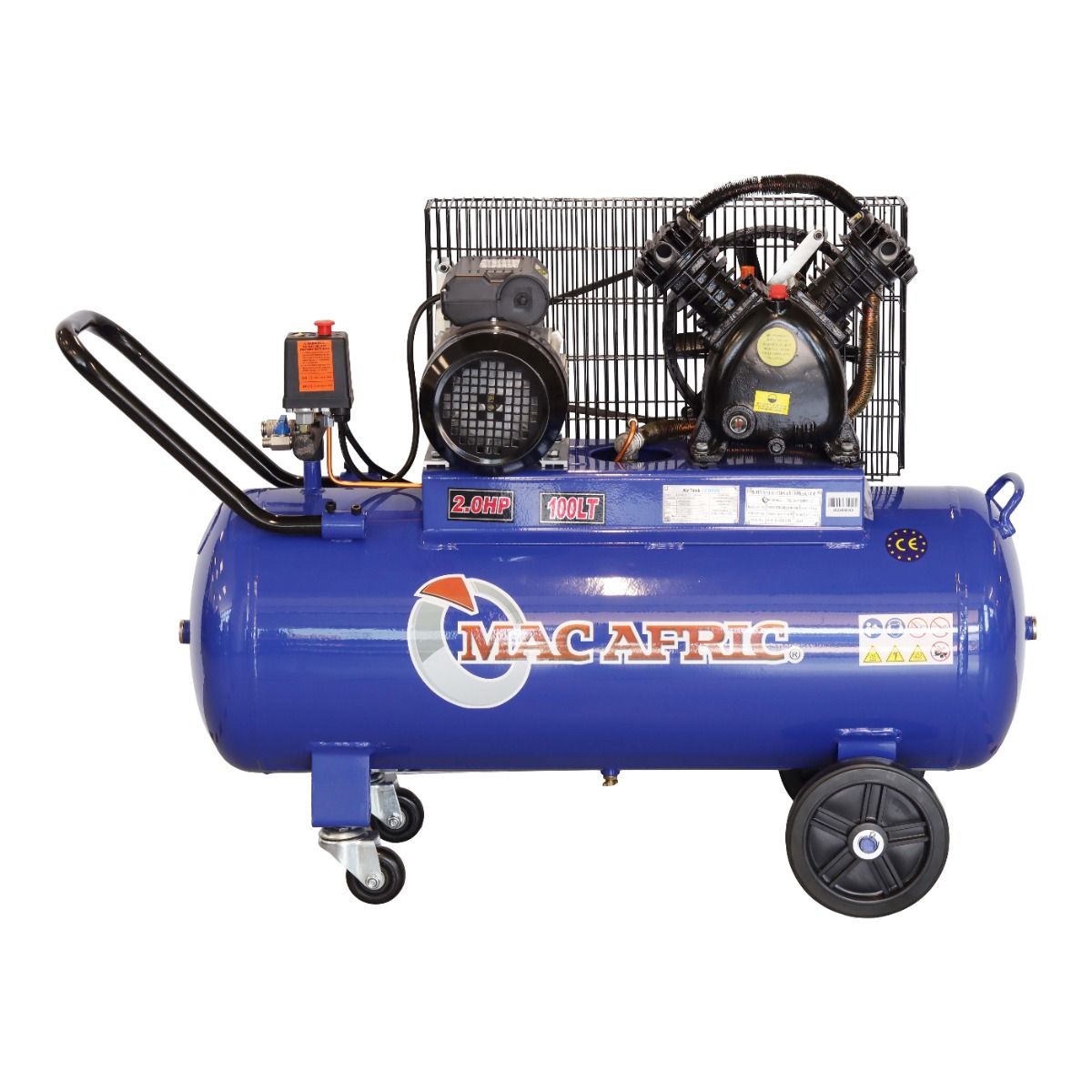

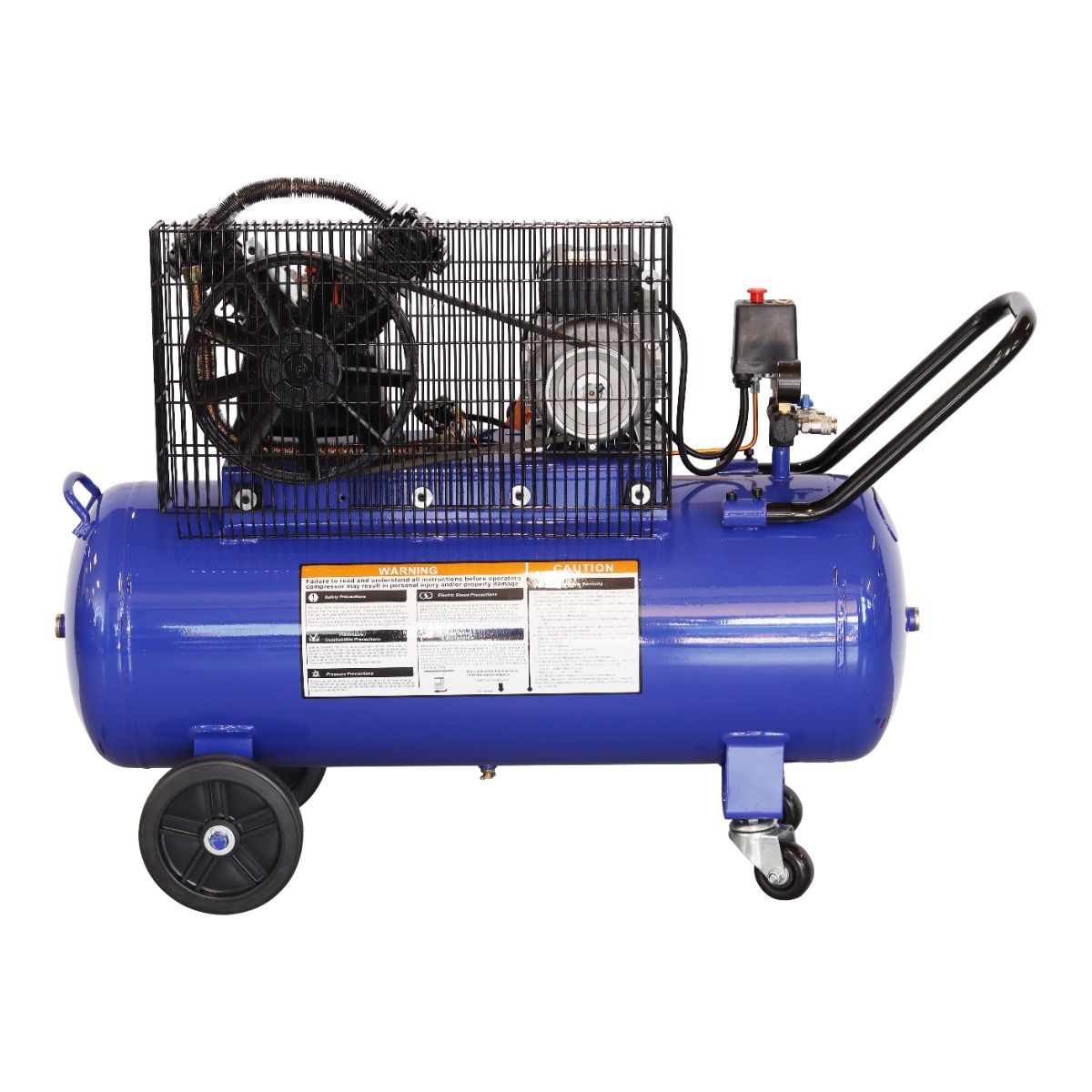

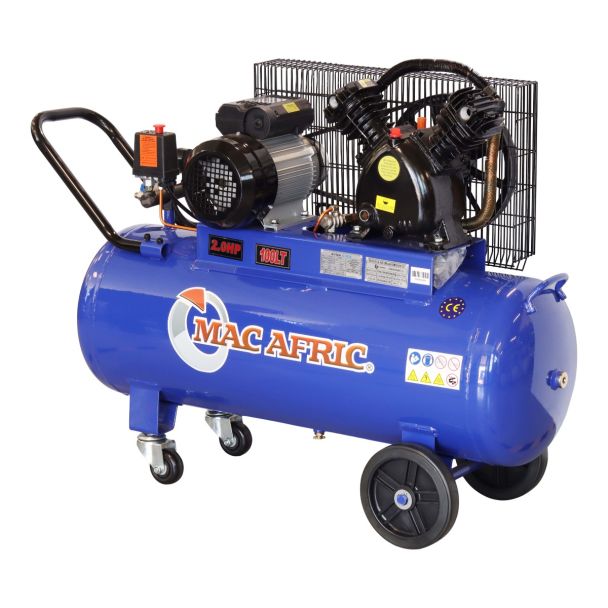

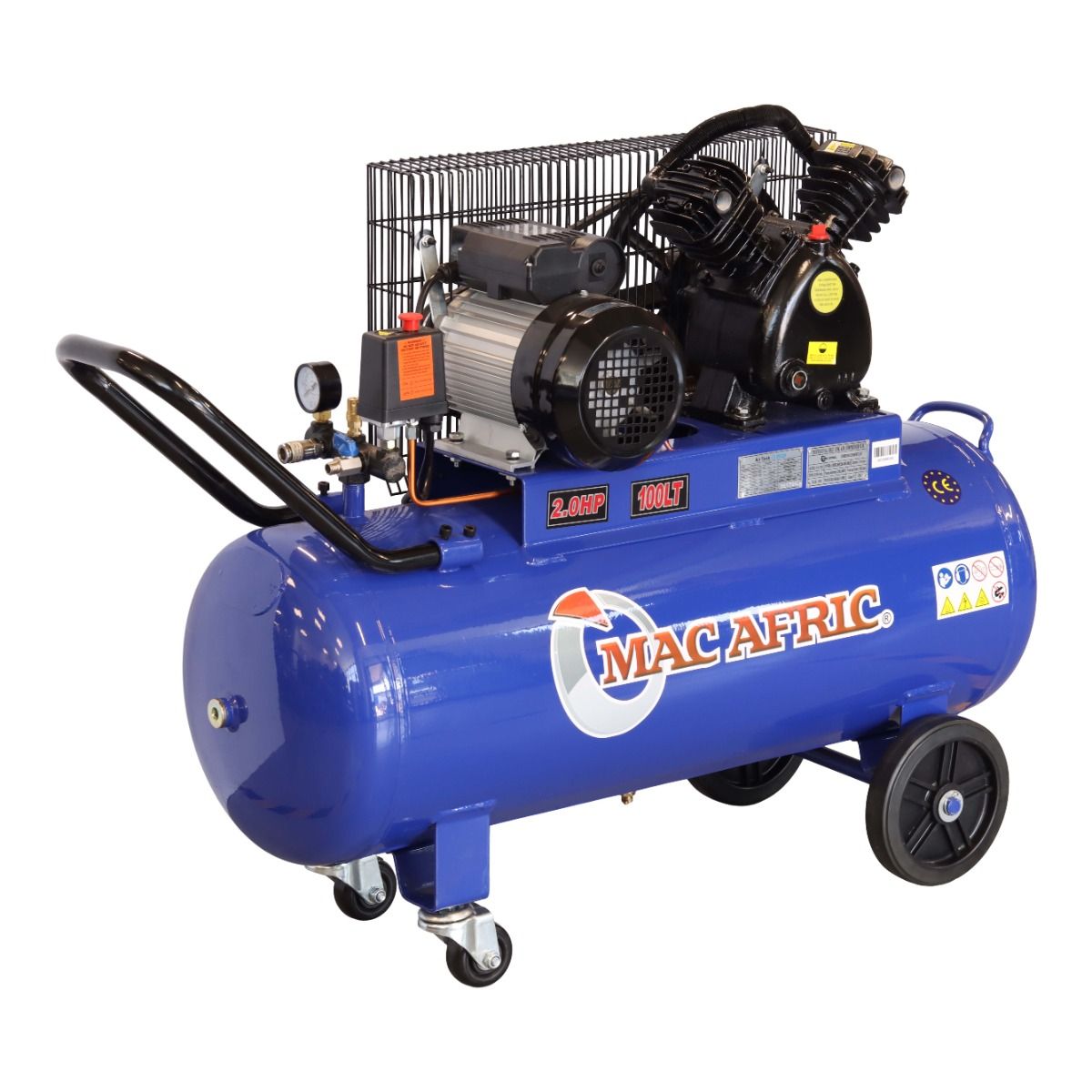

MAC AFRIC 100 Litre 1.5 KW (2 HP) 230 V Belt Driven "V-Type" Compressor
Features an aluminium air pump (v-type) with cast iron cylinders. Powerful silent running copper electrical motor. 1.5kw Motor and 100-liter receiver tank make it suitable for DIY applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 100 L |
| Motor Output | 1.5 KW (2 HP) |
| Outlet Air Flow | 6 CFM (170 L/M) |
| Max Tank Pressure | 8 BAR (115 PSI) |
| Amperage | 13.7 A |
| Compressor Type | Belt Driven V-Head |
| RPM | 2 850 RPM |
| Replacement Head | COMPRH005 |
| Fuel Type | NA |
| Voltage | 230 V @ 50 HZ |
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow build-up of pressure | Loose belt / worn piston rings | Tighten or replace belt, replace rings if worn |
| Belt slipping | Worn belt or pulley misalignment | Replace belt, align pulleys |
| Oil leaks | Worn seals / overfilled oil | Replace seals, keep oil at correct level |
| Overheating | Overworked / poor ventilation | Reduce duty cycle, improve cooling |
| Excessive vibration | Loose mounting bolts / imbalance | Tighten bolts, check for worn components |
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
Write Your Own Review
| Manuals & Videos | |
|---|---|
| Package Length (cm) | 110.00 |
| Package Width (cm) | 38.00 |
| Package Height (cm) | 76.00 |
| Package Weight (kg) | 80.000000 |
| Compressor Type | Belt Driven V-Head |
