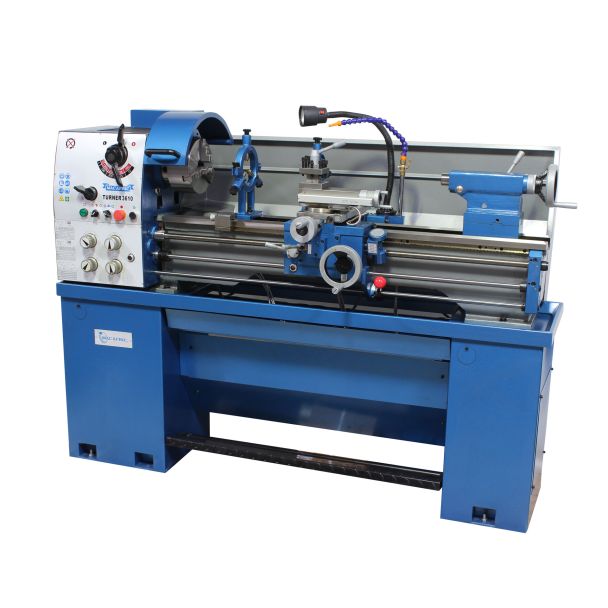

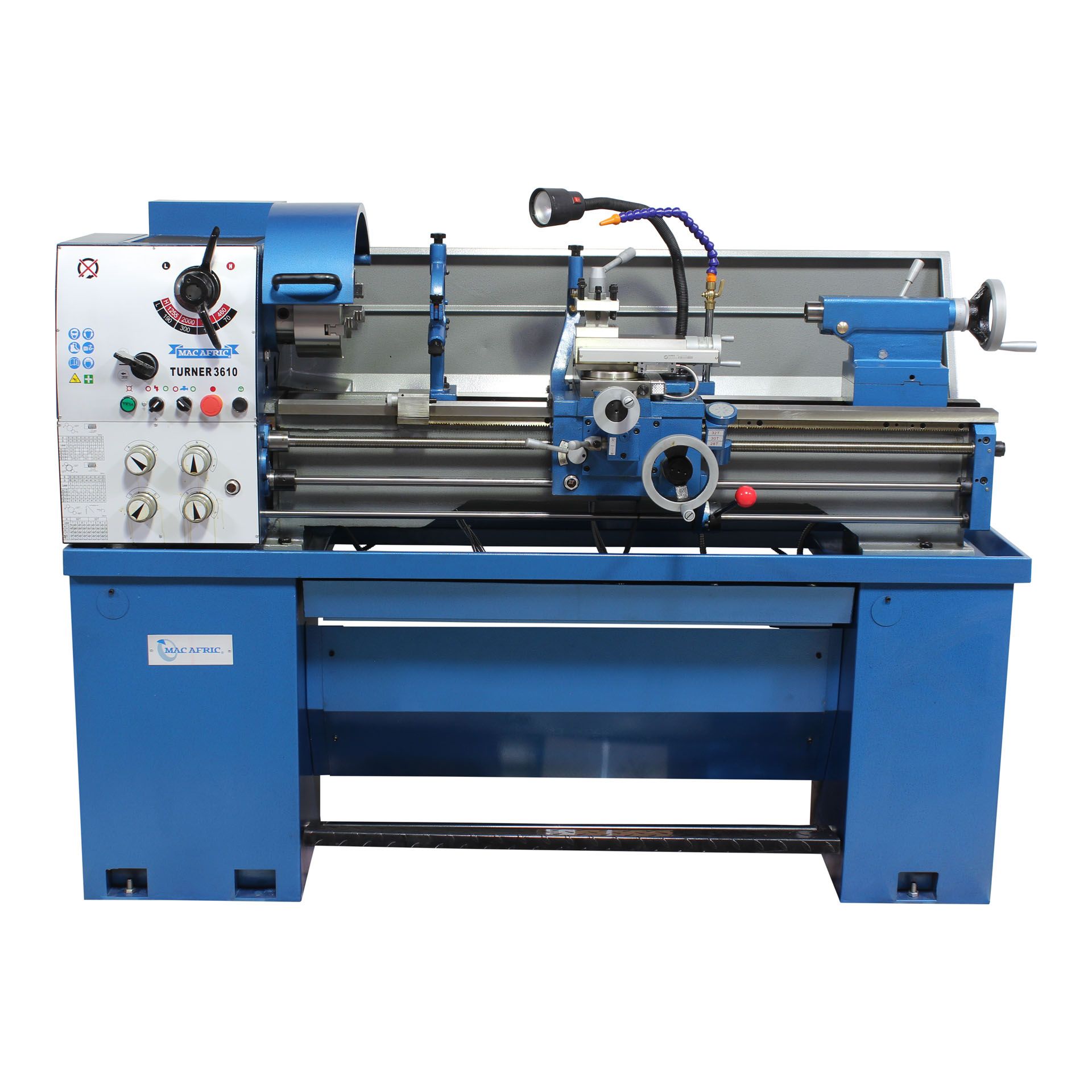

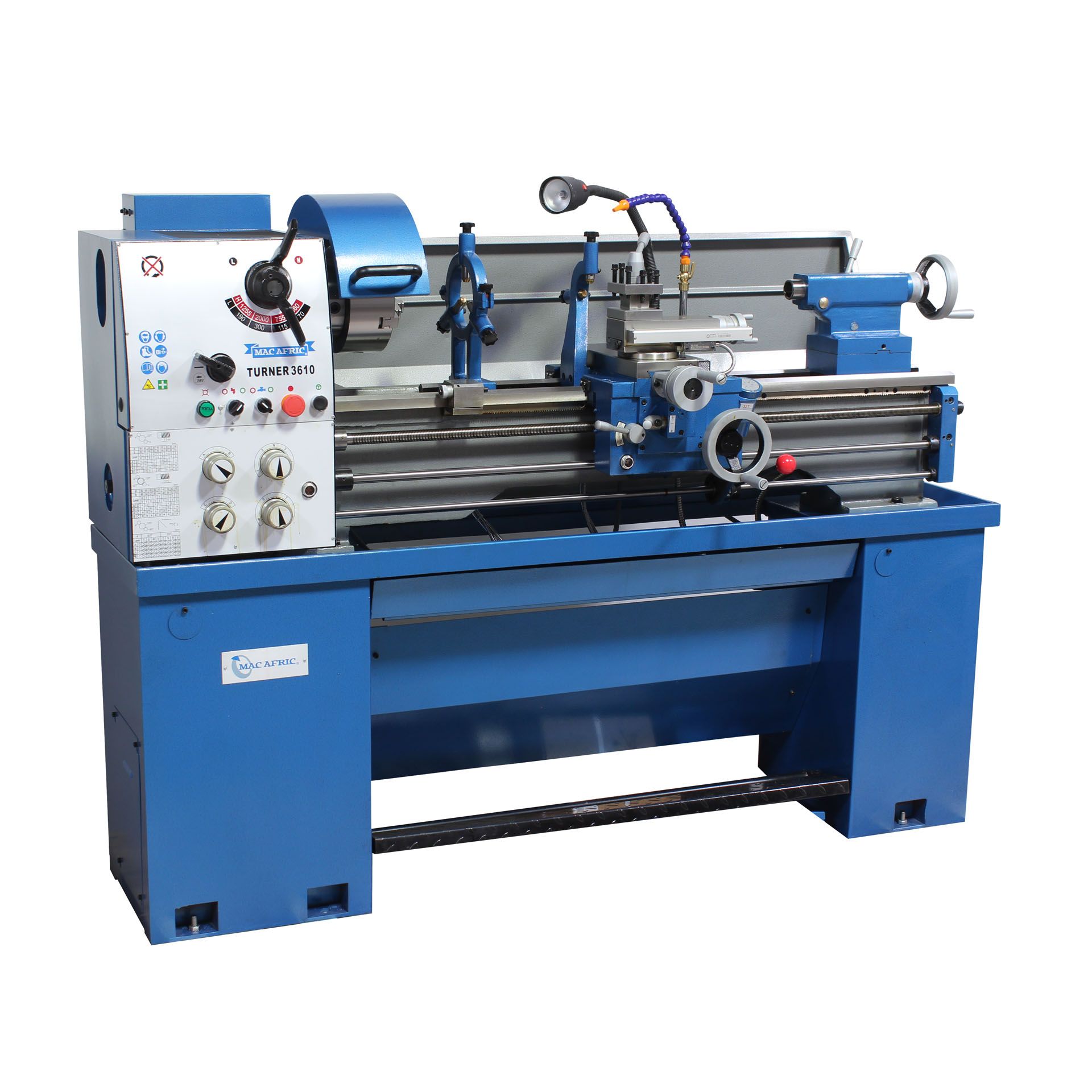

MAC AFRIC 1 M Tool Room Metal Turning Lathe (With D.R.O)
Ideal for smaller commercial workshops, this 1 m engineering lathe includes a 3-axis DRO and all key accessories, including 3-jaw and 4-jaw chucks, stand with drip tray, work light, and both steady and follow rests.
-
7-day return (unused, original packaging)
-
In-store servicing & repairs available
Technical Specifications
| Feature | Specification |
|---|---|
| Power Output | 1.5 KW (2 HP) |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Max. Swing Over Bed | 356 mm |
| Max. Swing Over Cross Slide | 210 mm |
| Max. Swing Over Gap | 506 mm |
| Distance Between Centres | 1 000 mm (39" in) |
| Width Of Bed | 187 mm |
| Spindle Bore | 52 mm |
| Taper of Spindle Bore | MT 6 |
| Range of Spindle Speeds | 70 - 2 000 RPM |
| Diameter of Tailstock Quill | 32 mm |
| Max. Travel of Tailstock Quill | 100 mm |
| Taper of Tailstock | MT 3 |
| Metric Threads Can be Cut | 0.45 - 7.5 mm |
| Imperial Threads Can be Cut | 4 - 112 TPI |
| Range of Longitudinal Feeds | 0.052 - 1.392 mm/rev |
| Range of Cross Feeds | 0.014 - 0.380 mm/rev |
| Gross Weight | 650 kg |
Write Your Own Review
| Package Length (cm) | 194.00 |
|---|---|
| Package Width (cm) | 76.00 |
| Package Height (cm) | 151.00 |
| Package Weight (kg) | 700.000000 |
| Power Output | 1.5 KW (2 HP) |
| Frequency | 50 HZ |
| Max. Swing Over Bed | 356 MM |
| Max. Swing Over Cross Slide | 220 MM |
| Max. Swing Over Gap | 506 MM |
| Width Of Bed | 187 MM |
| Spindle Bore | 52 MM |
| Range of Spindle Speeds | 70 - 2 000 RPM |
| Max. Travel of Tailstock Quill | 100 MM |
| Metric Threads Can be Cut | 0.45 - 7.5 MM |
| Imperial Threads Can be Cut | 4 - 112 TPI |
| Range of Longitudinal Feeds | 0.052 - 1.392 MM/REV |
| Range Of Cross Feeds | 0.014 - 0.380 MM/REV |
| Gross Weight | 650 KG |
| Specifications Description |
