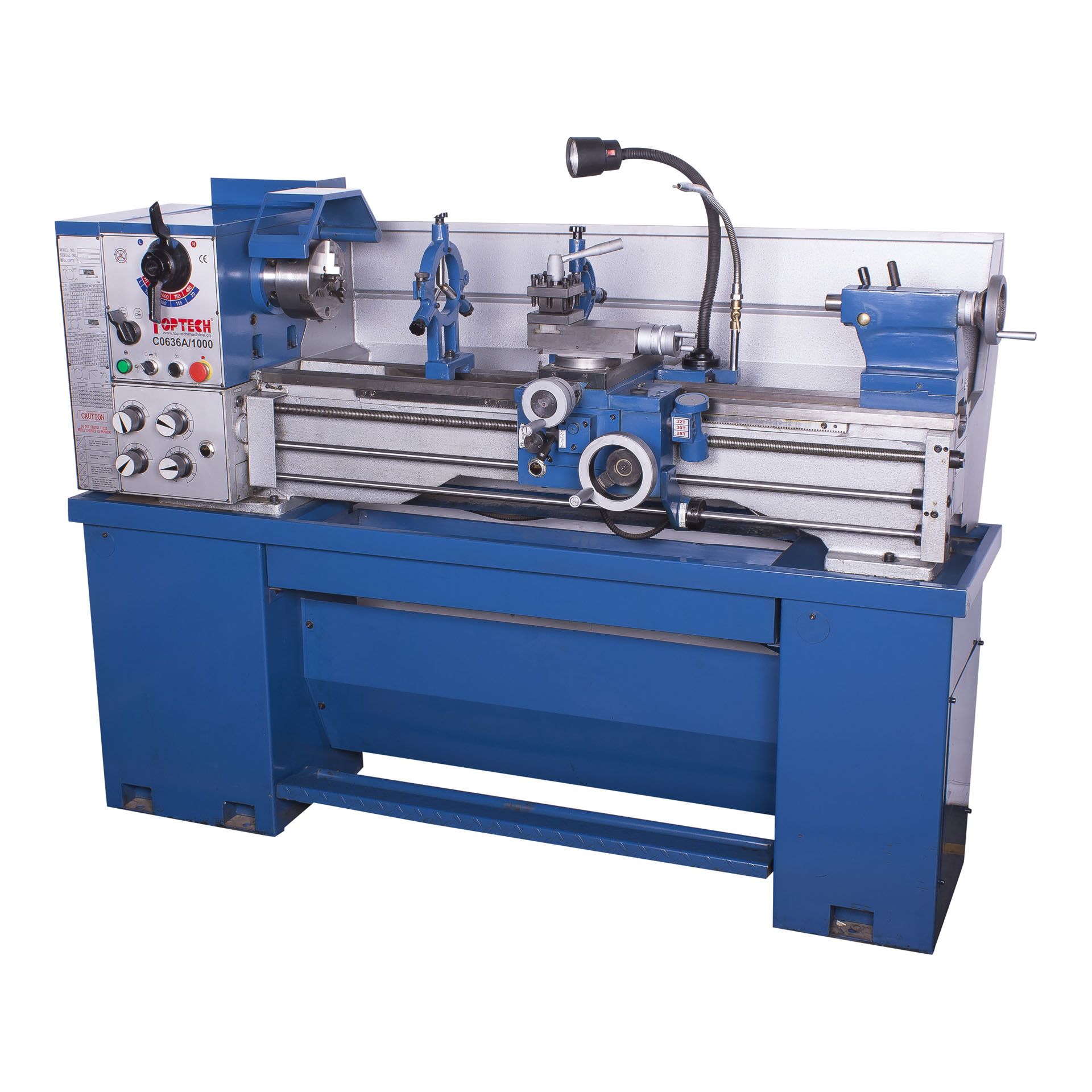

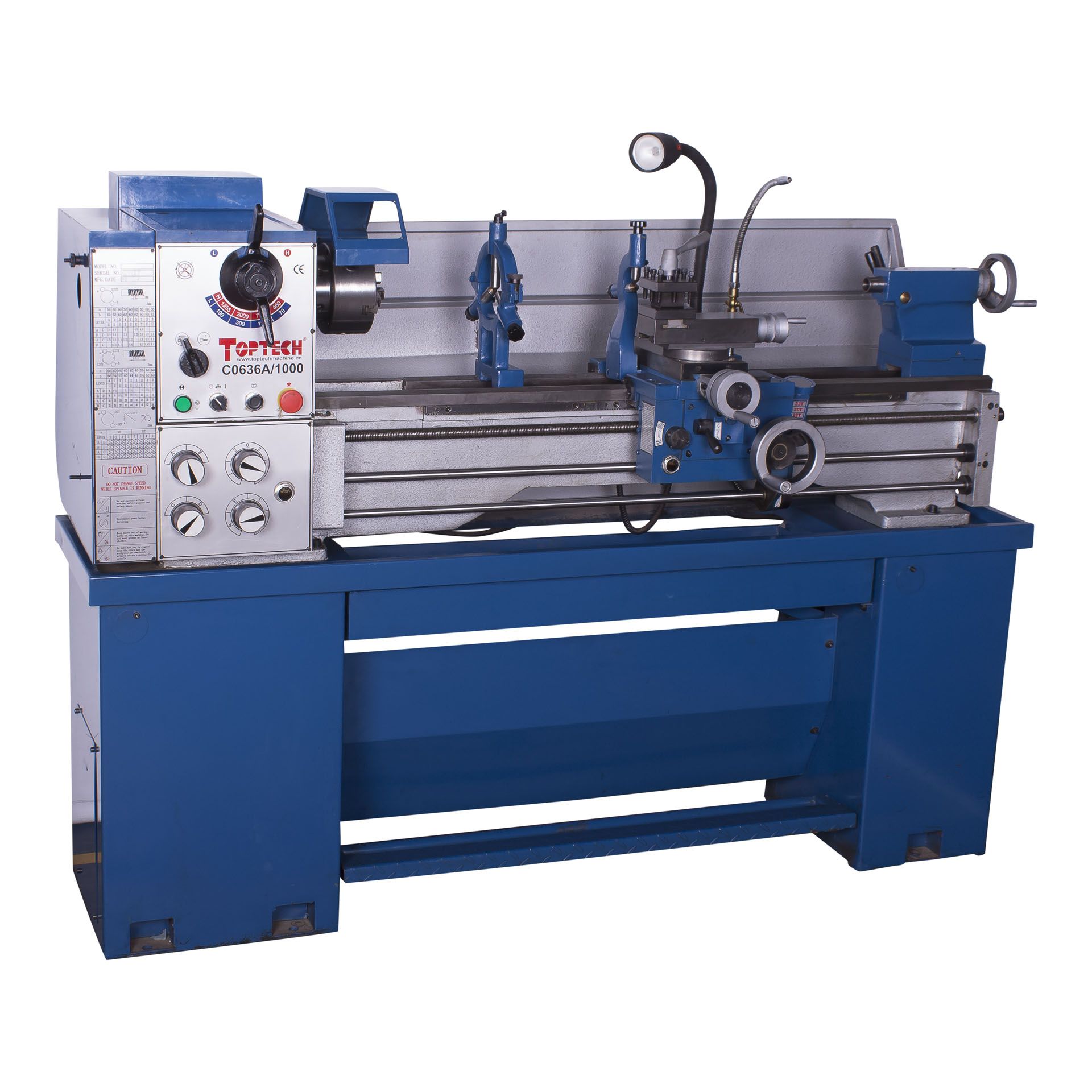

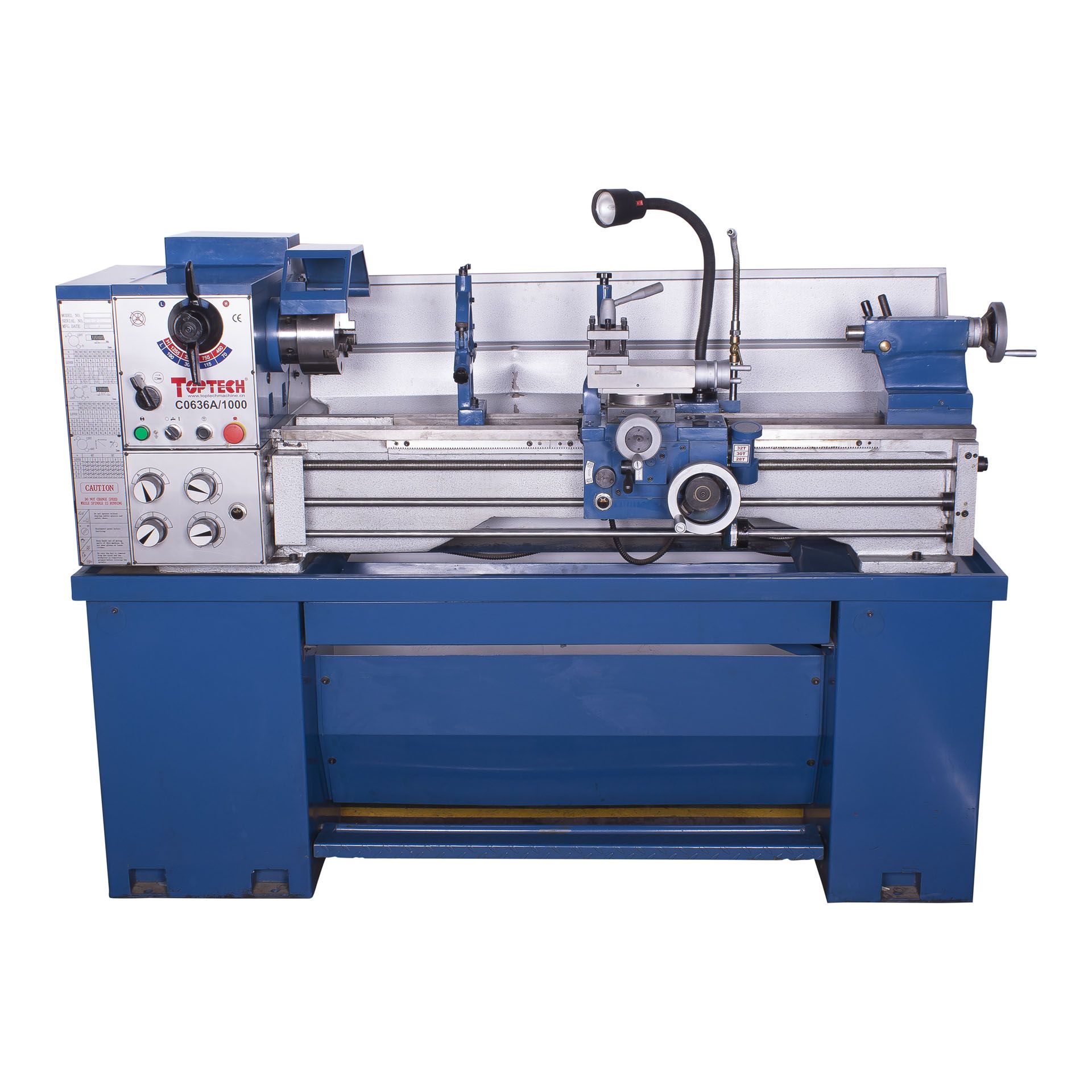

MAC AFRIC 1 M Geared Head Lathe with Stand, Foot Brake & Work Light
This superbly engineered lathe is designed to perform a wide variety of tasks.The largest model is available in a single phase.Features Double V Bed Auto Feed Gear Head.Rigid Solid Construction design.
Technical Specifications
| Feature | Specification |
|---|---|
| Power Output | 1.5 KW (2 HP) |
| Voltage | 220V |
| Frequency | 50/60 Hz |
| Max. Swing Over Bed | 356 mm |
| Max. Swing Over Cross Slide | 220 mm |
| Max. Swing Over Gap | 506 mm |
| Distance Between Centres | 1 000 mm (40" in) |
| Width Of Bed | 187 mm |
| Spindle Bore | 38 mm |
| Taper of Spindle Bore | MT 5 |
| Range of Spindle Speeds | 70 - 2 000 RPM |
| Diameter of Tailstock Quill | 32 mm |
| Max. Travel of Tailstock Quill | 100 mm |
| Taper of Tailstock | MT 3 |
| Metric Threads Can be Cut | 0.4 - 7 mm |
| Imperial Threads Can be Cut | 4 - 56 TPI |
| Range of Longitudinal Feeds | 0.052 - 1.392 mm/rev |
| Range of Cross Feeds | 0.014 - 0.380 mm/rev |
| Gross Weight | 650 kg |
| Max. Rotatory Angle of Tool Post | N/A |
| Tool Slide Travel | N/A |
Write Your Own Review
| Package Length (cm) | 194.00 |
|---|---|
| Package Width (cm) | 76.00 |
| Package Height (cm) | 151.00 |
| Package Weight (kg) | 700.000000 |
| Power Output | 1.5 KW (2 HP) |
| Frequency | 50 HZ |
| Max. Swing Over Bed | 356 MM |
| Max. Swing Over Cross Slide | 220 MM |
| Max. Swing Over Gap | 506 MM |
| Width Of Bed | 187 MM |
| Spindle Bore | 38 MM |
| Range of Spindle Speeds | 70 - 2 000 RPM |
| Max. Travel of Tailstock Quill | 100 MM |
| Metric Threads Can be Cut | 0.4 - 7 MM |
| Imperial Threads Can be Cut | 4 - 56 TPI |
| Range of Longitudinal Feeds | 0.052 - 1.392 MM/REV |
| Range Of Cross Feeds | 0.014 - 0.380 MM/REV |
| Gross Weight | 650 KG |
| Specifications Description |
