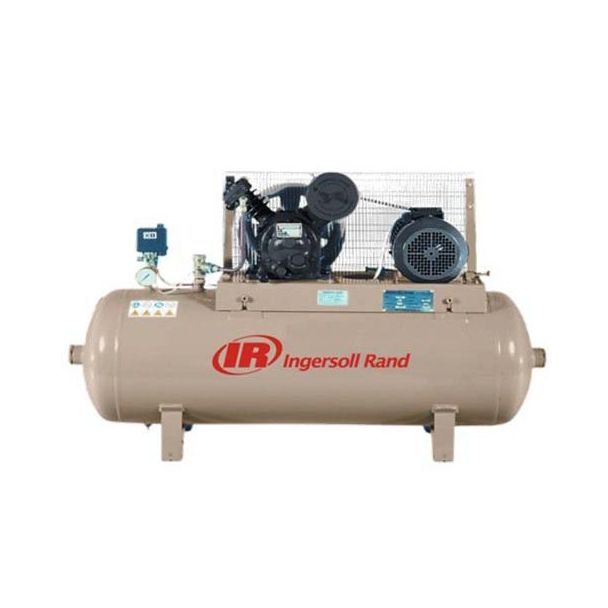

INGERSOLL RAND Type 30 500 Litre 5.5 KW (7.5 HP) 380 V Compressor
In stock
SKU
COMPRI509
R 48,950.00

INGERSOLL RAND Type 30 500 Litre 5.5 KW (7.5 HP) 380 V Compressor

In stock
SKU
COMPRI509
R 48,950.00
Check Store Availability
INGERSOLL RAND Type 30 500 Litre 5.5 KW (7.5 HP) 380 V Compressor
In stock
SKU
COMPRI509

Find a Store

2-Stage Lubricated Designed for heavy shop or industrial use, such as automotive service and body shops, machine shops, construction, car washes, and manufacturing lines, Ingersoll Rands T30 2-stage lubricated compressors, with their cast-iron cylinders, provide the quality and performance that are required in these applications.

Technical Specifications

FeatureSpecification
Tank Capacity500 L
Motor Output5.5 KW (7.5 HP)
Outlet Air Flow18.36 CFM (520 L/MIN)
Max Tank Pressure14 Bar (203 PSI)
Amperage14.4 A
Compressor TypeBelt Driven
RPM2 850 RPM
Voltage380 V @ 50 HZ
PhaseThree Phase

Expert Advice

Drain your compressor tank daily after use to avoid build-up and contamination. Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.

Write Your Own Review
You're reviewing:INGERSOLL RAND Type 30 500 Litre 5.5 KW (7.5 HP) 380 V Compressor
Your Rating
More Information
Package Length (cm) 190.00
Package Width (cm) 68.00
Package Height (cm) 129.00
Package Weight (kg) 210.000000
Compressor Type Belt Driven
Specifications Description

Tank Capacity: 500 L

Motor Output: 5.5 KW (7.5 HP)

Outlet Air Flow: 18.36 CFM (520 L/MIN)

Max Tank Pressure: 14 Bar (203 PSI)

Amperage: 14.4 A

Compressor Type: Belt Driven

RPM: 2 850 RPM

Voltage: 380 V @ 50 HZ

Phase: Three Phase
