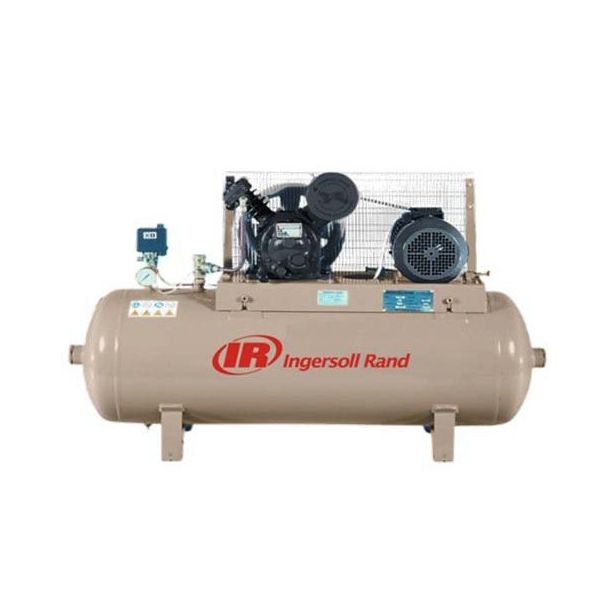

INGERSOLL RAND Type 30 500 Litre 11 KW (15 HP) 380 V Compressor
2-Stage Lubricated Designed for heavy shop or industrial use, such as automotive service and body shops, machine shops, construction, car washes and manufacturing lines, Ingersoll Rand’s T30 2-stage lubricated compressors, with their cast iron cylinders, provide the quality and performance that are required in these applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Capacity | 500 L |
| Motor Output | 11 KW (15 HP) |
| Outlet Air Flow | 37.08 CFM (1 050 L/MIN) |
| Max Tank Pressure | 14 BAR (204 PSI) |
| Amperage | 2.4-12.4 A |
| Compressor Type | Electrical Belt Driven |
| RPM | 1 460-1 752 RPM |
| Voltage | 380 V @ 50 HZ |
| Phase | Three Phase |
Expert Advice
Drain your compressor tank daily after use to avoid build-up and contamination. Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Write Your Own Review
| Package Length (cm) | 198.00 |
|---|---|
| Package Width (cm) | 70.00 |
| Package Height (cm) | 152.20 |
| Package Weight (kg) | 110.000000 |
| Compressor Type | Electrical Belt Driven |
| Specifications Description | Tank Capacity: 500 L Motor Output: 11 KW (15 HP) Outlet Air Flow: 37.08 CFM (1 050 L/MIN) Max Tank Pressure: 14 BAR (204 PSI) Amperage: 2.4-12.4 A Compressor Type: Electrical Belt Driven RPM: 1 460-1 752 RPM Voltage: 380 V @ 50 HZ Phase: Three Phase |
