INGERSOLL RAND 270L 5.5 KW (7.5 HP) 380 V Belt Driven Fixed Receiver Air Compressor
In stock
SKU
COMPRI275
R 35,950.00

INGERSOLL RAND 270L 5.5 KW (7.5 HP) 380 V Belt Driven Fixed Receiver Air Compressor

In stock
SKU
COMPRI275
R 35,950.00
Check Store Availability
INGERSOLL RAND 270L 5.5 KW (7.5 HP) 380 V Belt Driven Fixed Receiver Air Compressor
In stock
SKU
COMPRI275

Find a Store

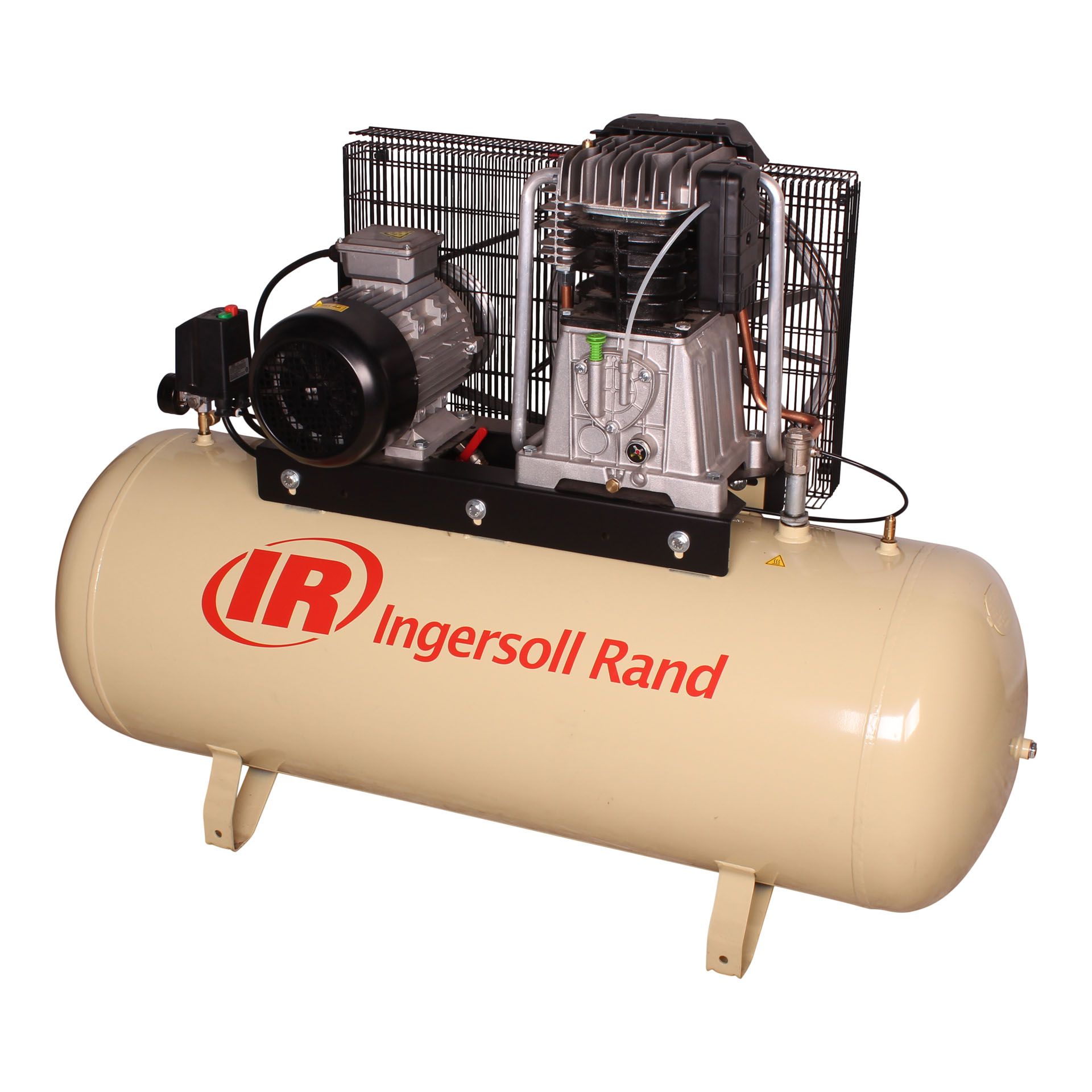

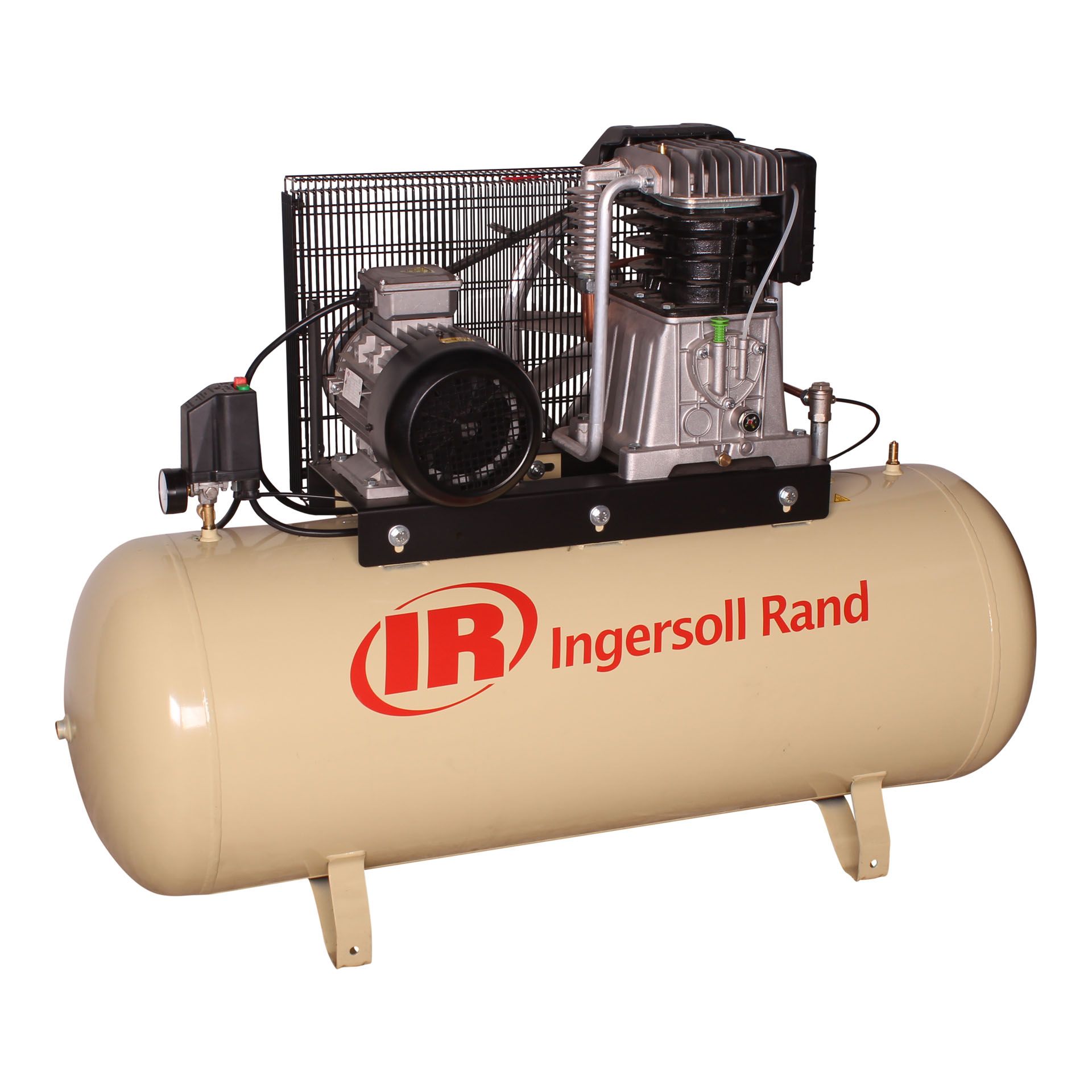

A belt-driven air compressor comprised of an aluminium 2-stage air pump with cast iron cylinders and a smooth running TEFV electrical motor. Features a fixed receiver for more industrial settings.

Technical Specifications

FeatureSpecification
Tank Capacity270 L
Motor Output5.5 KW (7.5 HP)
Outlet Air Flow21.9 CFM (620 L/MIN)
Max Tank Pressure10 Bar (145 PSI)
Amperage14.4 A
Compressor TypeBelt Driven
RPM2 850 RPM
Voltage380 V @ 50 HZ
PhaseThree Phase

Expert Advice

Drain your compressor tank daily after use to avoid build-up and contamination. Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.

Write Your Own Review
You're reviewing:INGERSOLL RAND 270L 5.5 KW (7.5 HP) 380 V Belt Driven Fixed Receiver Air Compressor
Your Rating
More Information
Package Length (cm) 175.00
Package Width (cm) 59.00
Package Height (cm) 120.00
Package Weight (kg) 142.000000
Compressor Type Belt Driven
Specifications Description

Tank Capacity: 270 L

Motor Output: 5.5 KW (7.5 HP)

Outlet Air Flow: 21.9 CFM (620 L/MIN)

Max Tank Pressure: 10 Bar (145 PSI)

Amperage: 14.4 A

Compressor Type: Belt Driven

RPM: 2 850 RPM

Voltage: 380 V @ 50 HZ

Phase: Three Phase
