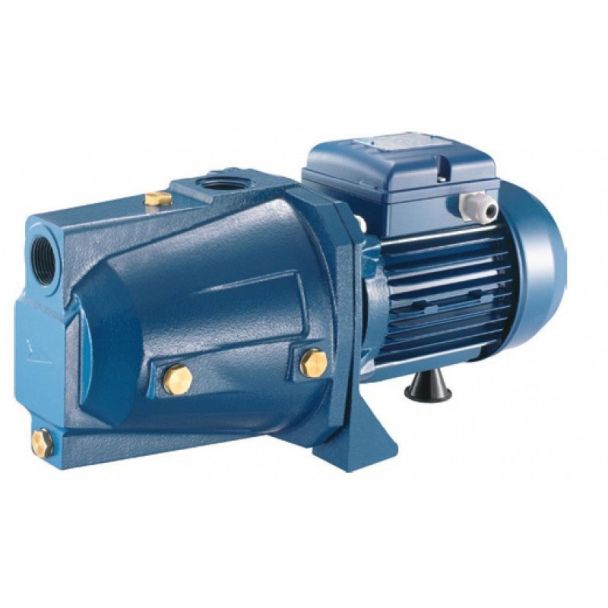

Self-priming centrifugal pump for water supplies (even if mixed with gas) in small household systems, connected to autoclave tanks, for transferring liquids and emptying tanks; also used for gardening.
| CONSTRUCTION FEATURES | |
|---|---|
| Pump Body | cast iron |
| Motor Bracket | aluminum |
| Impeller | noryl® |
| Mechanical Seal | ceramic-graphite-NBR |
| Motor Shaft | stainless steel AISI 416 |
| Liquid Temperature | 0 - 50 °C |
| Operating Pressure | max 7 bar |
| Maximum Flow Rate | 70 l/m (4,2m³/h) |
| Maximum Head | 50,9m |
| MOTOR | |
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX4 |
| Amperage | 4,7 A |
| Power Output | 0,74 KW (1 HP) |
| DIMENSIONS | |
| Inlet Size | 1" G |
| Outlet Size | 1" G |
| Feature | Specification |
|---|---|
| Pump Body | Cast iron |
| Motor Bracket | Aluminum |
| Impeller | Noryl® |
| Mechanical Seal | Ceramic-graphite-NBR |
| Motor Shaft | Stainless steel AISI 416 |
| Liquid Temperature | 0 - 50 °C |
| Operating Pressure | Max 7 bar |
| Maximum Flow Rate | 70 l/m (4.2m³/h) |
| Maximum Head | 50.9m |
| Feature | Specification |
|---|---|
| Two Poles Induction Motor | 1~ 230V-50Hz (with thermal protection) |
| Insulation Class | F |
| Protection Degree | IPX4 |
| Amperage | 4.7A |
| Power Output | 0.74 KW (1 HP) |
| Feature | Specification |
|---|---|
| Inlet Size | 1' G |
| Outlet Size | 1' G |
| Manuals & Videos | PENTAX Surface – New Manual (Rev.05-04-2024) (PDF)
Download Full Manual
PENTAX Surface – Old Manual (Rev.3) (PDF)
Download Full Manual

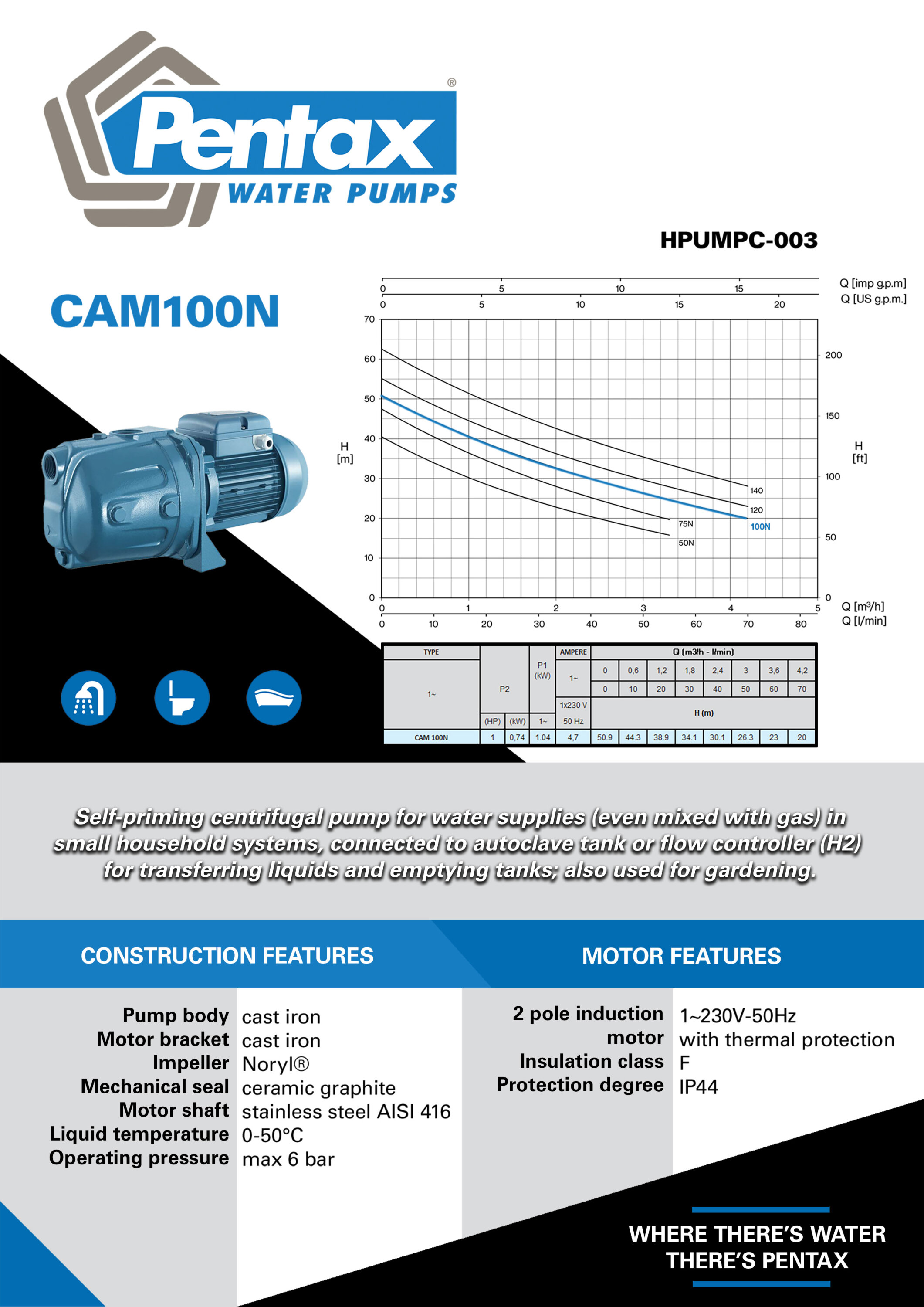

CAM100N – Weights & Dimensions Sheet (Image)
Download Image
CAM – Infographic (PDF)
Download PDF
CAM – 50Hz Catalogue (PDF)
Download PDF
Construction Features
Motor
Dimensions
|
||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Package Length (cm) | 19.80 | ||||||||||||||||||||||||||||||||||||||
| Package Width (cm) | 43.80 | ||||||||||||||||||||||||||||||||||||||
| Package Height (cm) | 21.40 | ||||||||||||||||||||||||||||||||||||||
| Package Weight (kg) | 17.200000 | ||||||||||||||||||||||||||||||||||||||
