Fluke TC01A 9Hz + Pouch
Out of stock
SKU
TTESTT010
R 16,780.00

Fluke TC01A 9Hz + Pouch

Out of stock
SKU
TTESTT010
R 16,780.00
Check Store Availability
Fluke TC01A 9Hz + Pouch
Out of stock
SKU
TTESTT010

Find a Store

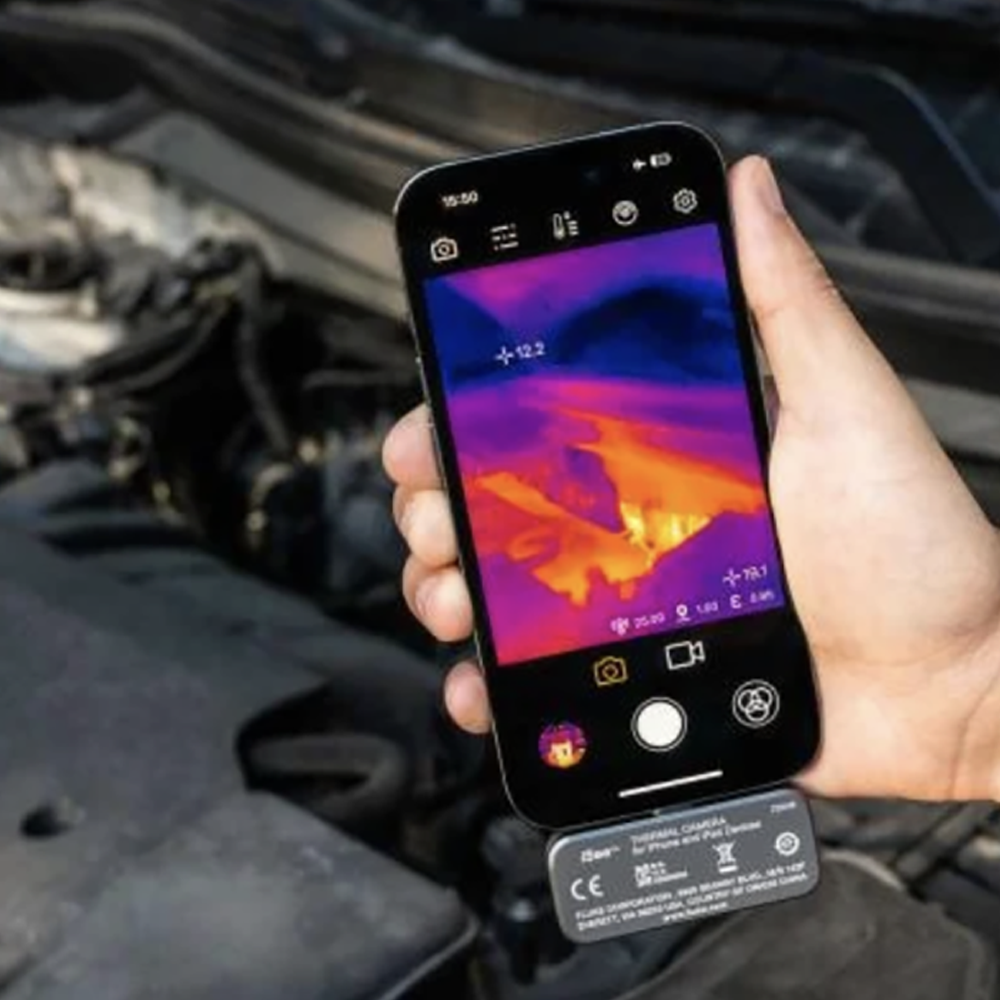

The Fluke iSee™ Mobile Thermal Camera delivers fast, on-the-go inspections with pro-grade image quality in a compact 22g design. With a 256 x 192 resolution, 25 Hz video, and a wide temperature range up to 550°C, it’s perfect for diagnosing HVAC issues, checking electrical panels or installing underfloor heating. Quick to start and easy to use, it also includes detailed temperature analysis tools for accurate, reliable results.



Technical Specifications

FeatureTC01ATC01B
IR Resolution256 × 192256 × 192
Pixel Size12 μm12 μm
Temperature Range-10 °C to 550 °C (14 °F to 1022 °F)-20 °C to 550 °C (-4 °F to 1022 °F)
Accuracy±2% of reading or ±2 °C (3.6 °F), whichever is greater (at 23 °C ±5 °C)
Measurement Distance0.25 m to 5 m (*–20 °C to 10 °C valid from 0.25 m to 3 m)
Frame Rate9 Hz or 25 Hz models25 Hz
Warm-up Time1 minute1 minute
Focal LengthFixed, 3.2 mm
Shutter ModeInternal
Thermal Sensitivity (NETD)50 mK (0.05 °C)
Spectral Range8 to 14 μm
Field of View (H x V)56° × 42°
Spatial Resolution3.81 mrad
USB InterfaceType-CLightning
Operating TemperatureUp to 40 °C
Storage Temperature-30 °C to 60 °C
Operating Humidity10% to 90% RH, non-condensing
Power Consumption350 mW (typical)200 mW (typical)
Drop Test1 m
Ingress ProtectionIP54 (with protective cover)IP56
Operating Altitude2000 m
Storage Altitude12,000 m
Dimensions (L × W × H)60 × 33.5 × 11.2 mm
EMC StandardsIEC 61326-1: Portable Electromagnetic Environment
CISPR 11: Group 1, Class A
Regulatory ComplianceFCC 47 CFR 15 Subpart B (exempt under clause 15.103)
Korea KCCClass A (Industrial Equipment)
Warranty2 Years

Key Features

  • 256 × 192 resolution for professional-level thermal image clarity
  • Temperature measurement range up to 550 °C (1022 °F)
  • ±2% or ±2 °C accuracy ensures reliable results across applications
  • Thermal sensitivity of 50 mK (0.05 °C) for detecting fine differences
  • Supports real-time high and low temperature capture with image annotation
  • Customizable color palettes (10+ standard or custom options)
  • Infrared and visible light image comparison for easy locating and documentation
  • Real-time temperature alarms with unattended time-lapse photography option
  • Compact and portable at only 22 g (0.78 oz)
  • Rugged construction with 1 m drop resistance and IP54/IP56 protection

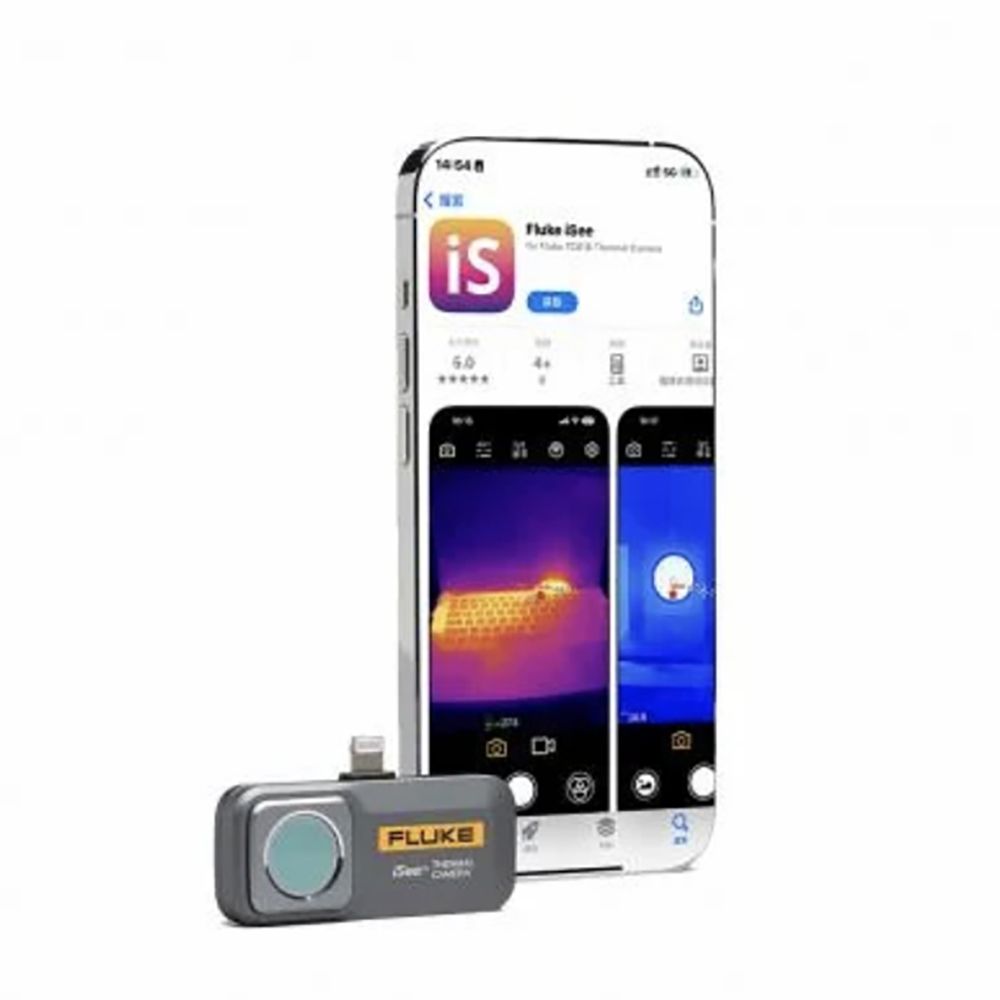

  • Optimized Fluke iSee™ app interface for professional usability
  • Real-time image and video sharing with annotation support
