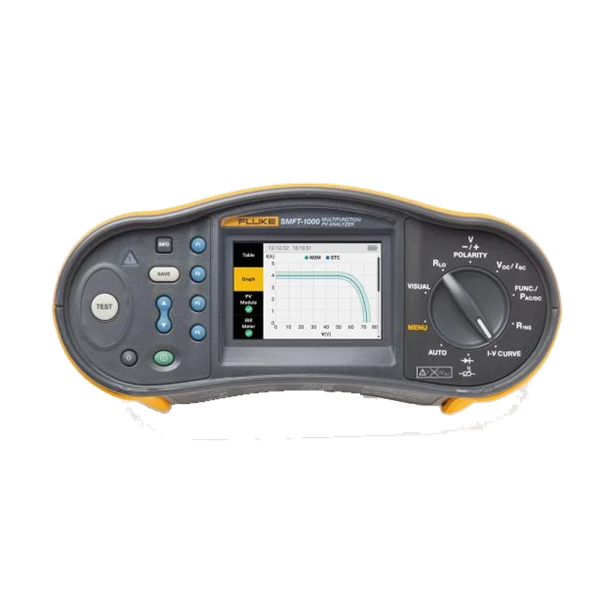

Test / Feature | Specification |
Protective Conductor Resistance (RLo) |
Display Range: 0.00 – 19.99 Ω / 20.0 – 199.9 Ω / 200 – 2000 Ω
Measuring Range / Resolution: 0.20 – 19.99 Ω (0.01 Ω)
Accuracy: ±(2 % + 2 digits) for first two ranges; ±(5 % + 2 digits) for 200 Ω – 2000 Ω
|
Open-Circuit Voltage (Voc) |
Display Range: 0.0 – 99.9 V / 100 – 1000 V
Measuring Range: 5.0 – 99.9 V & 100 – 1000 V
Resolution: 0.1 V / 1 V
Accuracy: ±(0.5 % + 2 digits)
|
Short-Circuit Current (Isc) |
Display Range & Measuring Range: 0.0 – 20.0 A (0.2 – 20.0 A usable)
Resolution: 0.1 A
Accuracy: ±(1 % + 2 digits)
|
Insulation Resistance (Rins) |
0.00 – 99.99 MΩ (0.01 MΩ) – ±(5 % + 5 digits)
100.0 – 199.9 MΩ (0.1 MΩ) – ±(10 % + 5 digits)
200 – 999 MΩ (1 MΩ) – ±(20 % + 5 digits)
|
Test Voltages for Insulation |
No-load: 50 V / 100 V / 250 V / 500 V / 1000 V (±0 to +20 %)
Under ≥1 mA load: same voltages, up to +10 %
|
Blocking Diode Test (Vbd) |
Range: 0.00 – 6.00 V dc (0.50 – 6.00 V measuring)
Resolution: 0.01 V
Accuracy: ±(5 % + 10 digits)
|
Surge Protection Device (SPD) |
Range: 0 – 1000 V dc
Measuring Range: 50 – 1000 V
Resolution: 1 V
Accuracy: ±(10 % + 5 digits)
|
AC/DC Voltage (4 mm sockets) |
AC: 0.0 – 99.9 V / 100 – 700 V, resolution 0.1 / 1 V, accuracy ±(2.5 % + 2 digits)
DC: 0.0 – 99.9 V / 100 – 1000 V, same resolution & accuracy
|
Current (with i100 Clamp) |
Range: 0 – 100 A AC/DC (true RMS for AC)
Resolution: 0.1 A
Accuracy: ±(5 % + 2 digits) *
* i100 clamp spec excludes instrument tolerances
|
i100 Clamp Output Tolerance |
1 – 100 A AC/DC (<1 kHz) → 10 mV/A
Accuracy: ±(1.5 % + 0.1 A)
|
Power Measurement (AC/DC) |
Voltage Range: 0.0 – 700 V AC / 0.0 – 1000 V DC (5.0 V min)
Current Range: 0 – 100 A AC/DC (1.0 A min)
Power Range: 0 – 100 kW / kVA
Resolution: 0.1 V, 0.1 A, 1 kW/kVA
Accuracy: ±(2.5 % + 2 digits) for V, ±(6.5 % + 3 digits) for I, ±(10 % + 4 digits) for power
|
Physical & General |
Size: 10 × 25.0 × 12.5 cm (3.8 × 9.8 × 4.9 in)
Weight: 1.4 kg (3.09 lb)
Battery: 6 × AA (IEC LR6)
Operating temp: 0 °C to 50 °C; Storage: –30 °C to 60 °C (batteries removed)
Operating altitude: up to 2000 m; Storage altitude: up to 2000 m
Safety: IEC 61010‑1 (Pollution Degree 2), IEC 61010‑2‑034 CAT III 1000 V DC / 700 V AC
Accessories rated per CAT / voltage standards (clamps, leads, probes)
Performance standards: IEC 61557‑1, ‑2, ‑4, ‑10
EMC: IEC 61326‑1, CISPR 11 Group 1 Class A
Wireless Module: 2.402 – 2.480 GHz, Output 8 dBm
|
