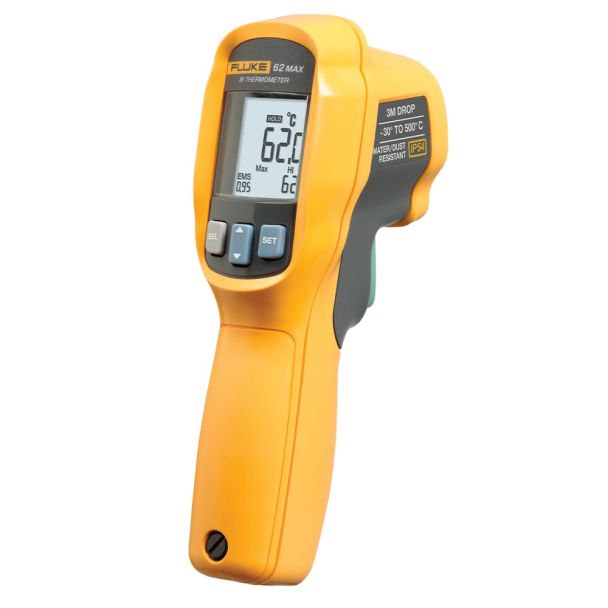

The Fluke 62 MAX Mini IR Thermometer offers precise non-contact temperature measurement with a single laser and 10:1 distance to spot ratio. Compact and easy to use, it's ideal for checking motors, pumps, panels, valves and more. With an IP54 rating for dust and water resistance plus 3-metre drop durability, it’s built for tough industrial environments and delivers reliable results even in hard-to-reach areas.

Feature	Specification
Temperature Range	-30°C to 500°C (-22°F to 932°F)
Accuracy	±1.5°C or ±1.5% of reading (whichever is greater) -10°C to 0°C: ±2.0°C -30°C to -10°C: ±3.0°C
Response Time (95%)	< 500 ms (95% of reading)
Spectral Response	8 to 14 microns
Emissivity	0.10 to 1.00 (adjustable)
Optical Resolution	10:1 (calculated at 90% energy)
Display Resolution	0.1°C (0.2°F)
Repeatability	±0.8% of reading or < ±1.0°C (2°F), whichever is greater
Power Supply	1 x AA battery
Battery Life	10 hours (with laser and backlight on)
Weight	255 g (8.99 oz)
Dimensions (H x W x D)	175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F), without battery
Operating Humidity	10% to 90% RH non-condensing at 30°C (86°F)
Operating Altitude	Up to 2000 m above sea level
Storage Altitude	Up to 12,000 m above sea level
IP Rating	IP54 (IEC 60529)
Drop Test	3 meters (9.8 ft)
Vibration & Shock	IEC 68-2-6: 2.5 g, 10 to 200 Hz IEC 68-2-27: 50 g, 11 ms
Electromagnetic Compliance	IEC 61326-1: Portable electromagnetic equipment
Safety Standards	IEC 61010-1: Pollution Degree 2 IEC 60825-1: Class 2 (Laser Safety)

Manuals & Videos	Fluke 62 MAX – User Manual 0100 (PDF) Download Full Manual Fluke 62 MAX – User Manual 0102 (PDF) Download Full Manual Fluke 62 MAX & 62 MAX+ – User Manual (PDF) Download Full Manual Fluke 62 MAX – Calibration Information (PDF) Download Full Manual Fluke Document – 6003588_6003_ENG_A_W (PDF) Download Full Manual Fluke Document – 4221738_6003_ENG_A_W (PDF) Download Full Manual Fluke Document – 6008893_0000_ENG_A_W (PDF) Download Full Manual Fluke Thermal Imaging Family Brochure – 2674264u-en (PDF) Download Full Manual Fluke Document – 6004430_0000_ENG_B_W (PDF) Download Full Manual
Package Weight (kg)	0.255000
Package Length (cm)	17.5
Package Width (cm)	8.5
Package Height (cm)	7.5
Consignment	Yes
