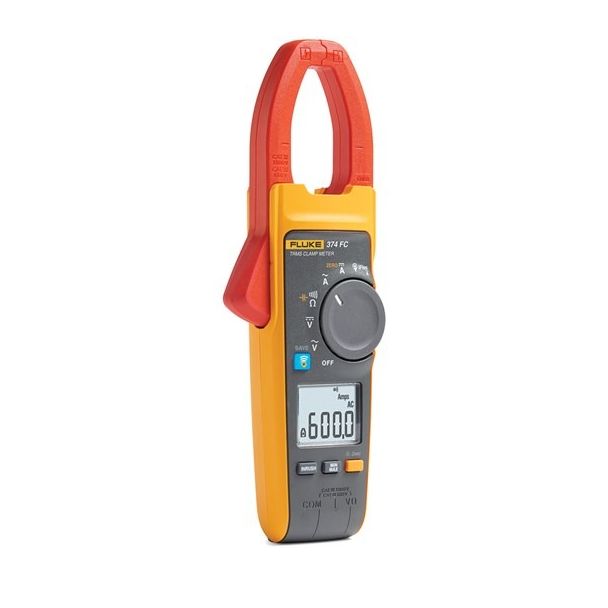

Fluke 374 FC 600A TRMS Clamp Meter
The Fluke 374 FC, part of the Fluke Connect wireless family, is built for everyday troubleshooting. It measures AC/DC current up to 600 A with the fixed jaw clamp or up to 2500 A using the optional iFlex® probe for large conductors and tight spaces. It also measures AC/DC voltage to 1000 V and resistance up to 6000 Ω.
Technical Specifications
Feature | Specification |
---|---|
AC Current via Jaw | 600.0 A Resolution: 0.1 A Accuracy: 2% ±5 digits (10 Hz to 100 Hz), 2.5% ±5 digits (100–500 Hz) Crest Factor: 2.5 @ 600 A (Add 2% for CF > 2) |
AC Current via iFlex Probe | Up to 2500 A Resolution: 0.1 A (≤ 600 A), 1 A (≤ 2500 A) Accuracy: 3% ±5 digits (5–500 Hz) Crest Factor: 2.5 @ 1400 A, 1.42 @ 2500 A (Add 2% for CF > 2) |
DC Current | 600.0 A Resolution: 0.1 A Accuracy: 2% ±5 digits |
AC Voltage | 1000 V Resolution: 0.1 V (≤600 V), 1 V (≤1000 V) Accuracy: 1.5% ±5 digits (20–500 Hz) |
DC Voltage | 1000 V Resolution: 0.1 V (≤600 V), 1 V (≤1000 V) Accuracy: 1% ±5 digits |
mV DC | Range: 500.0 mV Resolution: 0.1 mV Accuracy: 1% ±5 digits |
Resistance | Up to 6000 Ω Resolution: 0.1 Ω (≤600 Ω), 1 Ω (≤6000 Ω) Accuracy: 1% ±5 digits |
Capacitance | Up to 1000 µF Resolution: 0.1 µF (≤100 µF), 1 µF (≤1000 µF) Accuracy: 1% ±4 digits |
Continuity Detection | Yes (≤30 Ω) |
Maximum Voltage to Ground | 1000 V |
Temperature Range | Operating: -10 °C to +50 °C Storage: -40 °C to +60 °C |
Operating Humidity | ≤90% RH (10–30 °C) ≤75% RH (30–40 °C) ≤45% RH (40–50 °C) |
Altitude | Operating: 3000 m Storage: 12,000 m |
Size (L × W × H) | 249 × 85 × 45 mm |
Weight | 395 g |
Jaw Opening | 34 mm |
Flexible Probe Diameter | 7.5 mm |
Flexible Probe Cable Length | 1.8 m |
Battery Type | 2 × AA (NEDA 15A / IEC LR6) |
Safety Ratings | IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V |
IP Rating | IP30 (non-operating) |
EMC / RF Compliance | IEC 61326-1, IEC 61326-2-2, CISPR 11 Class A, FCC 47 CFR 15 (exempt), Korea KCC Class A |
Temperature Coefficient | Add 0.1 × specified accuracy per °C above 28 °C or below 18 °C |
Position Sensitivity (iFlex) | Distance from optimum: A: ±0.5% @ 12.7 mm (i2500-10), 35.6 mm (i2500-18) B: ±1.0% @ 20.3 mm / 50.8 mm C: ±2.0% @ 35.6 mm / 63.5 mm |
Key Features
- Advanced clamp meter with Bluetooth connectivity for Fluke Connect® mobile app
- Measure AC and DC current up to 600 A via jaws
- Measure up to 2500 A AC using iFlex flexible current probe
- AC and DC voltage measurement up to 1000 V
- High-resolution resistance measurements up to 6000 Ω with continuity check
- Capacitance measurement up to 1000 µF
- Supports mV DC input for low-voltage diagnostics
- CAT IV 600 V and CAT III 1000 V safety ratings
- Rugged build with IP30 rating and 1000 V max voltage to ground
- Includes Min/Max and Data Hold functions
- Bright backlit screen for dark or industrial environments
- Powered by 2 AA batteries; lightweight and portable
Fluke 37x FC Series – User Manual (PDF)
Download Full Manual
Fluke 374 FC – Safety Sheet (PDF)
Download Full Manual
Fluke 37x FC Series – Multilingual Verification Sheet (PDF)
Download Full Manual
Fluke 374 FC – Calibration Manual (PDF)
Download Full Manual
Fluke 37x FC Series – Wireless Logging with Fluke Connect® App (PDF)
Download Full Manual
Fluke 37x FC Series – Logging, Saving & Sharing with Fluke Connect® App (PDF)
Download Full Manual
