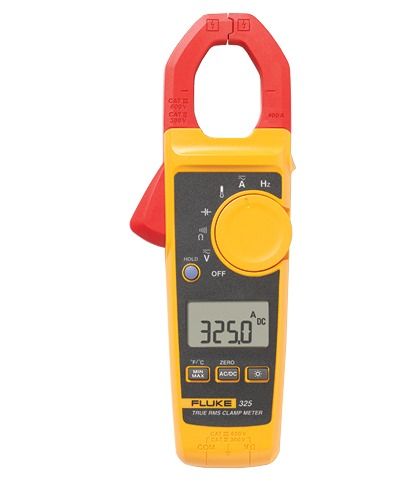

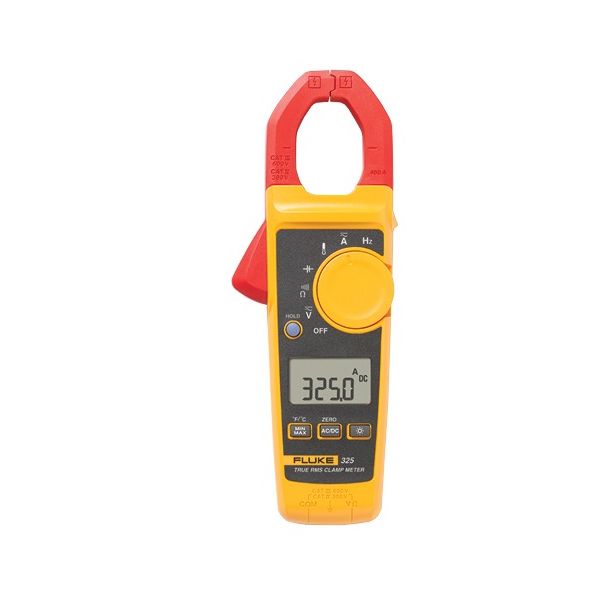

Fluke 325 Clamp Meter 400A AC/DC True RMS with Temperature

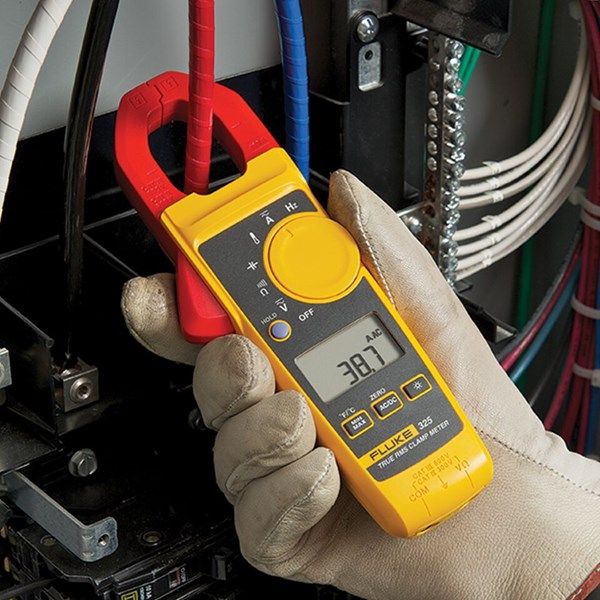

The Fluke 325 True RMS Clamp Meter is the flagship of the 320 Series, built for tough environments and accurate, noise-free results. Compact and rugged with a large backlit display, it measures current up to 400 A in tight spaces, plus temperature, capacitance, AC/DC current and frequency. Ideal for commercial and residential electricians, it verifies load current, voltage, continuity, and more. The Fluke 325 comes with a two-year warranty and soft carrying case.
Technical Specifications
| Feature | Specification |
|---|---|
| AC Current Range | 40.00 A / 400.0 A |
| AC Current Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
| DC Current Range | 40.00 A / 400.0 A |
| DC Current Accuracy | 2% ± 5 digits |
| AC Voltage Range | 600.0 V |
| AC Voltage Accuracy | 1.5% ± 5 digits |
| DC Voltage Range | 600.0 V |
| DC Voltage Accuracy | 1.0% ± 5 digits |
| Resistance Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Resistance Accuracy | 1.0% ± 5 digits |
| Continuity | ≤ 30 Ω |
| Capacitance Range | 0 to 100.0 μF / 100 μF to 1000 μF |
| Frequency Range | 5.0 Hz to 500.0 Hz |
| AC Response | True-RMS |
| Backlight | Yes |
| Data Hold | Yes |
| Temperature Range | -10.0°C to 400.0°C (14.0°F to 752.0°F) |
| Min/Max | Yes |
| Dimensions (H x W x D) | 207 x 75 x 34 mm |
| Maximum Wire Diameter | 30 mm (600 MCM) |
| Weight | 283 g |
| Category Rating | CAT III 600 V, CAT IV 300 V |
| Warranty | Two-year |
Key Features
- True-RMS technology for accurate measurements on non-linear signals
- Measures both AC and DC current up to 400 A
- Voltage measurement capability up to 600 V (AC/DC)
- Resistance measurement up to 40 kΩ with continuity detection
- Frequency measurement up to 500 Hz
- Capacitance measurement up to 1000 µF
- Temperature range from -10.0°C to 400.0°C (14.0°F to 752.0°F)
- Min/Max function to capture variations in signal levels
- Data hold function freezes the reading on display
- Large backlit screen for easy reading in dim environments
- Built rugged and reliable for industrial use
- Complies with CAT III 600 V and CAT IV 300 V safety standards
