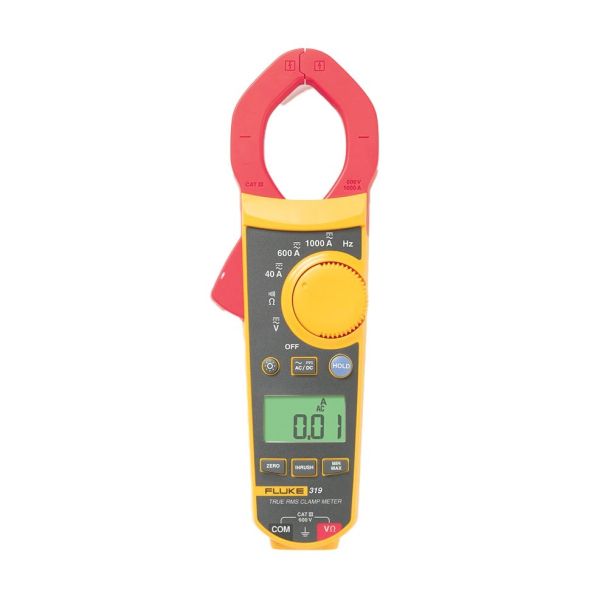

Fluke 319 1000 Amp True RMS AC/DC Clamp Meter

Technical Specifications

Key Features

• 1000A AC/DC current measurement capability
• High-precision 40A range with 0.01A resolution
• True RMS AC voltage and current measurements
• Inrush current measurement for motor and lighting start-up testing
• Frequency measurement from 5 Hz to 500 Hz
• 600V AC/DC voltage measurement
• 4000 Ω resistance measurement
• Continuity beeper
• Large backlit display for dark environments
• Auto power-off and HOLD function
• Slim clamp design ideal for confined cable compartments

Product Description

The Fluke 319 Clamp Meter is a compact, rugged and ergonomically designed True RMS clamp meter built for professional electricians and industrial technicians. With the ability to measure up to 1000A AC/DC, it is ideal for high-current industrial applications.

The unique 40A low-current range provides high precision with 0.01A resolution, making it suitable for detailed diagnostics on low-load circuits. The 319 model also includes inrush current measurement with 100 ms integration time, allowing accurate testing of motor start-up currents and lighting systems.

Additional functionality includes 600V AC/DC voltage measurement, resistance up to 4000 Ω, continuity testing and frequency measurement from 5 Hz to 500 Hz. The large 6000-count backlit display ensures clear readings even in low-light environments.

Designed to withstand demanding field conditions, the Fluke 319 features a durable IP40-rated housing, CAT III 600V safety rating and operates between -10 °C and +50 °C.

Supplied With

• Fluke 319 Clamp Meter
• Test Leads
• Soft Carrying Case
• Three AAA Batteries (Installed)
• User Manual
