Fluke 317 600 Amp True RMS AC/DC Clamp Meter
Out of stock
SKU
TTESDM317
R 6,190.00

Fluke 317 600 Amp True RMS AC/DC Clamp Meter

Out of stock
SKU
TTESDM317
R 6,190.00
Check Store Availability
Fluke 317 600 Amp True RMS AC/DC Clamp Meter
Out of stock
SKU
TTESDM317

Find a Store

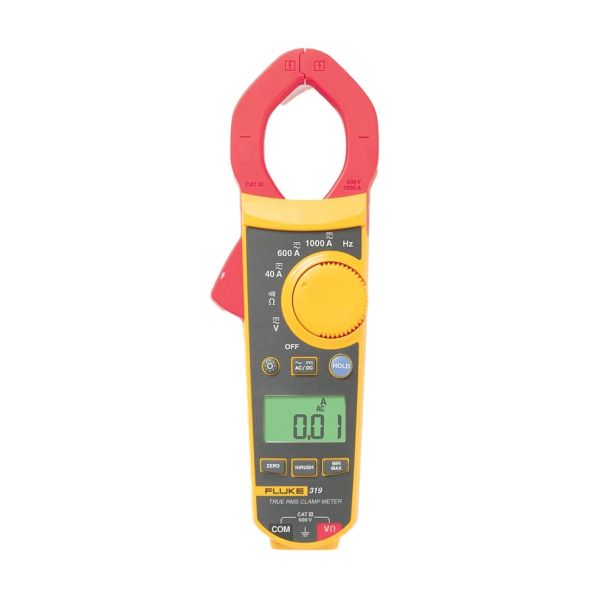

The Fluke 317 and 319 Clamp Meters are compact, rugged and ergonomically designed for easy handling and access in tight spaces. Ideal for current measurements up to 1000 A (319), they offer both AC/DC current readings and enhanced resolution below 40 A. The Fluke 319 also includes in-rush current and frequency functions, making it perfect for testing motors, lighting and more in demanding environments.



Technical Specifications

FeatureSpecification
AC Current Range (317)40.00 A, 600.0 A
AC Current Accuracy (317)±1.6% ±6 digits (40 A, 50-60 Hz)
±2.5% ±8 digits (40 A, 60-500 Hz)
±1.5% ±5 digits (600 A, 50-60 Hz)
±2.5% ±5 digits (600 A, 60-500 Hz)
DC Current Range (317)40.00 A, 600.0 A
DC Current Accuracy (317)±1.6% ±6 digits (40 A)
±1.5% ±5 digits (600 A)
AC/DC Voltage Range600.0 V
AC Voltage Accuracy±1.5% ±5 digits (20-500 Hz)
DC Voltage Accuracy±1% ±4 digits
Resistance Range400.0 Ω, 4000 Ω
Resistance Accuracy±1% ±5 digits
Continuity≤ 30 Ω
Frequency (319 only)5.0 – 500.0 Hz (Accuracy: ±0.5% ±5 digits)
Inrush Current (319 only)Integration Time: 100 ms
Crest Factor (Both Models)Add 2% for CF > 2
Max CF: 3.0 @ 500 A, 2.5 @ 600 A, 1.4 @ 1000 A (319)
Display6000 count resolution
Clamp Opening / Jaw Size1.45 in (37 mm)
Power SourceThree AAA IEC LR03 batteries
Battery IndicatorLow battery signal
Auto RangeAvailable in Ohms
Auto OffYes, extends battery life
Hold FunctionYes, screen data hold
Dimensions162.4 x 58.25 x 30.5 mm (6.39 x 2.29 x 1.20 in)
WeightApprox. 384 g (13.5 oz) including batteries
Safety RatingsCE Certified
IEC 61010-1 & IEC 61010-2-032
CAT III 600V
IP RatingIP40
Operating Temperature–10 °C to 50 °C (14 °F to 122 °F)
Storage Temperature–40 °C to 60 °C (–40 °F to 140 °F)
Operating HumidityUp to 90% RH (non-condensing) @ 30 °C
Altitude (Operating / Storage)2000 m / 12,000 m
VibrationMIL-PRF-28800F Class 2, 5–500 Hz
Drop Test1 m (3 ft) on all six sides
EMCNot specified for fields ≥ 0.1 V/m
Temperature Coefficient0.1 × accuracy per °C outside 18–28 °C

Key Features

  • High-precision current measurement down to 0.01 A
  • True RMS measurement for accurate readings of non-linear loads
  • Compact, ergonomic clamp design ideal for confined spaces
  • Backlit display for improved visibility in low-light environments
  • Model 319 includes inrush current measurement and frequency functions
  • Measures AC/DC current up to 1000 A (319), 600 A (317)
  • AC/DC voltage measurement up to 600 V
  • Resistance measurement up to 4000 Ω and continuity beeper
  • Auto-off and data hold functions to save power and capture results
  • Durable and drop-tested from 1 meter
  • One-year warranty

Included Accessories

  • Test Leads
  • Soft Carrying Case
  • Three AAA Batteries (Installed)
  • User Manual

Compatible Accessories

  • Fluke AC285 SureGrip™ Alligator Clips
  • Fluke TL223 SureGrip™ Electrical Test Lead Set
  • Fluke L206 Deluxe LED Hat Light
Fluke 317/319 – SOMV R0 Instrument Security (PDF)
Download Full Manual

Fluke 317/319 – User Manual / Specification PDF (Alternate) (PDF)
Download Full Manual
