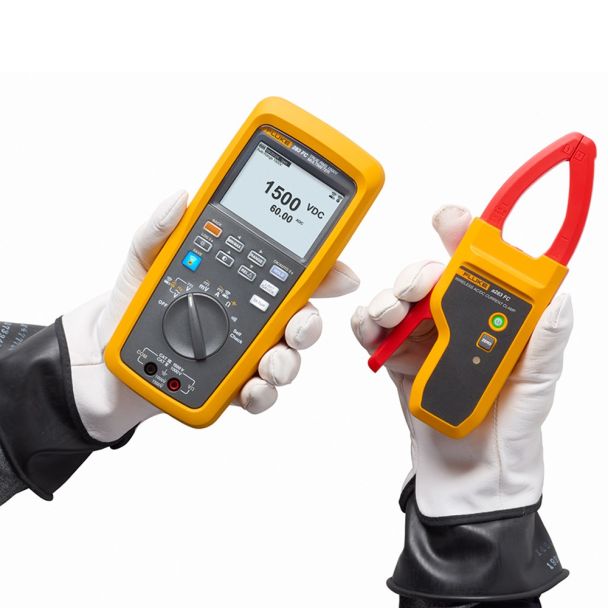

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

In stock

SKU

TTESDM283

Be the first to review this product

R 23,495.00

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

In stock

SKU

TTESDM283

Find a Store

The Fluke 283 FC CAT III 1500 V Digital Multimeter is designed for safe, precise work in high-voltage DC environments like solar PV, wind, or data centres. It delivers accurate, repeatable results with enhanced safety features, including TL175-HV TwistGuard™ test leads rated to CAT III 1500 V/CAT IV 1000 V. A bright backlit display, illuminated keypad, magnetic hanging kit and rugged carry case make it ideal for demanding field conditions.

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

Product Details

Technical Specifications

Function	Range	Resolution	Accuracy
AC Volts (45 Hz – 1 kHz)	6.000 V	0.001 V	1.0 % + 3 (45 Hz – 500 Hz) 2.0 % + 3 (500 Hz – 1 kHz)
	60.00 V	0.01 V
	600.0 V	0.1 V
	1000 V	1 V
DC Volts	6.000 V	0.001 V	0.09 % + 3
	60.00 V	0.01 V
	600.0 V	0.1 V
	1500 V	1 V	0.15 % + 2
AC mV (45 Hz – 1 kHz)	600.0 mV	0.1 mV	1.0 % + 3 (45 Hz – 500 Hz) 2.0 % + 3 (500 Hz – 1000 Hz)
DC mV	600.0 mV	0.1 mV	0.09 % + 2
Continuity	600 Ω	1 Ω	—
Resistance	600.0 Ω	0.1 Ω	0.5 % + 4
	6.000 kΩ	0.001 kΩ
	60.00 kΩ	0.01 kΩ
	600.0 kΩ	0.1 kΩ
	6.000 MΩ	0.001 MΩ
	50.00 MΩ	0.01 MΩ	1.5 % + 4
Capacitance	1000 nF	1 nF	1.2 % + 2
	10.00 μF	0.01 μF
	100.0 μF	0.1 μF
	9999 μF	1 μF	10 % typical
Frequency	99.99 Hz	0.01 Hz	0.1 % + 2
	999.9 Hz	0.1 Hz
	9.999 kHz	0.001 kHz
	99.99 kHz	0.01 kHz
AC VA (45 Hz – 500 Hz)	360.0 VA	0.1 VA	2 % + 1.0 VA
	3.600 kVA	0.001 kVA	2 % + 0.01 kVA
	36.00 kVA	0.01 kVA	2 % + 0.1 kVA
	60.00 kVA	0.01 kVA	2 % + 0.15 kVA
DC VA	360.0 VA	0.1 VA	2 % + 1.0 VA
	3.600 kVA	0.001 kVA	2 % + 0.01 kVA
	36.00 kVA	0.01 kVA	2 % + 0.1 kVA
	90.00 kVA	0.01 kVA	2 % + 0.25 kVA
Min / Max / Avg	DC functions: specified accuracy ± 12 counts for changes longer than 350 ms. AC functions: specified accuracy ± 40 counts for changes longer than 900 ms.
Environmental Specifications
Operating Temperature	-10 °C to 60 °C
Storage Temperature	-30 °C to +70 °C
Humidity (non-condensing)	0–90 % (10 °C to 30 °C) 0–75 % (30 °C to 40 °C) 0–45 % (40 °C to 60 °C)
Warranty & Protection
EMC	IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
Overvoltage Category	CAT III 1500 V, CAT IV 1000 V
Agency Approvals	ETL (AMER & EMEA), CSA (APAC), CE, UK CA
Drop Test	2 m (6.5 ft)
Ingress Protection	IP52
Warranty	Limited Lifetime
Mechanical & General Specifications
Counts	6000
Size	22.5 cm x 10.5 cm x 5.7 cm (8.8 in x 4.1 in x 2.2 in)
Weight	0.7 kg (1.5 lb)
Battery Life	> 150 hours typical (3 x AA alkaline, without backlight) > 100 hours typical when connected to wireless current clamp

Key Features

Measure safely with CAT III 1500 V / CAT IV 1000 V safety-rated multimeter
Includes TL175-HV CAT III 1500 V / CAT IV 1000 V premium test leads
User-defined limit gauge for quick go/no-go decisions
Unique multimeter readiness self-check
Visual and audio polarity indicators with on/off function to prevent wiring issues

Additional Features

Highly accurate voltage measurements for precise frontline troubleshooting
Current measurements up to 60 A AC/DC when used with optional a283 FC wireless current clamp
Visual and audio polarity indicators help prevent accidental wiring issues
User-defined limit gauge enables quick troubleshooting decisions
Multimeter readiness self-check ensures the meter is ready before testing
Save and log measurements to internal memory and view on mobile device via Fluke Connect™

How to Use a Multimeter

Learn how to safely and correctly measure voltage, resistance, and continuity with a multimeter. This guide explains practical testing methods and troubleshooting tips.

Click here to read: How to Use a Multimeter

Frequently Asked Questions

Can this multimeter measure up to 1500 V DC safely?

Yes. This multimeter is rated CAT III 1500 V and CAT IV 1000 V, making it suitable for high-voltage industrial and solar PV applications when used correctly with the supplied safety-rated test leads.

Can it measure current?

Yes. It can measure up to 60 A AC/DC when used with the optional a283 FC wireless current clamp.

Is it suitable for solar PV installations?

Yes. With 1500 V DC capability and CAT III / CAT IV safety ratings, it is ideal for testing solar strings, inverters, and high-voltage DC systems.

Does it store measurements?

Yes. Measurements can be saved to internal memory and viewed on a mobile device via Fluke Connect™.

How do I learn to use a multimeter correctly?

You can read our step-by-step guide here: How to Use a Multimeter.

Manuals & Videos

Fluke – Using a Clamp Meter in a PV System (PDF)

Download Full Manual

Fluke – Choosing the Right Clamp Meter for PV Systems (PDF)

Download Full Manual

Fluke – Safety Tips for PV System Measurements (PDF)

Download Full Manual

Fluke – Electrical Testing Tools for PV Installers (PDF)

Download Full Manual

Fluke – Tools Every PV Electrician Needs (PDF)

Download Full Manual

Reviews

Write Your Own Review

You're reviewing:Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

Your Rating

Rating

1 star 2 stars 3 stars 4 stars 5 stars

Nickname

Summary

Review

Dimensions

More Information
Manuals & Videos	Fluke – Using a Clamp Meter in a PV System (PDF) Download Full Manual Fluke – Choosing the Right Clamp Meter for PV Systems (PDF) Download Full Manual Fluke – Safety Tips for PV System Measurements (PDF) Download Full Manual Fluke – Electrical Testing Tools for PV Installers (PDF) Download Full Manual Fluke – Tools Every PV Electrician Needs (PDF) Download Full Manual
Package Weight (kg)	0.700000
Package Length (cm)	22.5
Package Width (cm)	10.5
Package Height (cm)	5.7
Manufacturer	FLUKE
Consignment	Yes
