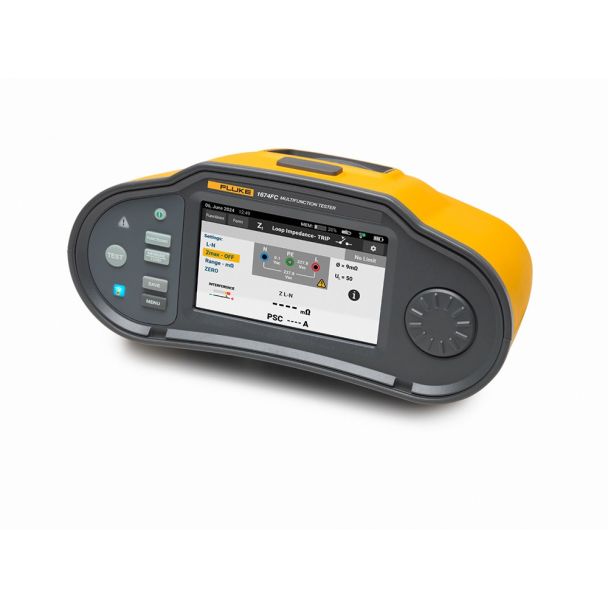

Fluke 1674 SCHFTT Multifunction Installation Tester + TruTest Software
The Fluke 1670 Series Multifunction Installation Testers are designed to simplify and speed up electrical testing. With an ergonomic build, intuitive interface, data management, wireless connectivity (1673 FC and 1674 FC) and reporting software, they set a new standard for installation testing. Built for reliability, the rugged design ensures safe testing in domestic, commercial and industrial environments, meeting IEC/HD 60364-6 and local standards. The 1670 Series helps you complete tests faster, reduce documentation time and maintain full confidence in your results.
Technical Specifications
| Feature | Specification / Description |
|---|---|
| Model / Series | Fluke 1670 Series Multifunction Installation Tester (e.g. 1673 FC / 1674 FC) |
| Weight | Less than 1.6 kg (including battery and accessories) |
| Battery | Rechargeable Li‑Ion, 2,500 mAh |
| Charging Interface | USB‑C fast charging |
| Display / UI | Full‑colour touchscreen + tactile rotary knob |
| Auto Test Function | Yes (enables full sequence at one touch) |
| Insulation PreTest | Included (models with “FC”) |
| RCD Test Types | AC, A, B, F, GFCI, parallel measurement of trip current / trip time |
| Simultaneous Voltage Reads | L‑N, L‑PE, N‑PE with single connection from mains cord |
| Loop / Impedance / Z Max | Loop impedance (PEFC / PSC), Z Max memory, parallel measurement |
| Surge Protection Device (SPD) Test | Yes |
| Voltage Drop Measurement | Yes |
| Continuity Test Current | Low current mode ≈ 10 mA |
| Accessories Included | See “What’s Included” section below |
| Software | Fluke TruTest Desktop + Fluke Connect mobile app compatibility |
| Field Upgradable | Yes (firmware/regulation updates) |
What’s Included
- Multifunction installation tester (Fluke 1670 Series)
- Heavy‑duty mains cord with single input connector
- Hard carrying / protection case
- USB‑C power adapter for charging
- Remote control probe
- Hanging strap
- Zero adapter
- Test leads and probes
- Alligator clips
- Li‑Ion battery (installed)
- Fluke TruTest software (desktop + mobile connectivity via Fluke Connect)
Key Features & Benefits
- Simplified, hierarchical project setup (clients → sites → boards → circuits) via colour touchscreen, smart device, or PC
- Auto Test function that lets you run complete test sequences with one press — speeds up testing by up to 30%
- Automatic validation against user‑defined limits and live pass/fail indication
- Insulation PreTest (for FC models) stops test if appliances are still connected, protecting equipment
- Simultaneous voltage readings (L‑N, L‑PE, N‑PE) without re‑wiring
- Parallel measurement of loop impedance and PEFC / PSC, with Z Max memory
- RCD testing of multiple types (AC, A, B, F, GFCI) including trip current & trip time
- Voltage drop measurement, SPD functional test, continuity with low current mode
- Field‑updateable firmware and regulatory changes
- Compact and lightweight design (under 1.6 kg), with padded neck strap for hands‑free use
- Fast USB‑C charging, ensuring the tester can be used all day in the field
- Seamless data transfer via Fluke Connect app or TruTest software — generate compliant test certificate reports on site
- Compatible with regional standards: BS 7671, DIN VDE 0100‑600, ÖVE/ÖNORM E 8101, NIN/NIV, NEN 3140, etc.
Fluke 167x Series – User Manual (PDF)
Download Full Manual
Fluke 167x Series – Quick Reference Guide (PDF)
Download Full Manual
Fluke 167x Series – Safety Sheet (PDF)
Download Full Manual
Fluke 167x Series – Programming Sheet (PDF)
Download Full Manual
Fluke 1670 Series – Datasheet (PDF)
Download Full Manual
