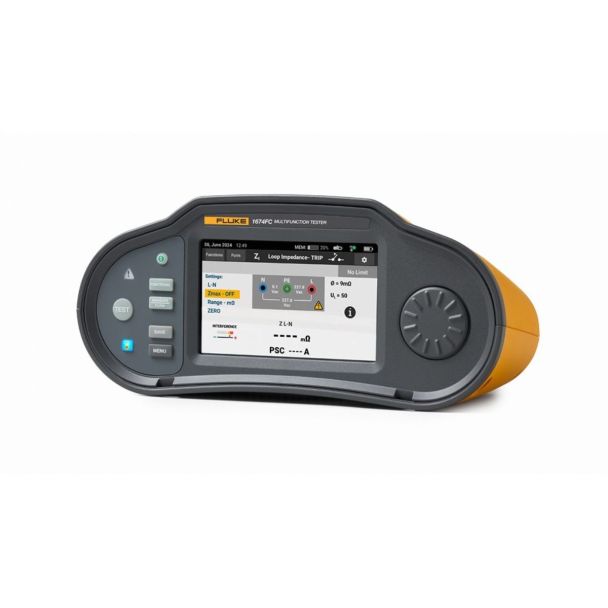

Fluke 1672 SCHFTT Multifunction Installation Tester + TruTest Software

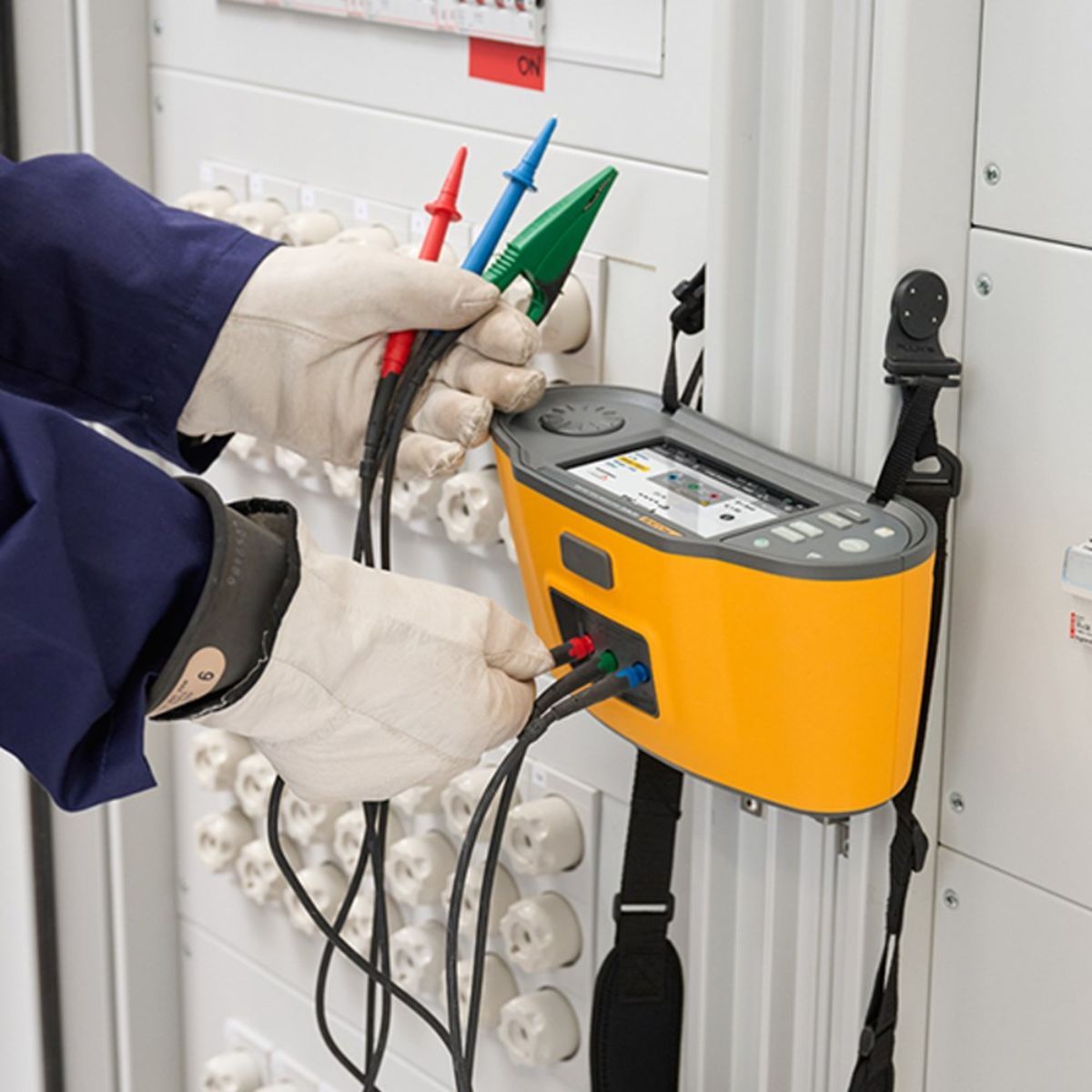

The Fluke 1670 Series Multifunction Installation Testers are designed to simplify and speed up electrical testing. With an ergonomic build, intuitive interface, data management, wireless connectivity (1673 FC and 1674 FC) and reporting software, they set a new standard for installation testing. Built for reliability, the rugged design ensures safe testing in domestic, commercial and industrial environments, meeting IEC/HD 60364-6 and local standards. The 1670 Series helps you complete tests faster, reduce documentation time and maintain full confidence in your results.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Fluke |
| Model Number | 1672 |
| Loop Impedance Test Type | Non-Trip Earth Impedance |
| Non-Tripping | Yes |
| Automatic RCD Test | Yes |
| RCD Ramp Test | Yes |
| Insulation Test Voltage | 100 V, 250 V, 500 V, 1000 V |
| Interface Type | USB-C |
| Test Standards | DIN VDE 0100-600, IEC 60364-6 |
| Plug Type | Type F – Schuko Plug |
| Battery Type | Rechargeable 2,500 mAh Li-ion |
| High Current Loop Mode | Yes |
| SPD Test | Yes |
| Voltage Drop Measurement | Yes |
| Continuity Test Current | 10 mA (Low Test Current) |
| Weight | Less than 1.6 kg |
Key Features
- Non-trip earth loop impedance testing
- Automatic RCD and RCD ramp testing (AC, A, B, F and GFCI)
- Insulation resistance testing up to 1000V
- Full-colour touch screen with tactile rotary knob
- USB-C charging with fast charge support
- Rechargeable 2,500 mAh Li-ion battery
- Additional high current loop mode for faster measurements
- Voltage drop measurement function
- Surge Protection Device (SPD) functional test
- Insulation Monitoring Device (IMD) tests
Additional Capabilities
- Field updatable for regulation changes and feature enhancements
- Z Max memory for loop tests to evaluate highest loop value
- Unique zero adapter for accurate test lead and mains cord compensation
- Simultaneous voltage readings (L-N, L-PE, N-PE)
- PEFC/PSC and loop impedance measurement in parallel with dual display
- Ring testing without exchanging test leads
- Continuity testing for motor windings (10 mA)
- Earth Volt Touchpad detecting raised earth voltages > 50 V
Scope of Delivery
- Fluke 1672 Multifunction Installation Tester
- Heavy-duty mains cord with single input connector
- Professional hard case
- USB-C power adapter
- Remote control probe
- Hanging strap
- Zero adapter
- Test leads and probes
- Alligator clips
- Li-ion battery
Frequently Asked Questions
What is a multifunction installation tester used for?
A multifunction installation tester verifies the safety and compliance of electrical installations. It performs insulation resistance, loop impedance, RCD, continuity and voltage measurements to ensure installations meet required standards.
What is non-trip loop testing?
Non-trip loop testing measures earth loop impedance without tripping RCDs. This allows electricians to test circuits efficiently without unnecessary power interruptions.
Can the Fluke 1672 test RCD types AC, A and B?
Yes, it supports RCD trip current and trip time measurement for RCD types AC, A, B, F and GFCI.
Does this tester support insulation resistance testing?
Yes. The Fluke 1672 performs insulation resistance testing at 100 V, 250 V, 500 V and 1000 V.
Is the Fluke 1672 suitable for industrial environments?
Yes. Its rugged construction, compliance with IEC 60364-6 standards and comprehensive testing functions make it ideal for domestic, commercial and industrial applications.
