Fluke 1587 Insulation Multimeter (1kV)

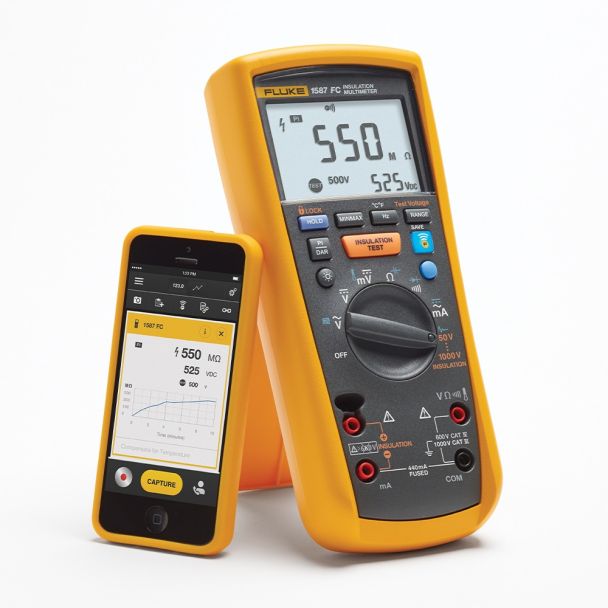

The Fluke 1587 FC Insulation Multimeter combines insulation testing with a full-featured digital multimeter. With Fluke Connect wireless capability, you can identify problems, make repairs, and share results quickly and safely from a distance.
Key Features & Connectivity
- Fluke Connect® enabled — monitor measurements remotely via smartphone
- Safety first: stand clear while measurements are acquired remotely
- Wirelessly save, share, and compare measurements; reduce errors in field data entry
- PI / DAR timed-ratio tests with TrendIt™ graphs to detect moisture or insulation degradation faster
- Memory storage in Fluke Connect – no more manual note‑taking
- Temperature compensation to maintain measurement baseline continuity over time
- Historical tracking & asset trending via Fluke Connect® Assets (sold separately)
- VFD low-pass filter for accurate measurements on variable-frequency motors
- Auto-discharge of capacitive voltage for user protection
- Live circuit detection — inhibits insulation test if >30 V present
- Complete measurement capabilities — voltage (AC/DC), mV DC, current (AC/DC/mA), resistance, continuity, capacitance, diode, temperature, frequency
- Min/Max, smoothing, auto power-off, and remote probe included
- Includes remote probe, test leads, alligator clips, K‑type thermocouple, hard case, and a 3‑year warranty
Electrical Specifications
| Measurement | Range / Resolution / Accuracy / Notes |
|---|---|
| AC Voltage |
• 600.0 mV, res 0.1 mV — ±(1% + 3) @ 50–60 Hz • 6.000 V, res 0.001 V — ±(1% + 3) • 60.00 V, res 0.01 V — ±(1% + 3) • 600.0 V, res 0.1 V — ±(1% + 3) @ 50–60 Hz; ±(2% +3) @ 60 Hz–5 kHz¹ • 1000 V, res 1 V — ±(2% + 3) ¹ using 1 kHz bandwidth |
| Low‑Pass Filter Voltage (for VFD / motor drive) |
Same ranges as AC Voltage above. Accuracy: ±(1% + 3) @ 50–60 Hz; For 60–400 Hz: +(2% + 3) / –(6% – 3) variations. |
| DC Voltage |
• 6.000 V, res 0.001 V — ±(0.09% + 2) • 60.00 V, res 0.01 V — ±(0.09% + 2) • 600.0 V, res 0.1 V — ±(0.09% + 2) • 1000 V, res 1 V — ±(0.09% + 2) Input impedance: 10 MΩ nominal, <100 pF. |
| DC Millivolt | 600.0 mV, res 0.1 mV — ±(0.1% + 1) |
| AC / DC Current |
• AC (45 Hz to 1000 Hz):
- 400 mA, res 0.1 mA — ±(1.5% + 2)¹
- 60 mA, res 0.01 mA — ±(1.5% + 2)¹
(1) True‑RMS, crest factor handling to 3 × range with added uncertainty. • DC: - 400 mA, res 0.1 mA — ±(0.2% + 2) - 60 mA, res 0.01 mA — ±(0.2% + 2) Overload: 600 mA for up to 2 minutes. Fuse protection: 0.44 A, 1000 V, 10 kA. |
| Resistance (Ohms) |
• 600.0 Ω, res 0.1 Ω — ±(0.9% + 2) • 6.000 kΩ, res 0.001 kΩ — ±(0.9% + 2) • 60.00 kΩ, res 0.01 kΩ — ±(0.9% + 2) • 600.0 kΩ, res 0.1 kΩ — ±(0.9% + 2) • 6.000 MΩ, res 0.001 MΩ — ±(0.9% + 2) • 50.0 MΩ, res 0.01 MΩ — ±(1.5% + 3) Overload protection: 1000 V rms or DC. Open circuit test voltage: <8.0 V DC. Short circuit current: <1.1 mA. |
| Diode Test | Display voltage drop (~0.6 V) at 1.0 mA test current. Accuracy: ±(2% + 3) |
| Continuity | Audible tone when resistance <25 Ω, off above 100 Ω. Max reading: 1000 Ω. Open-circuit voltage: <8.0 V. Short-circuit current: ~1.0 mA. Response time: >1 ms. Overload protection: 1000 V rms. |
| Frequency |
• 99.99 Hz, res 0.01 Hz — ±(0.1% + 1) • 999.9 Hz, res 0.1 Hz — ±(0.1% + 1) • 9.999 kHz, res 0.001 kHz — ±(0.1% + 1) • 99.99 kHz, res 0.01 kHz — ±(0.1% + 1) Sensitivity: depends on input AC voltage level and range. |
| Capacitance |
• 1000 nF, res 1 nF — ±(1.2% + 2) • 10.00 µF, res 0.01 µF — ±(1.2% + 2) • 100.0 µF, res 0.1 µF — ±(1.2% ± 90 counts) • Up to 9999 µF, res 1 µF — ±(1.2% ± 90 counts) |
| Temperature (K‑type thermocouple) | Range: –40 °C to 537 °C (–40 °F to 998 °F), res 0.1 °C / °F. Accuracy: ±(1% + 10 counts) after 90 min settling. |
| Insulation Resistance & Test Voltages | Range: 0.01 MΩ to 2 GΩ. Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V. Accuracy: ±(3% +5) at 50/100 V; ±(1.5% +5) at 250/500 V; For 1000 V: ±(1.5% +5) up to 2000 MΩ, ±(10% +3) beyond. Short circuit test current: nominal 1 mA. Auto discharge: <0.5 s for ≤1 µF. Live circuit detection: inhibits test if >30 V. Maximum capacitive load: Operable up to 1 µF. |
| General / Environmental / Safety |
Maximum terminal voltage: 1000 V.
Storage temp: –40 °C to 60 °C. Operating temp: –20 °C to 55 °C. Temperature coefficient: 0.05 × spec per °C outside 18–28 °C. Relative humidity (non‑condensing): 0–95% @10–30 °C, 0–75% @30–40 °C, 0–40% @40–55 °C. Vibration: 2 g, 5–500 Hz (MIL‑PRF‑28800F, Class 2). Shock: 1 m drop test, all faces (IEC 61010‑1). EMC: 2.4 GHz RF, with FCC / IC / IEC compliances. Safety: CAT IV 600 V / CAT III 1000 V (IEC 61010‑2‑033) IP rating: IP40 (non-operating). Batteries: 4 × AA (alkaline). Battery life: meter use ~1000 h; Insulation tests: ≥1000 tests at 1000 V, 1 MΩ (5 s on / 25 s off). Dimensions: 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in). Weight: 550 g (1.2 lb). Altitude: Operating up to 2000 m. Over-range capability: 110% (except for capacitance which is 100%). Fuse protection (mA input): 0.44 A, 1000 V, IR 10 kA. |
