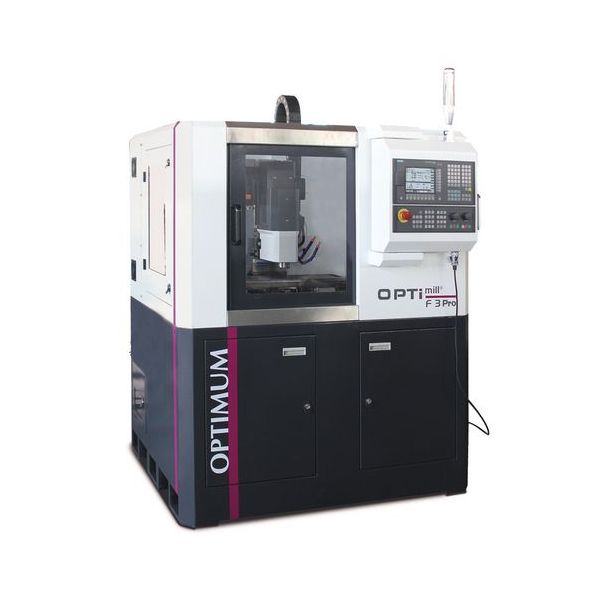

OPTIMUM CNC Milling Machine F3
OPTIMUM CNC Milling Machine F3 is designed for accurate machining and smooth CNC performance. Ideal for workshops and production environments, it offers solid construction, precise control and reliable operation for milling with consistent results.
Contact us for availability.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | F3 Pro |
| Article Number | 3500346 |
| Electrical Connection | 400 V / 3 Ph ~ 50 Hz |
| Total Connected Load | 5 kVA |
| Main Spindle Drive | 1.5 kW |
| Spindle Speed | 100 – 6,000 rpm |
| Spindle Seat | ISO 30 / BT 30 x 45° |
| Cooling Lubricant System | Yes |
| Coolant Pump Output | 95 W |
| Coolant Capacity | 50 litres |
| Main Capacity | 10 litres |
| Cutting Tool Size Max. | ⌀ 25 mm |
| End Mill Size Max. | ⌀ 16 mm |
| Milling Precision | ± 0.02 mm |
| Positioning Accuracy | ± 0.01 mm |
| Max Tool Diameter (w/o additional positions) | 100 mm / 80 mm |
| Max Tool Weight | 6 kg |
| X Axis Travel | 360 mm |
| Y Axis Travel | 200 mm |
| Z Axis Travel | 340 mm |
| Feed Speed | 10 m/min |
| Rapid Traverse | 9 m/min |
| Spindle Torque | 3.5 Nm |
| Spindle Nose to Table | 3.5 mm |
| Spindle Nose to Center of Column | 175 mm |
| Clearance Spindle to Table | 270 mm |
| Table Size (L × W) | 460 × 200 mm |
| Max Load on Table | 120 kg |
| Overall Dimensions (L × W × H) | 1410 × 1372 × 2001 mm |
| Weight | 720 kg |
OPTIMUM F3 PRO – User Manual (PDF)
Download Full Manual
Write Your Own Review
| Manuals & Videos | OPTIMUM F3 PRO – User Manual (PDF)
Download Full Manual
|
|---|---|
| Package Weight (kg) | 720.000000 |
| Package Length (cm) | 141 |
| Package Width (cm) | 152 |
| Package Height (cm) | 223 |
| Manufacturer | OPTIMUM |
| Consignment | No |
