MAC AFRIC HDPE Butt Fusion Pipe Welding Machines: Operation Manual Guide

Model Overview

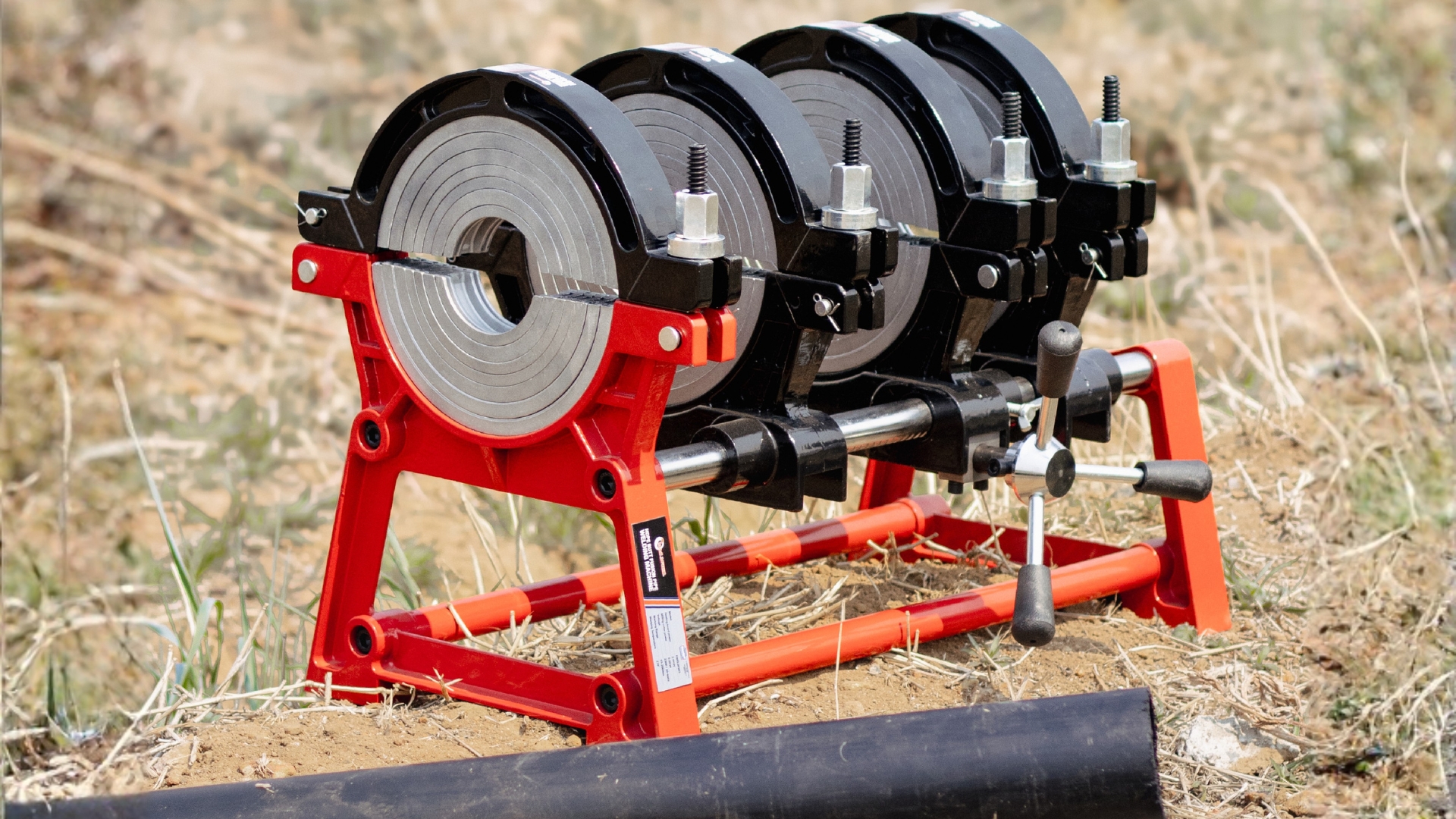

The MAC AFRIC HDPE Butt Fusion Pipe Welding Machine range includes three models covered in this manual. The EWELDP003 is a manual machine designed for pipe diameters from 63–200mm. The EWELDP004 is also a manual machine, handling larger pipe diameters from 90–250mm. The EWELDP005 is a hydraulic-assisted model covering the same 90–250mm range, with the addition of a dedicated hydraulic power unit for more consistent and controlled clamping pressure. All three machines operate on single-phase 230V power and feature a temperature-controlled heating plate, a gear-driven milling cutter, and a sturdy frame with adjustable pipe clamps.

Technical Specifications

EWELDP003 – HDPE Butt Fusion Pipe Welding Machine (63–200mm)

EWELDP004 – HDPE Butt Fusion Pipe Welding Machine (90–250mm)

EWELDP005 – HDPE Butt Fusion Hydraulic Pipe Welding Machine (90–250mm)

Power Reference Table (EWELDP003 / EWELDP004)

Model Range Reference Table (EWELDP005 Hydraulic)

Important Safety Information

Thank you for purchasing this quality product. Our goal is to help you achieve the best results from your new equipment while ensuring safe operation.

This manual contains essential information regarding the operation, safety warnings, precautions, maintenance, cleaning procedures, parts list, and assembly diagram. Please read it carefully before use.

Your safety and the safety of others are very important. This manual contains important safety messages — please read and follow them carefully.

Safety messages warn you about potential hazards that could cause injury to you or others. Each message is preceded by a safety alert symbol (!) and one of the following words: DANGER, WARNING, or CAUTION.

Safety & Precautions

1. Electrical Safety

• Connect the machine to a single-phase power supply within the range of 180V to 242V.
• Ensure the machine is properly earthed before use.
• Inspect all cables, plugs, and sockets before each use. Do not operate with damaged wiring.
• Keep the electrical control cabinet closed during operation.
• Avoid operating in wet or damp conditions to prevent electric shock.

2. Thermal Hazards

• The heating plate reaches temperatures of up to 230°C — do not touch the plate directly.
• Always handle the heating plate with heat-resistant gloves.
• After use, allow the heating plate to cool completely before storing.

3. Mechanical Hazards

• Ensure all pipes are securely clamped before milling or welding.
• Never put your hands near the milling cutter while it's running.
• Confirm that cutter blades are properly tightened before each use.

4. Pressure & Hydraulic Safety (EWELDP005)

• Do not exceed recommended pressure levels for each pipe size — refer to the welding parameter table.
• When operating the hydraulic valve, move it smoothly to avoid sudden pressure spikes.
• Regularly inspect the hydraulic system for leaks — leaking oil is both a slip hazard and a sign of mechanical issues.

5. Operator Safety

• Only trained personnel should operate this machine.
• Work in a clean, unobstructed area, and ensure the machine sits on a level surface.
• Wear safety gloves and eye protection, especially during facing and welding.
• Avoid loose clothing and remove jewellery that could get caught in the machine.
• Keep hands, tools, and loose clothing clear of moving parts.

6. Fire & Environmental Safety

• Do not use the machine near flammable materials or in areas with explosive gases.
• Keep a fire extinguisher accessible when operating the machine.

7. General Precautions

1. Clean the heating plate before and after each use to prevent contamination.
2. Regularly grease the clamping screws and other moving parts to avoid wear and tear.
3. Follow the correct welding sequence — skipping steps can result in weak joints and equipment damage.
4. If the machine malfunctions or something seems off (strange noises, excessive heat, loss of pressure), stop work immediately, switch off the power, and contact our technical service team.

Safety Warnings

1. Regularly check your heating plate's surface for damage or contamination.
2. Always make sure pipe ends are clean and aligned properly before welding — this is critical for a strong weld.
3. If you're new to butt welding, practice on scrap pipe to get a feel for the machine.
4. Don't forget regular lubrication and general maintenance — a well-maintained machine makes your life easier and ensures reliable welds.
5. This machine is designed to heat and fuse HDPE pipe ends under manual pressure, creating a solid joint.
6. The machine must run on single-phase power within 180V–242V. Always ensure the machine is properly earthed.
7. The heating plate gets extremely hot. Avoid direct contact to prevent burns.
8. Grease the eight clamping screws regularly to ensure smooth operation.
9. If you encounter any issues you can't easily resolve, contact our service team using the number on the heating plate — we'll assist as quickly as possible.

For full terms and conditions of our guarantee please visit our website: www.adendorff.co.za

Operating Instructions – EWELDP003 & EWELDP004

Preparation

1. Clean the heating plate before each use using a cotton cloth. Removing dust and dirt helps extend the heating plate's lifespan.
2. Place the heating plate and milling cutter on the accessories frame. Power on the machine.
3. Fit the pipes into the clamps on the frame. Tighten the clamps securely, but do not overtighten or deform the pipes.

Milling (Facing the Pipes)

Use the milling machine to face both pipe ends square and clean before welding. Refer to the table below for welding parameters:

Recommended Welding Conditions – EWELDP003 & EWELDP004

Welding Procedures – EWELDP005 Hydraulic

1. Open the hydraulic oil tank vent screw.
2. Connect the power supply. If using three-phase power, test the milling machine to confirm proper rotation before starting the hydraulic system. Incorrect rotation can damage the gear pump.
3. Set the temperature controller to the required welding temperature (factory default: 220°C).
4. Install the correct size clamps for the pipe.
5. Engage the hydraulic hoses and gradually adjust the pressure regulating valve until the system pressure reaches 3–5 MPa.
6. Use the milling machine to prepare the pipe ends. Adjust milling pressure to the minimum setting to avoid excessive force — pressure depends on pipe size, thickness, and material.
7. Once milling is complete, position the heating plate between the pipe ends. Apply pressure to press the pipe ends against the heating plate until a bead of 1.5 to 2 mm forms.
8. Hold this position for approximately 5 minutes to allow proper heat absorption.
9. After heating, quickly remove the heating plate and press the pipe ends together to form the weld. Maintain pressure until a uniform bead of around 2 mm forms.
10. Hold the joint under pressure for about 15 minutes to allow cooling.
11. After cooling, release the clamps and remove the welded pipe. Clean the heating plate with a soft cotton cloth.

Recommended Welding Parameters – EWELDP005 Hydraulic

Temperature Controller & Timer Settings – EWELDP005 Hydraulic

1. Set the temperature controller to the desired welding temperature (default: 220°C).
2. To set the timer: press the SET button to reset the display, then use the "+" or "−" buttons to set the desired time (factory default: 5–10 minutes).

Troubleshooting Guide

Heating Plate Not Heating

• Check plug alignment and condition.
• Confirm the power supply and voltage match the machine.
• For three-phase power, check wiring to the neutral line.

No Pressure on Gauge (EWELDP005)

• Check for correct motor rotation.
• Ensure sufficient hydraulic oil.
• Confirm ambient temperature is within working range.
• Inspect hoses and valves for blockages. Operate manual valves to clear trapped air.

Circuit Breaker Tripping

• Contact a qualified electrician or the supplier.

Product Structure

EWELDP003 & EWELDP004 – Manual Models

The welding machine set consists of the following main parts:

1. Frame

The frame holds and clamps the pipes securely during the welding process. It accommodates different pipe sizes according to your machine's specifications.

2. Milling Cutter

Power Source: Electric drill motor. Drive System: Gear reducer with bearings, sprockets, and chain drive. Body: Two aluminium cutter discs fitted with blades to trim pipe ends.

3. Heating Element

Heating Element: Embedded electric heating tube cast into an aluminium alloy plate. Temperature Sensor: Built-in heat-sensitive resistor for accurate temperature control. Wiring: 5-core rubber connection cable with terminal board and aviation socket for reliable connection.

4. Accessories Frame

Storage frame for holding the heating plate and milling cutter. Control panel housing switches, plugs, thermostat, timer relay, and voltage meter.

EWELDP005 – Hydraulic Model

The MAC AFRIC Hydraulic Welding Machine is made up of several key components:

1. Machine Frame

Includes the main body, with four setting positions, adjustable clamps, hydraulic cylinders, and hydraulic connection components.

2. Milling Machine

Consists of a motor, housing, cutting head, and blades.

3. Hydraulic Power Unit

Contains the motor, oil tank, gear pump, pressure regulating valve, pressure relief valve, reversing valve, limit switch, and electrical control box.

4. Control Box

Equipped with a temperature controller, programmable timer (adjustable for different pipe sizes), aviation plug, and leakage protection circuit breaker.

5. Heating Plate

Features a non-stick surface with intelligent temperature control and constant temperature maintenance. Temperature can be adjusted based on welding conditions.

6. Toolbox

Designed to store the milling machine, heating plate, adjustable clamps, and other tools for convenience.

Guarantee / Warranty – (Carry In)

This product is covered by a warranty against manufacturing defects for a period of 12 months from the date of purchase. Please ensure you retain your receipt, as proof of purchase will be required when making a warranty claim.

Warranty Exclusions

The warranty will be void if the product:

• Has been abused, misused, or tampered with.
• Has not been used for the intended purpose.
• Was not installed correctly.
• Was used with an incorrect power supply or voltage.
• Was used with an undersized or unsuitable compressor (where applicable).

If you are unsure of the correct product selection, please consult with one of our trained sales staff for guidance.

Warranty Limitations

The following are not covered by this warranty:

• Normal wear and tear.
• Consumable parts.
• Misuse, abuse, or modifications.
• Accidental damage.
• Lack of maintenance.
• Improper wiring.
• Incorrect power supply.
• Damage caused by lightning or power surges.
• Failures caused by contaminated fuels, oils, or coolants (where applicable).
• Products operated in a manner contrary to the provided instruction manual.
• Products operated on incorrect power sources, including batteries.

What the Warranty Does Not Cover

Under this warranty, we are not responsible for:

• Transportation fees for sending the product to/from the warranty centre.
• Any incidental, consequential, or indirect damages resulting from defects in materials or workmanship.
• Any delays in repair or replacement of defective parts.

As a reminder, transportation costs to/from the warranty centre remain the customer's responsibility.

Satisfaction Guarantee and Returns

If you are not fully satisfied with the product, you may return the unused product for a full refund under the following conditions:

• The product must be in its original packaging.
• The product must be returned within 10 days from the date of purchase.
• The original invoice must accompany the return.

Additional Terms

Adendorff Machinery Mart reserves the right to charge a packaging fee for any product returned without its original packaging. Refunds, returns, exchanges, and cancellations will be handled in accordance with the Consumer Protection Act (CPA) regulations. If the product was purchased for a specific purpose based on advice from a salesperson and is found unsuitable for that purpose, a handling fee may apply, depending on the product's condition, in line with our internal policy. All repairs performed under this warranty carry a 3-month repair warranty.

For full terms and conditions of our guarantee please visit our website: www.adendorff.co.za
