This kit provides precise digital resolution for automatic AC/DC voltage measurement, OpenJaw™ current testing, and resistance readings up to 1000 Ω. A built-in continuity beeper enables quick go/no-go checks, while protection meets EN61010-1 CAT III 1000 V and CAT IV 600 V standards. The 1AC II Voltage Tester includes Voltbeat™ technology with continuous self-test for reliable performance, plus a VoltAlert™ tip that lights up and beeps when voltage is detected, offering extra safety with its CAT IV 1000 V rating.

Feature	Specification
Brand	Fluke
Model Number	T5
Product Type	Electrical Tester
Test Type	AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Continuity
Maximum Voltage Measurement	1000V AC
Voltage Measurement Range	0 to 1000V
Automatic RCD Test	Yes
RCD Ramp Test	No
Minimum Continuity Resistance	0 Ω
Maximum Continuity Resistance	1000 Ω
Continuity Range	25 Ω to 400 Ω
Safety Category Level	CAT III, CAT IV
Safety Category Voltage	CAT IV 600V / CAT III 1000V
Operating Temperature Range	-10°C to +50°C
Power Source	Battery
Battery Type	AA x 2
Dimensions (L x W x H)	30.5 x 51 x 203 mm
Jaw Opening	12.9 mm
Weight	300 g
Approvals	UL, CSA, VDE
Standards	EN61010-1 CAT III 600V

Manuals & Videos	Fluke Technical Manual 1 (PDF) Download Full Manual Fluke Technical Manual 2 (PDF) Download Full Manual Fluke Technical Manual 3 (PDF) Download Full Manual Fluke Technical Manual 4 (PDF) Download Full Manual
Specifications Description	The T5-1000 Electrical Tester simplifies voltage, continuity, and current testing in one compact tool. Its OpenJaw™ current measurement enables rapid current checks up to 100 A without circuit interruption. Detachable SlimReach™ test probes, designed to national electrical standards, ensure precision. With a rugged construction capable of withstanding a 10 ft. (3 m) drop and Auto-off mode for battery life conservation, this tester is durable and efficient. The 1AC II Voltage Tester, with its pocket-sized design, allows easy voltage detection in various settings. Features: Automatic measurement of volts AC and volts DC with precise digital resolution OpenJaw™ current measurement for easy and accurate current checks Resistance display up to 1000 Ω and continuity beeper for quick go/no-go tests EN61010-1 CAT III 1000 V CAT IV 600 V protection for all inputs Voltbeat™ technology and continuous self-test in the 1AC II Voltage Tester for reliable operation VoltAlert™ tip glows and emits a beeper sound upon voltage detection Compact design with probe storage and detachable SlimReach™ probe tips Rugged construction capable of withstanding a 10 ft. (3 m) drop Auto-off mode to conserve battery life Compatible with optional holster for belt attachment and neat test lead storage Specifications: T5-1000 Electrical Tester: Voltage Range: AC/DC Current Range: Up to 100 A Resistance Display: Up to 1000 Ω CAT Rating: III 1000 V, IV 600 V 1AC II Voltage Tester: Voltage Range: AC CAT Rating: IV 1000 V
Package Weight (kg)	0.250000
Package Length (cm)	33.27
Package Width (cm)	14.48
Package Height (cm)	6.35
Manufacturer	FLUKE
Consignment	No

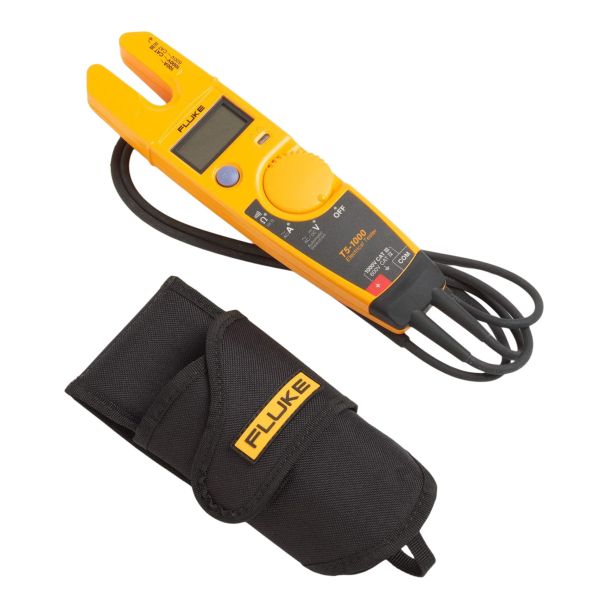

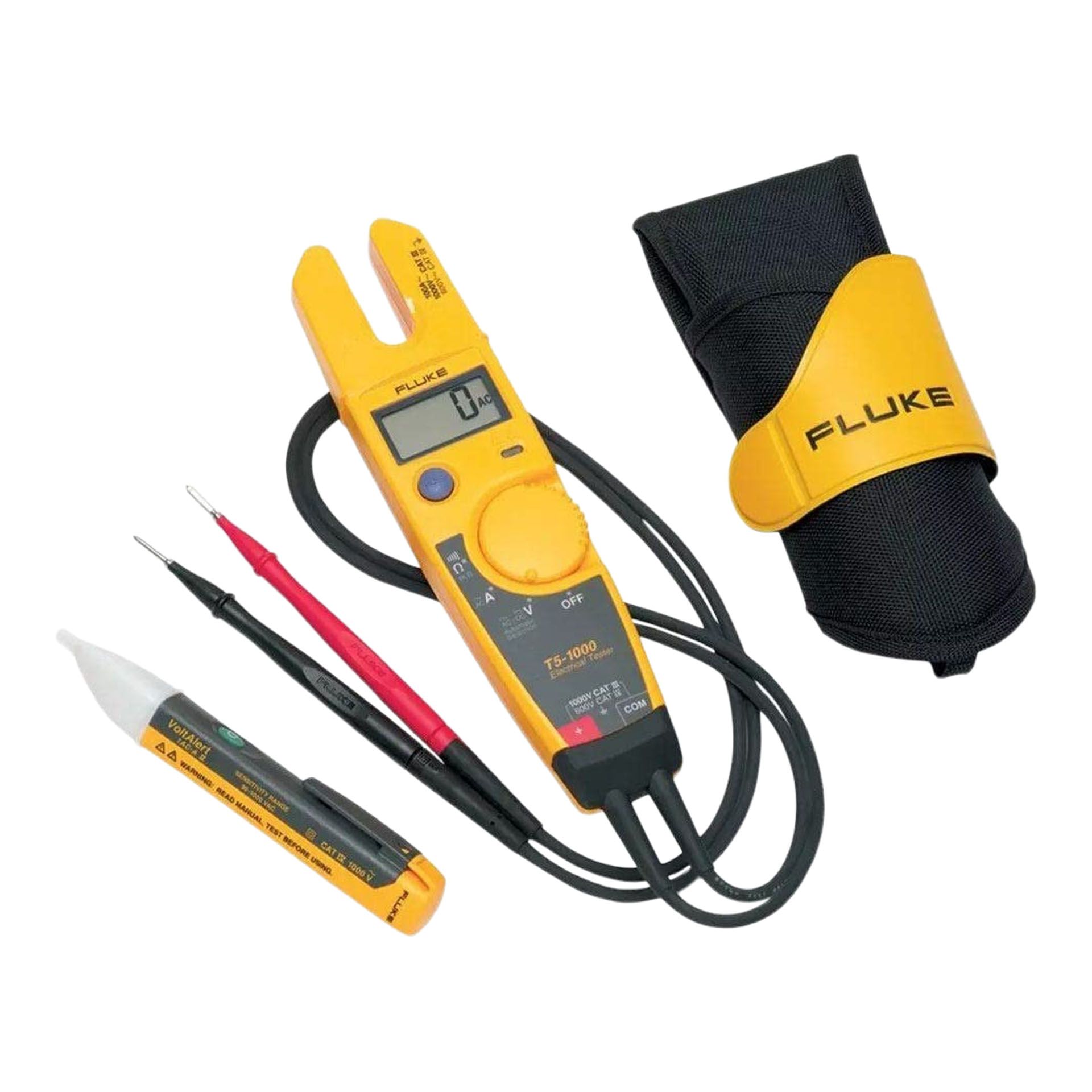

Fluke T5-1000 Electrical Tester Kit with Holster and 1AC II Voltage Tester
